In the fields of industrial combustion, clean heating, and commercial catering, a profound transformation towards automation and clean energy is accelerating. Traditional ignition methods are being replaced by more reliable, efficient, and safer high-voltage ignition solutions. Whether it is the automatic ignition of large industrial boilers or the instant start-up of domestic wall-mounted boilers, both rely on a key component – The High Voltage Ignition Transformer. It converts low-voltage power into high-voltage pulses of tens of thousands of volts, generating a spark between the burner electrodes strong enough to ignite the fuel – the "first line of defense" for combustion equipment.
Industrial Combustion and Thermal Energy: The Core of Ensuring Efficient and Safe Combustion
In large-scale combustion equipment such as industrial boilers, tunnel kilns, and heat treatment furnaces, the ignition system needs to operate continuously for extended periods, withstanding high temperatures, vibration, and dusty environments. If ignition fails, it can lead to fuel accumulation and create a risk of deflagration. Additionally, the electrodes in industrial burners are typically exposed to high-temperature flames, requiring the transformer to provide sufficiently high voltage (typically 8kV or above) and energy to ensure reliable ignition.
SHINHOM HT Series: The Reliable Choice for Industrial Combustion Scenarios
- Metal housing design: High mechanical strength, vibration and impact resistant, suitable for harsh industrial environments with high temperature and dust
- Excellent heat dissipation: Supports high-power, continuous operation modes, meeting the long-term operation requirements of industrial boilers and tunnel kilns
- HTS-8B (for gas): ≥8kV output voltage, ≥20mA output current, single-pole output, suitable for natural gas industrial burners
- HTS-10A (for oil): Dual-pole output (2×5kV), 20mA output current, 6mm ignition gap, ensuring reliable ignition for heavy oil or mixed fuels
Key selection criteria: Choose single-pole (discharge to ground) for gas, and dual-pole (discharge between electrodes) for oil. Correct selection directly impacts production safety and operational efficiency.
Commercial and Domestic Heating: Meeting Energy Efficiency and Safety Standards
Commercial kitchen equipment (such as gas stoves, fryers, and ovens) and domestic wall-mounted boilers are among the most widely used application areas for high-voltage ignition transformers. These devices have extremely limited internal space and are operated directly by end users, placing strict requirements on ignition transformers in terms of insulation performance, flame retardant rating, long service life, and compact design.
SHINHOM HTS Series: Lightweight Solutions for Commercial and Domestic Gas Appliances
- Plastic housing: Lightweight design with excellent insulation performance, specifically developed for small burners and gas appliances
- HTS-7: 1×7kV single-pole or 2×4kV dual-pole output, ignition gap 3-4mm, suitable for small burners and domestic gas appliances
- HTS-8B: ≥8kV single-pole output, ignition gap 3-5mm, meeting the needs of higher-power commercial gas stoves
- Operating mode: Typically intermittent operation (33% ignition efficiency). For continuous ignition (e.g., industrial kilns), choose the HT series with the "L" suffix for continuous operation models
- 12V DC igniter (reference): Some commercial oven products use epoxy potting to improve service life and stability, suitable for more demanding environments
Emerging Mobile Applications: Flexible Solutions with 12V/24V DC Power Supply
In mobile applications such as parking heaters, vehicle fuel heaters, and portable combustion equipment, devices rely on vehicle battery power (12V or 24V DC). These applications require transformers that are small, lightweight, and capable of withstanding vibration and shock during vehicle operation. The high-voltage ignition transformer market is seeing a growing demand for lightweight, compact designs suitable for electric and hybrid propulsion systems.

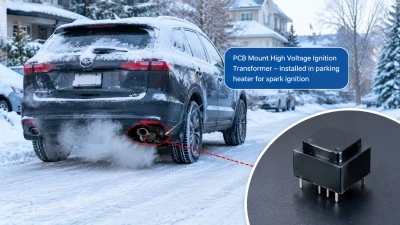

SHINHOM Electronic High-Voltage Ignition Transformer: Compact Solutions for Mobile and Vehicle Applications
- 12V/24V DC input: Powered directly from the vehicle battery without the need for an inverter, suitable for vehicle power supply environments
- Epoxy resin potting structure: Compact design with strong vibration resistance, suitable for direct PCB mounting
- Output voltage 4kV-7kV: Meets the ignition requirements of parking heaters, diesel air heaters, and similar devices
- Reference model (YJD-210) : Supports DC12/24V input, output 2×6KV or 1×12KV, used for oil/gas heaters and kitchen equipment ignition
- Low power consumption advantage: Power consumption is only 1/20 of traditional glow plug ignition structures, significantly reducing the load on the vehicle battery
Single-Pole VS. Dual-Pole Output Selection Guide
| Output Type | Working Principle | Suitable Fuel | Typical Applications |
|---|---|---|---|
| Single-Pole Output | High-voltage electrode discharges to combustion chamber wall | Gas (natural gas, LPG) | Gas boilers, domestic gas stoves, wall-mounted boilers |
| Dual-Pole Output | Direct discharge between two electrodes, no ground required | Fuel oil (diesel, heavy oil) | Oil-fired boilers, industrial burners, heaters |
Summary: SHINHOM – Your Trusted Partner
As industrial automation and clean energy trends continue to deepen, the reliability and performance of high-voltage ignition transformers – as key actuating components of combustion equipment – are of critical importance. With its diverse product series including HTS, HT, PCB Mount, and electronic types, SHINHOM can precisely address the varying needs of industrial combustion, commercial heating, and emerging mobile applications. From 15kV high-voltage output to 12V DC input, from robust metal housings to compact PCB-mount designs, SHINHOM delivers reliable and efficient solutions to ensure the safe and stable operation of customer equipment.
For selection recommendations tailored to your specific application scenario (fuel type, power supply conditions, installation space), please feel free to contact our technical team.
