Transformer| High-Frequency, Gate Drive & Planar Types
SHINHOM manufactures a comprehensive range of transformers, including high-frequency, gate drive, planar, pulse, and audio types, designed for power conversion, signal isolation, and impedance matching. Our transformers deliver high efficiency, low leakage inductance, and reliable performance for applications in switching power supplies, automotive electronics, telecom, and industrial equipment. With 39+ years of expertise and ISO 9001 & IATF 16949 certifications, we provide customized solutions for your specific requirements.
Why Trust SHINHOM?
28+ Years Experience
ISO 9001, IATF 16949, UL Certified
High Efficiency & Low Leakage Inductance
Customized Designs Available
our products advantages
High Efficiency at High Frequencies
Optimized ferrite cores and precise winding reduce eddy current and core losses, improving energy transfer
Low Leakage Inductance
Tighter magnetic coupling, especially in planar designs, minimizes voltage spikes and reduces the need for snubber circuits
Excellent Thermal Performance
Enhanced heat dissipation and temperature-stable materials ensure reliable operation under continuous load, with operating temperatures up to +130°C
High Isolation & Safety
Reinforced insulation systems meet UL and IEC safety standards, with isolation voltages up to 4000Vrms for gate drive applications
Applications
Our transformers are widely used across multiple industries
Power Electronics
Switching power supplies, DC-DC converters, inverters, EV charging
Automotive
Onboard chargers (OBC), infotainment, ADAS systems, gate drive circuits
Consumer Electronics
Fast chargers, audio equipment, home appliances, LED lighting
Telecommunications
Base stations, 5G infrastructure, network equipment, RF front-ends
Your Trusted Partner: Our Service Commitment
Pre-Sales Service
Technical consultation to select optimal transformers; sample provision for testing; OEM/ODM design for custom parameters; flexible pricing.
In-Sales Service
Strict quality control (IQC, IPQC, FQC); customized packaging; logistics solutions; real-time updates on production status.
After-Sales Service
Technical support for application issues; quality guarantee and traceability; rapid response to feedback and claims.
FAQ
Q: What is the difference between a high-frequency transformer and a pulse transformer?
+
-
A: A high-frequency transformer is primarily used for power transmission and voltage conversion at frequencies from several kHz to several MHz. A pulse transformer is specialized for generating high-voltage pulses or processing pulse signals, with fast transient response and high insulation.
Q: What are the advantages of using a planar transformer over a traditional wire-wound transformer?
+
-
A: Planar transformers offer lower leakage inductance (~0.2%), better thermal dissipation, higher power density, and greater manufacturing consistency. They are also much thinner (profile <12mm), making them ideal for space-constrained applications like GaN chargers and automotive OBCs .

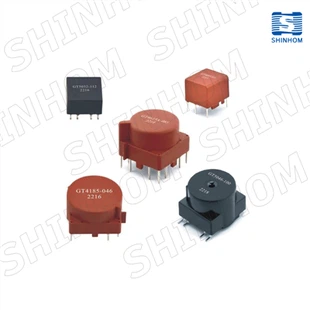

Q: How do I select the right gate drive transformer for my IGBT or MOSFET?
+
-
A: The primary selection criterion is the volt-time product (V-µsec) rating, which must be greater than or equal to the highest voltage-time product expected in your application. Also consider turns ratio, isolation voltage, and package type (SMD or THT) .
Q: What is the typical lead time for transformer orders?
+
-
A: Standard lead time is typically 2-8 weeks for bulk orders, depending on the model and quantity. Custom designs may require additional time for engineering and sampling. Expedited production is available for urgent projects.
The Most Professional Power Inductor Manufacturer
Bring us your power inductor needs
As one of the leading transformer manufacturers and suppliers in China, we warmly welcome you to buy high-grade transformer for sale here from our factory. All customized products are with high quality and competitive price.
High Power Planar Transformer, Gate Drive Transformer, LAN Transformers
