Leaded Inductor

Leaded Inductor

1.Low cost;

2.High power,High saturation ,Low resistance;

3.Unshielded power inductor;

4.Core is encapsulated by UL heat shrink tube to provide excellent mechanic and environmental protection;

5.Various package size and wide inductance range;

6.Tape packaging for auto-insertion;

7.RoHS, Halogen Free and REACH Compliance;

8.Operating temperature: -55℃ to +125℃.

Leaded-INductor_.pdf
Product Introduction

Leaded inductor have low cost, large volume, wide range of inductors and complete types. It is suitable for products with large size of built-in circuit board. For example: stereo, household appliances, car DVD and so on

Classification of lead inductors: color ring inductors, H - font inductors, three - pin inductors, horizontal inductors, common mode inductors, toroidal inductors.



1.Color ring inductors, commonly used as memory elements, are connected in parallel with electrolytic capacitors to form LC tuned circuits. The basic working principle is charging, discharging, rectifying or oscillating, with tuning and frequency selection.



2.Font inductor, generally used for circuit matching and signal quality control, connected with the power supply, choke, transformer, filtering, resonance and other functions.



3.Toroidal inductance, generally used in DC/DC step-down circuit, LC resonant circuit, or with the capacitor to form LC filter circuit, has the role of electromagnetic induction conversion.



Product families 1. AIRD 2. HQ 3. LCH 4. LCHA
5. LCHB 6. LGA 7. LGB-C 8. LGS
9. LTM 10. RC 11. AIFC 12.HM



1.AIRD Family

Through-Hole Radial High Current Power Chokes



FEATURES:product-800-800

  • Low profile power inductorLow DCR leaded power inductor
  • Operating temperature: -20 to 85 degree Celsius (contain heating coil)
  • Appearance inspection: no external defect by visual inspection
  • Heat endurance of re-flow soldering: 240Insulating resistance: over 100M ohms at 100V DC between wire and core
  • Dielectric strength: no dielectric breakdown at 100V DC for one minute between wire and core
  • Temperature characteristic: inductance coefficient (0 to 2,000) x 10-6/(-25 to +80) inductance deviation within ±5.0%, after 96 hours
  • Humidity characteristic: in 90 to 95% relative humidity at 40 ±2 and one hour drying under normal condition
  • Inductance deviation within ±5.0% after vibration for one hour
  • Vibration resistance: in each of three orientations at sweep vibration(10-55-10Hz) with 1.5mm p-p amplitude



APPLICATIONS:

  • Switching power output and smoothing circuits
  • Used as choke coil for high frequency SMPs
  • Countermeasure against spike ripples
  • DC/DC converters
  • IP and OP devices



Series in this family



Product Series L(µH) DCR Max(Ω) IDC Max(A) PDF
AIRD 01 1.0-560 0.003-0.696 0.8-9.0 ✉
AIRD 02 1.0-2200 0.003-1.54 0.8-11.4 ✉
AIRD 03 1.0-4700 0.003-1.86 1.0-21.0 ✉
AIRD 04 1.8-15000 0.002-3.39 1.3-27.0 ✉
AIRD04A 2.2-3900 0.0028-1.38 1.4-28.2 ✉
AIRD05 1.8-15000 0.002-2.17 2.0-3.5 ✉
AIRD06 4.7-47000 0.002-6.19 1.4-35 ✉
AIRD06A 2.2-10000 0.0021-2.75 1.4-34.7 ✉
AIRD07A 1.0-6800 0.0018-1.854 1.5-44 ✉
AIRD08 5.6-100000 0.0021-6.652 1.4-55 ✉



2.HQ Family

High Current Power Inductors



FEATURES:product-800-800

  • Size: 15.5mm x 11mm x 8mm
  • Current Rating:up to 50Apk
  • Inductance Range: 0.14μH to 2.25μH
  • Handles high transient current spikes without saturation
  • Ultra low buzz noise, due to composite construction
  • Compliant to RoHS directive 2002/95/EC
  • Operating Temperature & Storage Temperature: -40℃ - +125℃



APPLCATIONS:

  • PDA/notebook/desktop/server applications
  • High current POL converters
  • Low profile, high current power supplies
  • Battery powered devices
  • DC/DC converters in distributed power systems
  • DC/DC converter for Field Programmable Gate Array (FPGA)



Series in this family



Product Series Inductance L0(µH)±15% 0Adc Heat rating current DC(A) Saturation current DC(A) DCR Max(mΩ) PDF
HQ1009 0.14-0.31 40 35-80 0.49±5% ✉
HQ1108 0.15-2.5 14-38.7 16-50 0.8-5.5 ✉





3.LCH Family

Through-Hole Radial Power Chokes



FEATURES:product-800-800

  • Axial and radial leaded power inductor
  • UL-polyolefin shrinking tubing
  • Leaded inductor with ferrite core
  • High-current,High-reliability
  • Low-resistance,AC line filters
  • Radial choke inductors
  • Shielded radial choke
  • Wide band chokes
  • Axial lead fixed inductors
  • Available in small, medium and large quantities
  • Ambient temperature -40℃ to +85℃ with (40℃ rise) Irms current.
  • Maximum part temperature +125°C (ambient + temp rise).
  • Storage temperature Component: -40℃ to +125℃.
  • Tray or tape packaging: -40℃ to +80℃



APPLICATIONS:

  • Signal filtering,EMI and power supply filter
  • DC/DC converters/switching power supplies for small and medium voltage
  • Power supply for LED



Series in this family



Product Series Marking Inductance L(µH) DCR(Ω) IDC(A) PDF
LCH0605 102-220 22-1000 0.18-7.06 0.13-0.90 ✉
LCH0606 102-220 22-1000 0.11-4.45 0.19-1.27 ✉
LCH0805 100-822 10-10000 0.07-55.7 0.081-2.50 ✉
LCH0807 100-822 10-10000 0.05-33.0 0.084-2.90 ✉
LCH0809 100-822 10-47000 0.04-96.4 0.038-2.60 ✉
LCH1010 - 68-18000 0.115-25 - ✉
LCH1006-4W - 2.2-1000 0.0085-2.1 0.45-7.9 ✉





4.LCHA Family

Through-hole Axial Ul Tube Power Chokes



FEATURES:

  • Wire-wound Constructionproduct-800-800
  • Polyolefin Shrink Tubing
  • Excellent Environmental Characteristics
  • High Reliability
  • High Inductance and Lower RDC
  • Axial and radial leaded power inductor
  • UL polyolefin shrinking tube
  • Leaded inductor with ferrite core
  • High-current
  • High-reliability
  • Low-resistance
  • Radial choke inductors
  • Axial lead fixed inductors
  • Operating temperature: -55℃ to +125℃



APPLICATIONS:

  • Output smoothly in Power Supply;
  • Chopper Control;
  • Output smoothly(LPF) in large current digital amplifier
  • Switching Mode Power Supply output smoothing circuit;
  • Electromagnetic Interference(EMI) and Radio Frequency Interference(RFI) filers
  • Other oscillation circuits
  • Power Supplies
  • SCR and TRIAC Controls
  • RFI Suppression
  • Filters
  • Switching Regulators



Series in this family



Product Series L(µH) DCR Max(Ω) Isat Max(A) IDC Max(A) PDF
LCHA0410 3.9-10000 0.06-75.0 52-1800 30-1500 ✉
LCHA0617 3.9-18000 0.019-48.3 0.091-7.3 0.039-1.7 ✉
LCHA1122 3.9-100000 0.007-89.7 0.081-15.5 0.065-4.0 ✉
LCHA1425 3.9-150000 0.007-84.3 0.06-47.0 0.070-6.0 ✉



5.LCHB Family

Through-Hole Radial UL Tube Power Chokes



FEATURES:product-800-800

  • Wire-wound Construction
  • Excellent Environmental Characteristics
  • High Reliability
  • High Inductance and Lower RDC
  • Operating temperature: -55℃ to +125℃
  • Shrink tube: Flame retardant UL type VW-1



APPLICATIONS:

  • Power Supplies, battery Charger, inverter , Convertor
  • EV car, Automotive
  • Home Application
  • Medical
  • Access Control
  • IT Equipment
  • CCTV Security
  • LED Lighting



Series in this family



Product Series L(µH) DCR(Ω) IDC (mA) PDF
LCHB0406 1.0-25000 0.035-180 20-2000 ✉
LCHB0608 3.3-150000 0.016-520 16-3500 ✉
LCHB0707 1.0-1500 0.006-5.0 160-5000 ✉
LCHB0806 22-1000 0.11-4.45 190-1270 ✉
LCHB0807 2.2-1500 0.011-3.5 180-4000 ✉
LCHB0810 3.3-100000 0.012-180 28-5000 ✉
LCHB0912 10-1000 0.027-2.1 450-4500 ✉
LCHB1010 3.3-15000 0.01-24 120-5900 ✉
LCHB1012 10-1000 0.022-1.7 560-5300 ✉
LCHB1016 10-47000 0.031-56 95-5000 ✉
LCHB1018 4.7-100000 0.008-89.7 60-6000 ✉
LCHB1213 10-10000 0.023-10 240-5100 ✉
LCHB1415 10-47000 0.015-27 150-5000 ✉

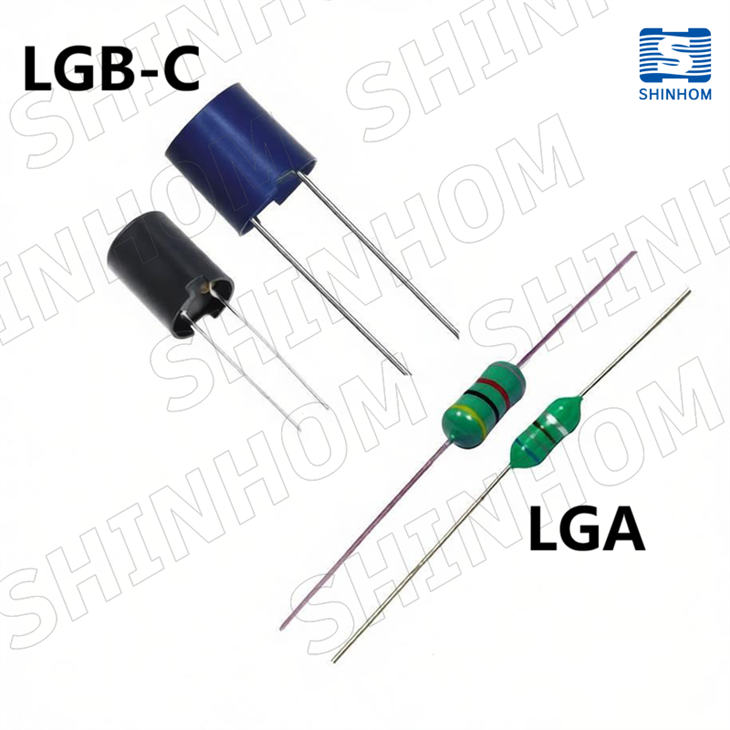

6. LGA Family

Through-Hole Axial Conformal Coated Inductors



FEATURES:product-800-800

  • Compact design, small and lightweight
  • Contribute to high Q and self-resonant frequencies
  • Coating: epoxy resin ensures humidity resistance for long life
  • Taping type is convenient for automatic equipment
  • Operating temperature: -25℃ to +105℃
  • Storage Temperature: -40℃ to +85℃



APPLICATIONS:

  • Consumer electronics such as VCRs, TVs, audio equipment
  • Mobile communications
  • Portable communication equipment
  • Notebook computers
  • DC/DC converters,etc.
  • LCD television





Series in this family



Product Series L(µH) Tolerance(%) Q Min L Test Freq(MHz) S.R.F(MHz) DCR(Ω) IDC (mA) PDF
LGA0204 0.22-220 10-20 35-40 0.796-25.2 3.5-150 0.4-38 24-400 ✉
LGA0305 0.22-270 10-20 35-50 0.796-25.2 2.8-150 0.4-19 65-400 ✉
LGA0307 0.22-1000 10 35-50 0.796-25.2 1.4-150 0.4-33 40-400 ✉
LGA0410 0.22-1000 10-20 30-80 0.796-25.2 1.4-300 0.1-14 100-1400 ✉
LGA0510 470-10000 10 20-60 0.252-0.796 0.35-1.9 7.7-105 25-126 ✉
LGA0512 1.0-33000 - 10-40 0.0796-7.96 0.2-300 0.022-250 8-3800 ✉
LGA0514 1.0-10000 - 10-35 0.0796-7.96 0.4-300 0.022-42 60-3800 ✉
LGA0612 470-10000 10 40-50 0.252-0.796 0.3-2.0 1.9-45.3 60-340 ✉





7.LGB-C Family

Through-Hole Radial Encapsulated Power Inductor



FEATURES:product-800-800

  • Plastic housing
  • Water proof structure Ferrite Core
  • Excellent Mechanical Strength
  • Excellent Solderability
  • High Reliability
  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +105℃



APPLICATIONS:

  • VCRs, PDP, LCD, TV set
  • Automotive Systems
  • Computer Peripheral Equipment
  • GPS, DC/DC convertor, XDSL Modem
  • Electronic Games
  • Communications Equipment
  • General Electronic Applications



Series in this family



Product Series L(µH) Test Freq(KHz) DCR Max(Ω) IDC Max(A) PDF
LGB0709C 1.0-1500 1 0.006-5 0.16-5 ✉
LGB0809C 2.2-1500 1 0.011-3.5 0.21-4 ✉
LGB0810C 22-2000 - 0.05-3.2 0.23-1.3 ✉
LGB1012C 22-2000 - 0.031-1.82 0.39-2.2 ✉
LGB1015C 22-2000 - 0.03-1.90 0.39-2.26 ✉
LGB1112C 3.3-15000 1 0.01-24 0.12-5.9 ✉
LGB1315C 10-100000 1 0.023-10 0..24-5.1 ✉





8.LGS Family

DIP Shielded Power Inductors





FEATURES:product-800-800

  • There is a magnetic shield on the outside of the shielded inductor,
  • which has good anti-EMI effect, reduces the electromagnetic
  • interference of the inductor to the outside world, and weakens
  • the interference effect of the electromagnetic field generated by
  • the circuit on other components.
  • Magnetically shielded construction power inductor
  • Heat-resistant molded resin power inductor
  • Shielded power inductor with low DCR and large current
  • Operating temperature range: -40 ~ 125 ℃



APPLICATIONS:

  • VCRs, AC/DC DC/DC converters
  • Video cameras
  • Communication systems
  • Automotive systems
  • Liquid crystal televisions
  • Power suppliers
  • Network systems
  • Computer peripheral equipment



Series in this family



Product Series L(µH) DCR Max(mΩ) IDC Max(A) Allowable Current Max (A) PDF
LGS1213B 10-47 30-100 4.5-10 4.0-8.0 ✉
LGS1218B 10-47 30-100 4.5-10 5.0-10 ✉
LGS1619 10-47 8.5-30 3.5-10 7-12 ✉
LGS1622 10-47 10-30 5-12 8-11 ✉
LGS1622B 10-47 20-55 8-15 6-9 ✉





9.LTM Family

Molded Unshielded RF  Coils



FFEATURES:product-800-800

  • Wire-wound construction
  • High reliability
  • Axial lead fixed inductors
  • Moulded polypropylene
  • Working temperature: -55℃ to +85℃
  • 0~0.68uH: Thermoset plastic core
  • 0.68~1000uH: Ferrite core



APPLICATIONS:

  • VCRs, AC/DC DC/DC converters
  • Video cameras
  • Communication systems
  • Automotive systems
  • Liquid crystal televisions
  • Power suppliers
  • Network systems
  • Computer peripheral equipment



Series in this family



Product Series L(µH) S.R.F(MHz) DCR Max(Ω) IDC Max(mA) PDF
LTM0409 0.1-4.7 5.9-525 0.52-14.5 115-2740 ✉
LTM0511 0.1-1000 3.0-400 0.025-30 100-3000 ✉

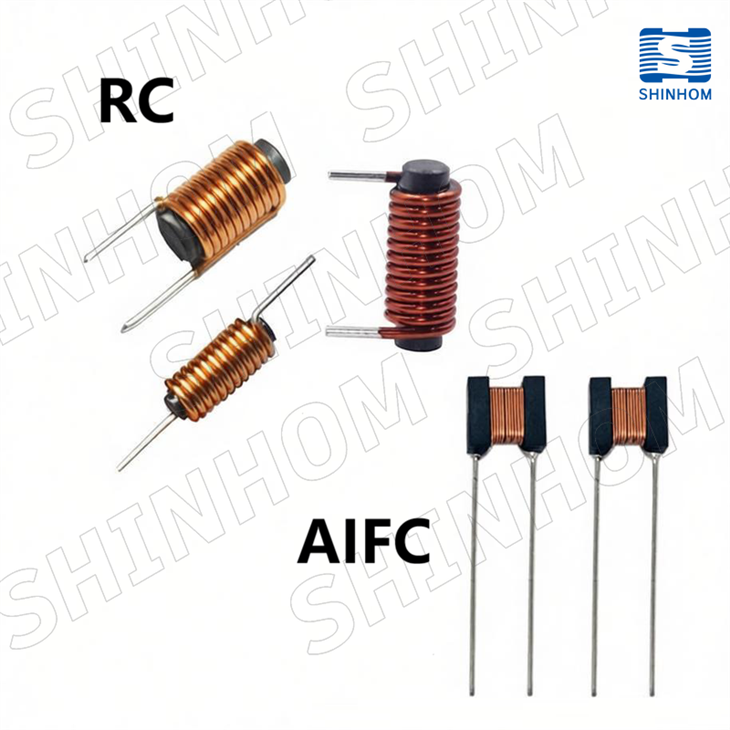

10.RC Family

Through-Hole High Current Radial Rod Chokes



FEATURES:​​​​​​​product-800-800

  • High Saturation Material
  • Polyolefin Shrink Tubing
  • Low DC Resistance
  • High Reliability Low cost
  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +105℃



APPLICATIONS:

  • Switching Regulators
  • RFI Suppression Filters
  • SCR and TRIAC Controls
  • Automotive Systems









Series in this family



Product Series L(µH) S.R.F(MHz) DCR Max(Ω) IDC Max(A) PDF
RC0205 1.0-1.2 180-200 0.04 0.56 ✉
RC0310 1.8-4.7 90-160 0.026-0.07 0.76-1.90 ✉
RC0415 4.7-10 70-90 0.024-0.08 1.0-2.26 ✉
RC0520 10-27 36-60 0.04-0.15 1.0-2.65 ✉
RC0630 4.7-56 30-85 0.005-0.14 1.57-16.08 ✉





11.AIFC Family

Mini-inductorshigh"Q"flat Coils



FEATURES:product-800-800

  • Ferrite Core
  • Wire-wound construction
  • Narrow Design for densely mount
  • High reliability,Ideal for automatic insertion
  • Small Size ,Low Cost
  • Wide Range of Inductance Values
  • High Q SRF



APPLICATIONS:

  • VCRs, PDP, LCD, TV set
  • Automotive Systems
  • Computer Peripheral Equipment
  • GPS,DC/DC convertor, XDSL Modem
  • Electronic Games
  • Communications Equipment
  • General Electronic Applications



Series in this family



Product Series L(µH) Frequency(MHz) DCR Max(Ω) IDC Max(A) PDF
AIFC1008 1.0-4700 0.25-7.9 0.01-29.9 0.11-7.0 ✉
AIFC1010 1.0-10000 0.252-7.96 0.015-70 0.07-7.0 ✉





 12.HM Family



FEATURES: product-800-800

  • High current rating
  • Hing frequency range up to 1.0MHZ
  • Very low DC resistance
  • Shielded construction
  • All series of product are Halogen-free and ROHS compliant
  • Molding Type Power Inductor
  • Operating Temperature: -40℃ - +125℃
  • Storage Temperature-40℃ - +125℃





APPLICATIONS:

  • Motherboards for laptop and desktop computers
  • DC/DC converter in distributed power systems or VRM applications
  • Inductor for general purpose use





Series in this family



Product Series L(0A) DCR Max(mΩ) lsat Typ(A) PDF
HM0808A 0.1-4.7 0.52-14.5 12.0-50.0 ✉
HM0808B 0.27-4.7 1.2-14.5 12.0-40.0 ✉
HM1009A/1211A 10-33 13-60 5.5-14 ✉
HM1010B 0.15-2.2 0.6-4.0 30.0-60.0 ✉
HM1109B 0.25-2.2 0.72-4.0 21.0-50.0 ✉
HM1111B 0.25-3.3 0.6-7.2 25.0-60.0 ✉
HM1210A 0.22-8.2 0.6-14.0 10.0-56.0 ✉
HM1312B 0.22-2.2 0.5-3.2 35.0-60.0 ✉
HM1315A 0.33-47.0 0.7-56.0 8.0-60.0 ✉
HM1616A 22-100 15-48 10-16 ✉
HM1818A 3.3-33 3.0-21.0 12-30 ✉
HM2222A/2828A/3333A 33-250 7.8-65 7-38 ✉



Shinhom is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Leaded inductor products.

Hot Tags: leaded inductor, China leaded inductor manufacturers, suppliers, factory, Power Bead Inductor, Shielding Inductor, Class D Inductor, Ferrite Bead Inductor, Leaded Inductor, SMD Inductor

Send Inquiry

You Might Also Like

whatsapp

Phone

E-mail

Inquiry

Bag
