SMD Inductor

SMD Inductor

1.High rated current;

2.Low DC resistance;

3.Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D;

4.Qualified to AEC-Q200;

5.RoHS-compatible;

6.Operating temperature: -55℃ to +125℃.

SHINHOM-smd-inductor-LPA.pdf
Product Introduction

SMD inductors, also known as surface mount power inductors, are electronic components used to store and release energy in electrical circuits. They are designed to handle high currents and have low resistance to minimize power losses.

These inductors consist of a coil of wire wound around a magnetic core, which is typically made of ferrite material. The coil generates a magnetic field when current flows through it, and this stored energy can then be released when the current changes or is interrupted.

SMD power inductors are commonly used in various applications, including power supplies, DC-DC converters, voltage regulators, and filtering circuits. They help smooth out fluctuations in current and voltage, reduce electromagnetic interference (EMI), and improve overall circuit efficiency.

The "SMD" in SMD power inductor stands for Surface Mount Device, indicating that they are designed for surface mount technology (SMT) assembly on printed circuit boards (PCBs). This allows for automated and mass production processes, making them suitable for high-volume manufacturing.

When selecting an SMD power inductor, important specifications to consider include inductance value, current rating, DC resistance, and temperature rating. These parameters determine the inductor's performance and suitability for specific applications.

Overall, SMD power inductors play a crucial role in electronic circuits by providing energy storage, filtering, and noise suppression functions, contributing to the efficient and reliable operation of various electronic devices.

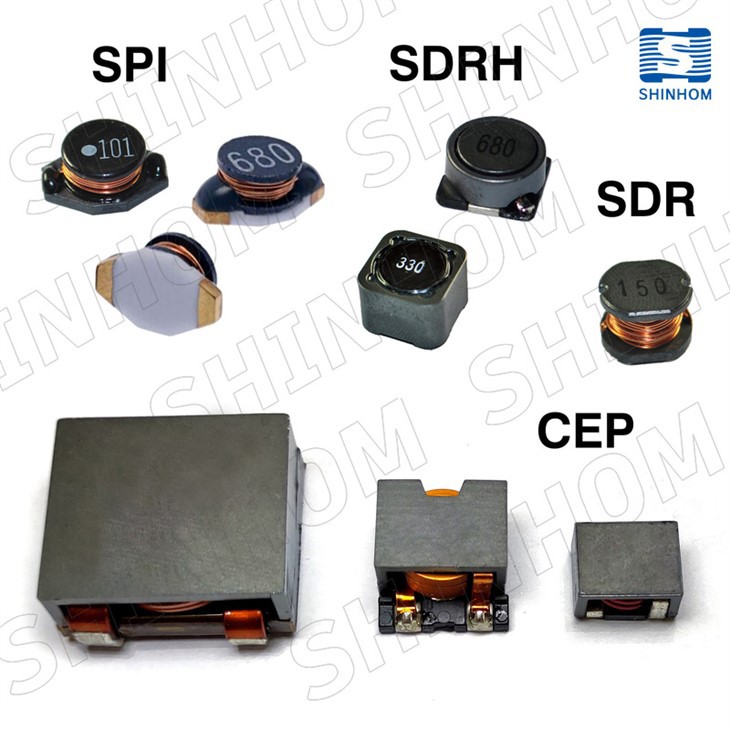

Product families

Product families Inductance(µH) IDC(A) Length (mm) Width (mm) Height (mm) PDF
1. AIML-C 0.1-470 50-900(mA) 0.6-2.0 0.3-1.2 0.3-0.9 ✉
2. AIML 0.047-120 1-1200(mA) 1.0-4.5 0.5-3.2 0.5-1.6 ✉
3. AISC 0.01-10000 30-10000(mA) 0.66-2.9 0.6-2.25 1.19-3.5 ✉
4. AISC-F 1.0-4700 20-1000(mA) 1.1-3.4 0.95-3.15

1.78-4.8

 ✉
5. AISM 0.01-10000 25-1800(mA) 2.5-5.6 1.8-5.0 2.0-5.0 ✉
6. B60/80 1.0-1500 0.075-8.6 13.2 6.0 6.0 ✉
7. CEP 0.5-47 4.0-36.5 11.2-22.3 10.5-21.5 5.2-12.0 ✉
8. HCB 22-680 13-77 4.0-14.5 4.0-13.3 3.0-9.5 ✉
9. LPA 0.13-47 3.5-41.5 7.0-18.3 7.0-18.3 3.1-9.2 ✉
10. LPM 0.047-400 0.32-80 2.5-22.5 2.5-22.5 1.0-12.7 ✉
11. LPS 0.47-20000 0.17-6.3 2.5-45 2.5-20 1.0-20 ✉
12. LQH 0.12-10000 0.05-6.0 2.5-5.7 2.0-5.0 1.8-4.7 ✉
13. LQH-S 0.27-10000 0.02-6 3.5-6.3 3.5-6.3 2.4-4.7 ✉
14. SB 1.5-15000 0.07-5.6 10.5 9.05 6.0-7.5 ✉
15. SDR 1.0-1200 0.10-10.0

3.0-13

 3.5-13 1.6-7.0 ✉
16. SDRH 1.0-6800 0.038-11.6 3.2-15.5 3.2-15.5 1.2-14.2 ✉
17. SDRS 10-820 0.33-2.65 6.2-12.6 5.6-11.6 3.2-5.4 ✉
18. SDR-T 1.0-1000 0.15-7.2 7.2-12.7 7.2-12.7 3.0-8.5 ✉
19. SPI 0.47-1000 0.1-51.7 6.6-22.1 4.45-16.0 2.92-11.43 ✉
20. SPI-S 1.0-10000 0.02-5.0 6.6-18.54 4.45-15.24 2.7-7.62 ✉
21. SMB - 14-65 8.0-10.0 8.0-10.0 9.5-10.0 ✉
22.SPQ 1.5-33 3-100 25-27.9 19.8-28.0 15.36-21.0 ✉



1. AIML-C Family

Surface-mount Multi-layer Ceramic Chip Inductors



Suitable for high-frequency applications, AIML-C series has a tight tolerance in physical dimensions, a tight inductance tolerance,excellent Q and a guaranteed SRF range. The AIML-C series features a ceramic integrated structure, resulting in high product quality and outstanding reliability. All parts are lead-free and comply with RoHS standards. The AIML-C series has an operating temperature of -40ºC to +85ºC. Also, the surface mounting applicability supports reflow soldering conditions without sacrificing any frequency characteristics.



FEATURES:product-800-800

  • Standard EIA sizes
  • Operating temperature -40ºC to +85ºC
  • Lead-Free RoHS Compliant
  • Tight Tolerance in Physical Dimensions
  • Surface Mounting Applicability
  • Tight Inductance Tolerance, Excellent Q & Guaranteed SRF Range
  • High Product Quality & Outstanding
  • Reliability





APPLICATIONS:

  • Mobile communications
  • WLAN
  • EMI Counter measure in High Frequency Circuits
  • Computer Communication



Series in this family



Product Series Inductance(µH) IDC(mA) Length (mm) Width (mm) Height (mm) PDF
AIML0201C 0.6-120 50-600 0.6 0.3 0.3 ✉
AIML0201CA 0.6-22 190-900 0.6 0.3 0.3 ✉
AIML0201CB 0.1-22 190-900 0.6 0.3 0.3 ✉
AIML0201CC 1.0-100 60-470 0.6 0.3 0.3 ✉
AIML0402C 1.0-220 100-400 1.0 0.5 0.5 ✉
AIML0402CA 1.0-15 280-710 1.0 0.5 0.5 ✉
AIML0402CC 1.0-68 100-400 1.0 0.5 0.5 ✉
AIML0402CD 1.0-82 150-400 1.0 0.5 0.5 ✉
AIML0402CE 1.0-15 300-400 1.0 0.5 0.5 ✉
AIML0603C 1.0-470 150-500 1.6 0.8 0.8 ✉
AIML0603CE 1.0-82 300-600 1.6 0.8 0.8 ✉
AIML0805C 1.5-470 300-600 2.0 1.2 0.9 ✉



2. AIML Family

Surface mount multi layer chip inductor,

Ceramic and ferrite materials are optional



FEATURES:product-800-800

  • Advanced thin film technology
  • Small size, no lead is suitable for high-density surface mount
  • Low resistance value of the highB
  • Excellent solderability and heat shock
  • Suitable for wave soldering and reflow soldering
  • Enamel-coated glass and high precision, small resistance drift
  • Environmentally friendly products



APPLCATIONS:

  • Medical Equipment
  • Testing/Measurement Equipment
  • Printer Equipment
  • Automatic Equipment Controller
  • Converters
  • Communication Device, Cell phone ,GPS ,PDA
  • Personal Computers
  • Portable Equipment
  • CD-ROM, Hard Disk, Modem, Printers
  • DC - DC converters
  • DSC, DVC, PDA, DVD and HDD



Technical Information:

  • Solderability:90% of the terminal Electrode shall be covered Preheat:@ 260℃±5℃ for 160 seconds Solder:H63AA Eutectic Solder Flux:Rosin,Dip for 5 seconds ±1 second
  • Thermal Shock: lnductance shall be Within±5% of imitial value and Q shall be within ±30% of initial value When temperaturs is -40℃ and +85℃ for 30 Min.
  • Operating Temperature:-25℃ to +85℃
  • Storage Temperature: -40℃ to +85℃



Series in this family



Product Series Inductance(µH) IDC(mA) Length (mm) Width (mm) Height (mm) PDF
AIML0402 0.047-1.2 15-25 1.0 0.5 0.5 ✉
AIML0603 0.047-22 1-50 1.6 0.8 0.8 ✉
AIML0603H 0.047-12 60-150 1.6 0.8 0.8 ✉
AIML0805 0.047-47 5-300 2.0 1.2 0.9-1.2 ✉
AIML0805H 0.047-22 50-350 2.0 1.2 0.9 ✉
AIML0805UH 0.047-15 100-1100 2.0 1.2 0.9 ✉
AIML1206 0.047-100 5-300 3.2 1.6 0.9-1.1 ✉
AIML1206H 0.047-27 50-450 3.2 1.6 0.9 ✉
AIML1206UH 1.0-18 100-1200 3.2 1.6 0.9 ✉
AIML1210 1.0-120 150-600 3.2 2.5 1.3 ✉
AIML1806 1.0-10 250-500 4.5 1.6 1.6 ✉
AIML1812 1.0-120 150-650 4.5 3.2 1.5 ✉



3. AISC Family

4. AISC-F Family

SMD Wire Wound Chip Inductor For RF (Radio Frequency) Modules,

Ceramic and ferrite materials are optional



FEATURES:product-800-800

  • RoHS Compliant
  • Excellent SRF
  • These ultra – compact inductors provided exceptional Q values, even at high frequencies.
  • Excellent thermal stability
  • Operating temperature range from -40°C to 125°C. (Including self - temperature rise)



APPLICATIONS:

  • RF modules
  •  Cellular phone
  • GPS receiver
  • Base Station
  • Repeater
  • Wireless LAN/ Mouse/ Keyboard/ earphone
  • Remote contro
  • Security system
  • Telecom & wireless communication



NOTES:

  • Tolerance:G=±2%,J=±5%,K=±10%
  • Packaging: Clear tape and reel {standard}
  • L/Q: Agilent/HP4291A+ Agilent/HP16197A
  • SRF: Agilent/HP8753D / Agilent/HP4291A
  • RDC: CH502BC/HP4338B
  • Irms for a 15°C rise above 25°C ambient.
  • Operating temperature range from -40°C to 125°C. (Including self - temperature rise)



Series in this family

AISC Family

Product Series Inductance(µH) IDC(mA) Length (mm) Width (mm) Height (mm) PDF
AISC0402 1.0-120 30-1360 0.66 0.6 1.19 ✉
AISC0603 1.6-390 100-700 1.1 0.95 1.78 ✉
AISC0805 2.2-2200 150-800 1.7 1.52 2.3 ✉
AISC1008 3.9-10000 160-10000 2.79 2.1 2.92 ✉
AISC1210 3.9-10000 200-1000 2.9 2.25 3.5 ✉
AISC0402C 1.5-120 110-1000 1.0 0.5 0.5 ✉

AISC-F Family

Product Series DCR(Ω) IDC(mA) SRF(MHz) PDF
AISC0603F 0.13-4.0 210-1000 120-1150 ✉
AISC0805F 1.0-6.0 80-430 14-360 ✉
AISC1008F 0.55-18 20-580 2.5-300 ✉
AISC1206F 1.2-9.0 130-320 80-260 ✉
AISC1210F 0.3-28 30-450 1.5-220 ✉
AISC1812F 0.22-16.5 90-1000 1.4-200 ✉



5. AISM & AISM-C Family

Surface Mount Wound Chip Inductor

High Current Surface Mount Wound Molded Chip Inductors



FEATURES:product-800-800

  • Low Profile
  • High Reliability
  • Molded construction
  • Excellent Solderability
  • Heat Resistant Molded Resin
  • Excellent Mechanical Strength
  • Lead free are RoHS complaint
  • Sizes 1008 / 1210 / 1812 / 2220



APPLCATIONS:

  • VCRs
  • Video Cameras
  • Communication System
  • Automotive Systems
  • LCD/PDP Televisions
  • Hard Disk Drives
  • Network Systems
  • Computer Peripheral Equipment



TECHNICAL INFORMATION:

  • Testing: (Equivalent acceptable) lnductance:HP4285A,RDC:QuadTech 1880 Milliohmmeter,Q: HP4342A,SRF:HP4291A
  • IDC Max:Determined when superimposed DC current is decreased 10% against its initial value
  • Solder methods: Wave,Vapor Phase,Infrared
  • Resistance to soldering heat:260℃ for 10 seconds
  • Solvent resistance: Conforms to MIL-STD-202E
  • Marking: lnductance & Tolerance
  • Operating Temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +105℃

Series in this family

AISM Family

Product Series Inductance(µH) IDC(mA) Length (mm) Width (mm) Height (mm) PDF
AISM1008 0.01-100 60-530 2.5 1.8 2.0 ✉
AISM1210 0.1-220 50-450 3.2 2.2 2.5 ✉
AISM1812 0.1-1000 30-800 4.5 3.2 3.2 ✉
AISM2220 1.0-10000 25-1800 5.6 5.0 5.0 ✉

AISM-C Family

Product Series Inductance(µH) IDC(mA) Length (mm) Width (mm) Height (mm) PDF
AISM1210C 1.0-100 75-770 3.2 2.2 2.5 ✉
AISM1812C 1.0-330 90-1050 4.5 3.2 3.2 ✉


6. B60/80 Family

SMD Inductors



product-800-800

FEATURES:

  • Flame retardant encapsulant (UL 94 V-0)
  • Provides superior environmental protection and moisture resistance
  • Compatible with infrared or conventional reflow soldering methods
  • Pick and place compatible
  • Operating temperature: -25℃ to +105℃(Including temp. rise 40℃)
  • Storage Temperature: -40℃ to +85℃



APPLCATIONS:

  • Excellent power line noise filters
  • Filters for switching regulated power supplies,DC/DC converters
  • SCR and triac controls
  • RFI suppression







Series in this family



Product Series L(µH) DCR Max(Ω) Isat Max(A) PDF
B6010 1.0-6800 0.012-36.9 0.19-18.2 ✉
B6011 1.0-1500 0.013-7.3 0.15-4.1 ✉
B6012 1.0-6800 0.012-36.9 0.19-16.2 ✉
B8020 3.9-100000 0.007-89.7 0.081-15.5 ✉

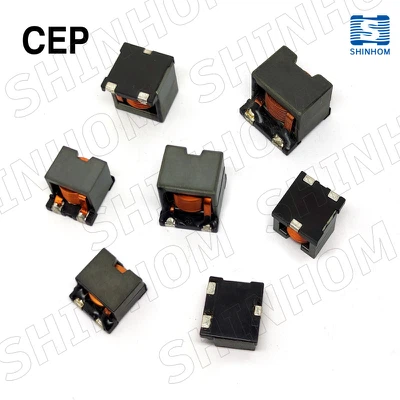

7. CEP Family

High Current Power Inductors



FEATURES:product-800-800

  • Compact size using flat wire,and SMD type
  • Low radiation noise by magnetically shielded construction
  • High current
  • Low resistance
  • Operating Temperature & Storage Temperature: -40℃ - +105℃





APPLCATIONS:

  • High efficiency DC/DC converters
  • Single and polyphase buck converters
  • Filter for audio applications
  • Optimized for high current boost applications









Series in this family



Product Series Impedance@100KHz±20% DCR Max(mΩ) Temperature rise 40℃ current(A)Max PDF
CEP104 0.8-5.7 4.0-9.0 11.5-16.3 ✉
CEP105 5.6-22 10.5-40 4.0-8.5 ✉
CEP136 1.0-10 2.6-10.8 7.6-13 ✉
CEP139 10-47 15-23 7.7-9.2 ✉
CEP1412 10-47 7.98-17.9 6.5-10.1 ✉
CEP148 0.5-12.0 1.2-13.0 8.5-23 ✉
CEP1812 5.6-33 2.00-8.94 12.0-22.5 ✉
CEP2214 3.3-47 1.87-12.6 12.8-36.5 ✉



8. HCB Family

High Current Power Inductors,SMD Power Inductors



FEATURES:product-800-800

  • High current carrying capacity
  • Low core loss
  • Inductance range from 22nH to 120nH
  • Current range from 14A to 35A
  • Ferrite core material
  • Operating temperature: -40℃ to +125℃
  • Storage temperature: -40℃ to +125℃



APPLCATIONS:

  • Portable electronics
  • Servers and workstations
  • Data networking and storage systems
  • Notebook and desktop computers
  • Graphics cards and battery power systems
  • Multi-phase regulators
  • Voltage regulator module(VRM)



Series in this family



Product Series Inductance(µH) IDC(A) Length (mm) Width (mm) Height (mm) PDF
HCB0404 0505 22-100 19-30 4.0-5.0 4.0-5.0 3.0-4.8 ✉
HCB0703 80-150 13-27 7.35 6.6 3.1 ✉
HCB0705 72-226 16-43 7.0 7.0 4.95 ✉
HCB0805 32-200 16-65 7.62 7.62 4.96 ✉
HCB0906 100-300 27.5-51 9.6 6.4 8.0 ✉
HCB1005 80-220 26-53 10.2 7.0 4.95 ✉
HCB1007 115-470 19-61 10.5 8.0 7.0 ✉
HCB1008 120-220 47-68 10.2 8.0 8.0 ✉
HCB1107 120-510 14.5-55 11.2 7.2 7.2-7.5 ✉
HCB1208 150-250 44-50 11.8 8.1 8.0 ✉
HCB1211 230-540 26-40 11.7 11.5 9.2 ✉
HCB1313 220-500 28-40 13.46-13.5 13.0-13.2 5.3-8.0 ✉
HCB1413 300-680 24-45 14.5 13.3 9.5 ✉
HCB040404R32 55-100 17-19 4.0 4.0 4.0 ✉
HCB070705R32 100-180 28-50 7.0 6.8 - ✉
HCB100612R125 70-330 40-77 12.0 10.0 6.0 ✉
HCB100709R18 100-400 30-70 10.0 7.0 9.0 ✉
HCB100808AR18 120-400 30-70 10.0 8.0 8.0 ✉
HCB100808R18 100-320 45-74 10.6 8.0 - ✉
HCB100875R29 100-370 30-56 10.2 8.0 7.5 ✉
HCB121109R30 150-500 32-55 11.5 11.0 9.0 ✉



9. LPA Family

SMD Ferrite Core High Current Power Inductors



FEATURES:product-800-800

  • High current carrying capacity
  • Low core loss
  • Ferrite core material
  • Operating temperature: -40℃ to +125℃(ambient plus self-temperature rise)
  • Storage temperature: -40℃ to +125℃



APPLCATIONS:

  • Portable electronics
  • Servers and workstations
  • Data networking and storage systems
  • Notebook and desktop computers
  • Graphics cards and battery power systems
  • Multi-phase regulators
  • Voltage regulator module(VRM)





Series in this family



Product Series Inductance(µH) IDC(A) Length (mm) Width (mm) Height (mm) PDF
LPA1030 0.2-2.2 9.0-22 10.5 10.5 3.1 ✉
LPA1040 0.15-4.3 8.0-25 10.5 10.5 4.2 ✉
LPA1050 0.16-16 5.0-25 10.5 10.5 5.0 ✉
LPA1230 0.25-3.3 12-24 13 13 3.5 ✉
LPA1260 0.2-22 6.0-32 13 13 6.5 ✉
LPA1890 0.82-47 6.8-41.5 18.3 18.3 9.2 ✉
LPA7030 0.13-2.0 6.5-22 7.0 7.0 3.3 ✉
LPA7040 0.22-4.7 6.0-21 7.0 7.0 4.0 ✉
LPA7050 0.24-10 3.5-20 7.0 7.0 5.0 ✉



10. LPM Family

SMD Shielded Power Inductor ,SMD High Reliability Coils Chokes



FEATURES:product-800-800

  • Magnetically shielded design for low EMI interference
  • High current capability up to 50A with low DCR
  • Compact SMD structure suitable for high-density PCB layouts
  • Compatible with reflow and hand soldering processes
  • Strong solder fillets for reliable mounting and durability
  • Operating temperature: -55°C to +125°C





APPLICATIONS:

  • Notebook computers
  • Battery-powered equipment
  • DC/DC converters
  • Digital cameras and scanners
  • CD-ROM / DVD drives
  • PDA and portable electronic devices



Series in this family



Product Series Inductance(µH) IDC(A) Length (mm) Width (mm) Height (mm) PDF
LPM Series 0.047-4.7 2.75-45 4.06-13.8
4.45-12.8
2.0-8.0 ✉
LPM13 Series 0.1-47 2.5-60 14.2 13 4.0-6.2 ✉
LPM15XX Series 4.7-33 13-31 17.5 16.5 9.7-12.7 ✉
LPM0110 0.22-10 0.32-1.7 1.2 1.0 0.8 ✉
LPM0420C 0.1-10 1.8-18 4.5 4.5 2.0 ✉
LPM0515C 0.15-10 2.3-16 5.5 5.5 1.5 ✉
LPM0518C 0.22-4.7 3.5-16 5.5 5.5 1.8 ✉
LPM0520C 0.1-10 2.0-20 5.5 5.5 2.0 ✉
LPM0530C 0.1-33 2.0-23 5.5 5.5 3.0 ✉
LPM0620C 0.1-10 3.0-21 7.4 7.4 2.0 ✉
LPM0624C 0.1-15 3.5-30 7.4 7.4 2.4 ✉
LPM0630C 1.0-22 4.0-40 7.4 7.4 4.0 ✉
LPM0640C 0.15-12 4.0-40 7.4 7.4 4.0 ✉
LPM0650C 0.47-47 2.5-22 7.6 7.6 5.0 ✉
LPM0830C 0.22-33 3.0-30 9.2 9.2 3.0 ✉
LPM0840C 0.22-47 3.0-32 9.2 9.2 4.0 ✉
LPM0850C 0.15-22 5.0-45 9.2 9.2 5.0 ✉
LPM1020C 0.33-2.2 8-29 10.5 10.5 2.0 ✉
LPM1030C 0.36-6.8 7.0-25 10.5 10.5 3.0 ✉
LPM1040C 0.19-47 3.6-40 10.5 10.5 4.0 ✉
LPM1050C 0.36-22 6.0-33 10.5 10.5 5.0 ✉
LPM1050D 3.3-22 2.5-7.0 10.2 10.2 5.0 ✉
LPM1060C 1.0-4.7 14-26.5 11.3 10.0 6.0 ✉
LPM1080D 8.2-22 4.0-6.0 11.2 11.2 8.0 ✉
LPM1090D 1.0-47 2.3-17 10.2 10.2 9.0 ✉
LPM1213D 8.2-22 5.5-10 13.8 13.8 13 ✉
LPM1235C 0.1-10.0 7.0-48 13.2 13.2 3.5 ✉
LPM1250C 0.1-22 7.0-50 13.2 13.2 5.0 ✉
LPM1260C 0.33-10.0 11-45 13.2 13.2 6.0 ✉
LPM1265C 0.15-68 5.0-60 13.2 13.2 6.5 ✉
LPM1280C 1.0-2.2 26-35 13.2 13.2 8.0 ✉
LPM1770C 1.0-350 3.0-50 18 18 7.0 ✉
LPM2010C 0.24-2.2 1.6-6.3 2.0 1.6 1.0 ✉
LPM2213C 0.47-400 4.0-80 22.5 22.5 13 ✉
LPM2510C 1.0-4.7 1.5-3.5 2.5 2.0 1.0 ✉
LPM2512C 0.22-4.7 1.8-8.0 2.5 2.0 1.2 ✉
LPM3210C 1.0 4.0 3.2 2.5 1.0 ✉
LPM3212C 4.7 2.0 3.2 2.5 1.2 ✉
LPM3215C 0.22 11 3.2 2.5 1.5 ✉
LPM3220C 1.0-4.7 2.8-5.4 3.2 2.5 2.0 ✉
LPM4010C 1.0-10.0 1.5-3.5 4.0 4.0 1.0 ✉
LPM4012C 0.25-10.0 1.8-8.0 4.0 4.0 1.2 ✉
LPM4015C 0.47-2.2 6.0-9.2 4.0 4.0 1.5 ✉
LPM4020C 0.33-22 1.7-13 4.0 4.0 2.0 ✉
LPM4030C 0.15-10.0 3.1-24 4.0 4.0 3.0 ✉
LPM4040C 0.15-10.0 2.8-21 4.0 4.0 4.0 ✉
LPM5020C 0.15-6.8 4.5-27 5.4 5.2 2.0 ✉
LPM5030C 0.15-10.0 4.5-30 5.4 5.2 3.0 ✉
LPM6030C 0.15-10.0 7.0-35 6.6 6.4 3.0 ✉
LPM6060C 0.22-15 7.4-29 6.6 6.4 6.0 ✉
LPM6030B 0.18-3.3 8-32 6.4 6.6 3.1 ✉
LPM6060B 4.7-33 3.6-11 6.4 6.6 6.1 ✉
LPM10100C 1.0-15 13.8-43.5 11.3 8.0 10.0 ✉
LPM1707 0.22-22.0 11-80 17.15 17.15 7.0 ✉



11. LPS Family

SMD Magnetically Shielded By Magnetic Powder Molding Inductor For Power Line





FEATURES:product-800-800

  • Magnetically shielded by magnetic powder molding
  • Generic use for portable DC to DC converter line
  • High magnetic shield construction should actualize high resolution for EMC protection
  • Available for automatic mounting in tape and real package
  • The products do not contain lead and support lead-free soldering





APPLICATIONS:

  • Cellular phones, DVCs, DSCs, PDAs, LCD displays, HDDs, etc
  • Operating Temp:-40℃~ +125℃













Series in this family



Product Series Inductance(µH) IDC(A) Length (mm) Width (mm) Height (mm) PDF
LPS2512 0.47-22 0.38-2.27 2.5 2.0 1.2 ✉
LPS3010 1.0-22 0.38-1.6 3.0 3.0 1.0 ✉
LPS3012 1.0-47 0.31-1.9 3.0 3.0 1.2 ✉
LPS3015 1.0-47 0.32-2.0 3.0 3.0 1.5 ✉
LPS4010 1.0-47 0.28-1.05 4.0 4.0 1.0 ✉
LPS4012 1.0-47 0.37-1.5 4.0 4.0 1.2 ✉
LPS4018 1.0-220 0.17-1.83 4.0 4.0 1.8 ✉
LPS4020 1.0-100 0.31-2.6 4.0 4.0 2.0 ✉
LPS4030 0.91-120 0.42-3.15 4.0 4.0 3.0 ✉
LPS5020 1.0-33 0.83-3.7 5.0 5.0 2.0 ✉
LPS5040 1.5-47 0.94-4.45 5.0 5.0 4.0 ✉
LPS6012 2.5-100 0.32-1.73 6.0 6.0 1.2 ✉
LPS6020 0.8-22 0.95-3.8 6.0 6.0 2.0 ✉
LPS6028 1.5-100 0.7-4.58 6.0 6.0 2.8 ✉
LPS6045 0.82-330 0.57-5.9 6.0 6.0 4.5 ✉
LPS8030 1.0-47 1.3-6.2 8.0 8.0 3.0 ✉
LPS8040 0.82-330 0.64-6.3 8.0 8.0 4.2 ✉
LPS4520 1500-20000 0.1-0.3 45 20 20 ✉



12. LQH Family

High Current Surface-Mount Wire-Wound Inductors



FEATURES:product-800-800

  • Ferrite Core
  • High Frequency Design
  • Lower DCR permits High Idc
  • Excellent Q SRF Values
  • Lead free versions
  • RoHS compliant
  • Excellent Thermal Stability
  • Operating Temperature:-25℃ to +85℃
  • Storage Temperature: -55℃ to +125℃



APPLICATIONS:

  • Modems PDP. LCD TVs convertor
  • Mobile Radios DC/DC convertor
  • Cordless Telephones Car radios
  • Global Positioning Systems
  • Wireless Communications Equipment
  • Networking System,xDSL Filter
  • Computer Products and Peripherals



Series in this family



Product Series L(µH) SRF(MHz) DCR Max(Ω) IDC Max(mA) PDF
LQH1008 1.0-100 8.0-100 0.078-7.75 110-300 ✉
LQH1206 1.0-100 7.0-100 0.49-12 45-175 ✉
LQH1210 0.1-390 5.0-200 0.25-22 50-700 ✉
LQH1812 1.0-2200 1.3-120 0.20-50 30-550 ✉
LQH2220 0.12-10000 0.4-450 0.01-140 50-6000 ✉



13. LQH-S Family

High Current Shielded Surface-mount Wire-wound Inductors



FEATURES:product-800-800

  • Ferrite shielded structure
  • High Frequency Design
  • Lower DCR permits High Idc
  • Available in E12 series
  • Excellent Q SRF Values
  • Lead free versions
  • RoHS compliant
  • Excellent Thermal Stability
  • Operating Temperature:-25℃ to +85℃
  • Storage Temperature: -55℃ to +125℃



APPLICATIONS:

  • Modems PDP. LCD TVs convertor
  • Mobile Radios DC/DC convertor
  • Cordless Telephones Car radios
  • Global Positioning Systems
  • Wireless Communications Equipment
  • Networking System,xDSL Filter
  • Computer Products and Peripherals



Series in this family



Product Series Inductance(µH) IDC(A) Length (mm) Width (mm) Height (mm) PDF
LQH1210S 1.0-2200 0.02-1 3.5 3.5 2.4 ✉
LQH2220S 0.27-10000 0.05-6 6.3 6.3 4.7 ✉



14. SB Family

Shielded SMD Power Inductors



FEATURES:product-800-800

  • Magnetic Shielded Surface Mount Inductor with High Current Rating
  • Low Resistance to Keep Power Loss Minimum





APPLICATIONS:

  • Excellent for Power Line DC-DC Conversion
  • Applications used in Hard disk, Notebook Computers and Other Electronic Equipment



















Series in this family



Product Series L(µH) S.R.F(MHz) DCR Max(Ω) IDC Max(A) PDF
SB0906 2.7-10000 0.7-85 0.032-38 70-3200 ✉
SB0908 1.5-15000 0.4-65 0.014-40 75-5600 ✉



15. SDR Family

High Current Surface-mount Power Inductors



FEATURES:product-800-800

  • Low cost design general Purpose inductor
  • High Saturation current
  • Easy construction that uses Ferrite rod cores



APPLICATIONS:

  • Switching Regulators
  • Automotive Systems
  • Power Amplifiers
  • Power Supplies
  • EMI/RFI suppression
  • DC line Filters











16. SDRH Family

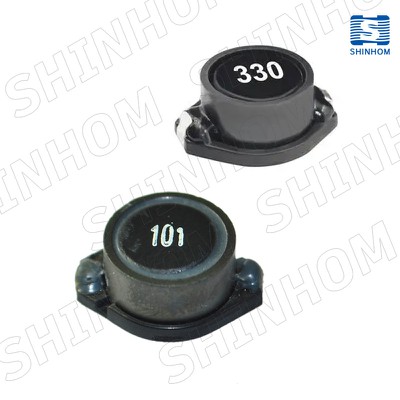

SMD Power Inductors , Shield Power Choke Coil



SDRH Series power inductor mechanical strength and thermalproduct-800-800

stability is good enough to bear the temperature changes from

the reflow soldering and the outside force. It is mini size,

high energy-stored, low resistance makes itself an ideal inductor

when used in the PDA, DC/DC switches.

Be suitable to work in the big current condition.

  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +105℃



APPLCATIONS:

  • Video Digital Cameras
  • Communication System
  • Automotive Systems Power supplier
  • LCD PDP Televisions
  • Hard Disk Drives, Topset, XDSL
  • Network Systems
  • Computer Peripheral Equipmen



Series in this family



Product Series L(µH) IDC(A) Length (mm) Width (mm) Height (mm) PDF
SDRH0603 3.5-1000 0.08-3.0 6.5 6.5 3.0 ✉
SDRH0605 10-1000 0.14-1.35 6.5 6.5 5.0 ✉
SDRH0703 10-1000 0.16-1.68 7.5 7.5 3.4 ✉
SDRH0704 10-1000 0.18-1.84 7.5 7.5 4.5 ✉
SDRH10145 3.3-1500 0.22-3.7 10.4 10.4 4.8 ✉
SDRH103 10-150 0.7-2.7 10.4 10.4 3.0 ✉
SDRH104 1.3-330 0.7-10.0 10.4 10.4 4.0 ✉
SDRH105 10-1000 0.35-3.45 10.4 10.4 5.0 ✉
SDRH12 1.3-1000 0.006-11.6 12 12 4.5-8.0 ✉
SDRH1204 10-330 0.5-4.5 12.3 12.3 4.5 ✉
SDRH1205 10-1000 0.4-4.0 12.3 12.3 6.0 ✉
SDRH1207 1.2-1000 0.55-9.8 12.3 12.3 8.0 ✉
SDRH1209 1.0-1000 0.70-11 12.5 12.5 10.0 ✉
SDRH12555 6.0-1500 0.29-3.6 12.8 12.8 5.8 ✉
SDRH12565 2.2-330 0.95-6.2 12.8 12.8 6.8 ✉
SDRH12575 1.2-330 1.0-8.2 12.8 12.8 7.8 ✉
SDRH1508 10-6800 0.038-5.5 14.8 14.8 8.0 ✉
SDRH1510 4.7-150 2.5-8.5 15.3 11.8 10.8 ✉
SDRH2D11 1.5-22 0.25-0.90 3.2 3.2 1.2 ✉
SDRH2D18 2.2-47 0.20-0.85 3.2 3.2 2.0 ✉
SDRH3818 1.0-150 0.12-1.8 3.85 3.85 1.8 ✉
SDRH3D16 1.0-47 0.26-1.89 4.0 4.0 1.9 ✉
SDRH4D18 1.0-390 0.11-1.72 5.0 5.0 2.0 ✉
SDRH4D28 1.0-180 0.22-2.56 5.0 5.0 3.1 ✉
SDRH5018 1.2-47 0.33-1.8 5.2 5.2 1.8 ✉
SDRH5020 1.2-470 0.18-2.18 5.2 5.2 2.0 ✉
SDRH5028 1.0-220 0.2-4.0 5.2 5.2 2.8 ✉
SDRH5D18 1.0-100 0.36-3.86 6.0 6.0 2.2 ✉
SDRH5D28 2.5-100 0.42-2.6 6.0 6.0 3.2 ✉
SDRH6025 1.0-100 0.33-2.7 6.3 6.3 2.8 ✉
SDRH6028 4.7-100 0.42-1.6 6.3 6.3 3.1 ✉
SDRH6D28 3.0-100 0.54-3.0 7.0 7.0 3.2 ✉
SDRH6D38 3.3-100 0.58-3.2 7.0 7.0 4.2 ✉
SDRH7028 3.3-47 0.54-1.6 7.3 7.3 3.2 ✉
SDRH7030 3.3-100 0.35-1.8 7.3 7.3 3.4 ✉
SDRH7032 3.3-1000 0.13-1.9 7.3 7.3 3.8 ✉
SDRH7045 3.3-470 0.31-2.2 7.3 7.3 4.8 ✉
SDRH8D28 2.5-680 0.78-5.4 8.3 8.3 3.0 ✉
SDRH8D43 2.0-100 0.9-6.4 8.3 8.3 4.5 ✉
SDRH1514B 33-1000 0.8-7.5 15.5 15.5 14.2 ✉



17. SDRS Family

Surface-mount Power Shielded Inductors



FEATURES:product-800-800

  • Small Foot Pint
  • Flat-top for Pick& Place
  • Shielded structure
  • Operating temperature: -40℃ to +85℃
  • Storage Temperature: -40℃ to +105℃



APPLICATION:

  • Power supply for VTRs
  • OA equipment
  • LCD televisions
  • Notebook PCs
  • Portable communication equipment
  • DC/DC converters,etc







Series in this family



Product Series Inductance(µH) IDC(A) Length (mm) Width (mm) Height (mm) PDF
SDRS0603 10-820 0.42-1.0 6.2 5.6 3.2 ✉
SDRS0704 10-820 0.33-1.65 7.8 7.0 4.5 ✉
SDRS1005 10-820 0.33-2.06 10.0 9.0 5.0 ✉
SDRS1205 10-820 0.36-2.65 12.6 11.6 5.4 ✉



18. SDR-T Family

Magnetic Shielded Surface-Mount Power Inductors



FEATURES:product-800-800

  • Low DC Resistance
  • Large current
  • Excellent Mechanical Strength
  • High Reliability and Excellent Solderability
  • Low and square Profile
  • High heat resistance



APPLICATIONS:

VCRs, Notebook, DC/DC Converters

Video Digital Cameras

Communication System

Automotive Systems Power supplier

LCD PDP Televisions

Hard Disk Drives, Topset, XDSL

Network Systems

Computer Peripheral Equipment


Series in this family

Product Series L(µH) Test Freq(KHz) DCR Max(Ω) IDC Max(A) PDF
SDR0703T 1.0-1000 100 0.02-6.2 0.15-3.6 ✉
SDR0704T 10-1000 100 0.12-6.22 0.17-1.5 ✉
SDR1030T 2.7-1000 0.796-7.96 0.028-4.7 0.2-3.0 ✉
SDR1045T 2.7-1000 0.252-7.96 0.026-4.7 0.38-4.8 ✉
SDR1305T 2.5-1000 0.252-7.96 0.0098-2.35 0.46-7.2 ✉
SDR1308T 10-1200 0.252-2.52 0.036-1.92 0.38-4.05 ✉
SDR7030T 1.0-1000 0.796-7.96 0.022-6.2 0.15-3.0 ✉
SDR7045T 1.0-1000 0.252-7.96 0.022-4.0 0.22-3.8 ✉



19. SPI Family

Surface-Mount Power Inductors



FEATURES:product-800-800

  • Ceramic/Ferrite/plastic base optional
  • High Frequency Design
  • Excellent Q Values
  • Excellent SRF
  • Excellent Thermal Stability
  • Low profile
  • Small Foot Print



APPLCATIONS:

  • Modems
  • Mobile Radios
  • Cordless Telephones
  • Global Positioning Systems
  • Wireless Communications Equipment
  • Networking System,xDSL Filter
  • Computer Products and Peripherals

Series in this family

Product Series L(µH) DCR Max(Ω) IDC Max(A) PDF
SPI0402T 1.0-1000 0.05-12 0.1-2.9 ✉
SPI0605HC 0.47-100 0.0097-1.109 0.47-6.0 ✉
SPI0802T 10-1000 0.09-7.0 0.1-2.4 ✉
SPI0804T 1.0-1000 0.009-3.0 0.3-9.0 ✉
SPI0810T 10-1000 0.033-2.0 0.80-8.0 ✉
SPI1006HC 0.47-100 0.0049-0.2707 0.95-11.4 ✉
SPI1306HC 0.47-100 1.4-16.0 1.4-16.0 ✉
SPI1306T 1.0-1000 0.011-1.8 1.0-20.0 ✉
SPI1608HC 0.47-100 0.0019-0.17 3.6-51.7 ✉

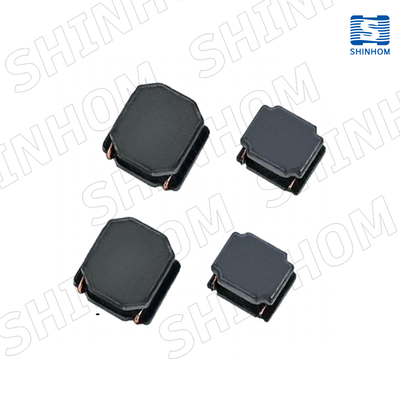

20. SPI-S Family

Shielded Surface-mount Power Inductors



FEATURES:product-800-800

  • High Current
  • Magnetically case shield
  • Very Small Foot Print
  • Flat-top for Pick & Place





APPLICATIONS:

  • Ideal for Palm-Top and Laptop
  • DC-DC Converters
  • PDA's Flash Memory
  • Step-up,Step-down Converters
  • Operating Temperature:-40℃ to+85℃
  • Storage Temperature: -40℃ to +105℃







Series in this family



Product Series Inductance(µH) IDC(A) Length (mm) Width (mm) Height (mm) PDF
SPI0402S 1.0-10000 0.02-3.0 6.6 4.45 2.92 ✉
SPI0802S 1.5-470 0.2-4.0 12.7 10.1 2.7 ✉
SPI0804S 1.0-47 0.8-5.0 12.95 9.4 5.08 ✉
SPI1306S 10-100 0.53-3.9 18.54 15.24 7.62 ✉



21.SMB family

High current SMT power inductor



SMB Series of high-current shielded power inductors feature sub-milliohm DC resistance and very high current handling. Magnetic shielding and tight DCR tolerances make them ideal for low voltage multi-phase VRM/VRD/EVRD regulators and current sensing circuits.



FEATURES:product-800-800

  • Ferrite core material
  • Shielded construction
  • Operating Temperature: -40℃ to +125℃
  • Tight DCR tolerance for inductor-DCR-based current sensing circuits
  • Three versions for optimal efficiency and accuracy
  • Ferrite construction for flat L vs I with high current
  • Magnetic shielding allows high-density packaging
  • Ideal for multi-phase VRM/VRD/EVRD regulators



APPLICATIONS:

  • Servers
  • Multi-phase and Vcore regulators
  • Notebook regulators
  • Battery power systems
  • Graphics cards



Series in this family



Product Series OCL(nH)+10% DCR Max(mΩ) IDC Max(A) PDF
SMB0808B 300-1000 0.8 15-60 ✉
SMB1007B 330-1600 0.81 12-65 ✉
SMB series - 0.6-1.0 14-17 ✉

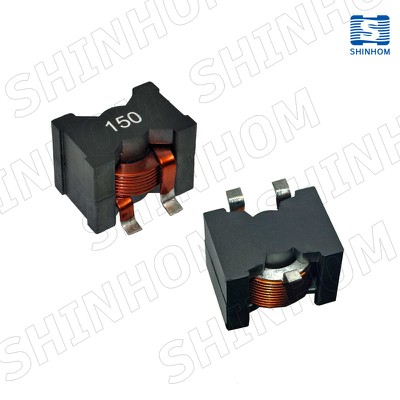

22.SPQ family



FEATURES:product-800-800

  • Ideal for use in Class-D applications
  • Flat wire windings provide extremely low DC and AC resistance
  • Vertical mounting provides a small footprint
  • Designed for high current power supply applications with saturation current ratings to over 100 Amps
  • Operating Temperature & Storage Temperature: -40℃ - +125℃





COMMON APPLCATIONS:

  • High efficiency DC/DC converters
  • Single and polyphase buck converters
  • Filter for audio applications
  • Optimized for high current boost applications









Series in this family



Product Series 500KHz,0.1V(uH)+10% DCR Max(mΩ) IDC Max(A) PDF
SPQ2615A 2.2-33 2.05 4.0-100 ✉
SPQ2615B 1.5-33 1.65 3.3-100 ✉
SPQ2618A 3.3-33 2.86 9.6-92.5 ✉
SPQ2618B 1.0-10 0.48-9.7 22.8-125 ✉
SPQ2620 - 5.39-130.3 3-24.05 ✉



SHINHOM is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our SMD inductors products.

Hot Tags: smd inductor, China smd inductor manufacturers, suppliers, factory, Toroidal Choke, SMD Inductor, Shielding Inductor, Flat Wire Inductor, Power Bead Inductor, Leaded Inductor

Send Inquiry

You Might Also Like

whatsapp

Phone

E-mail

Inquiry

Bag
