Shielding inductor is designed to protect wire, loop and coil from the influence of external magnetic field, weaken the interference effect of electromagnetic field generated by circuit on other components, and minimize EMI. while balancing small size with low DCR and high current ratings. Shielding inductor Magnetic shielding or electromagnetic shielding is usually adopted.
The characteristics of shielding inductance:
- Special gold-plated electrode end face, reliable welding, flat surface easy to install;
- Closed magnetic circuit design, with low magnetic leakage, low DC resistance, short and thin, etc.
- Appearance characteristics: package form-power inductance; Winding form - single layer tightly wound type; Properties of magnetic permeability - ferrite core; Core shape - I-shape; Operating frequency - high frequency; Installation mode - patch type; Skeleton material - Bakelite;
- Closed magnetic circuit structure flat design, light and thin, large current and low DC impedance;
Applications of shielding inductors
LCD TV;Laptop;TFT-LCD; Digital camera, MP3, MP4; Computer VGA graphics card; Mobile phones, small communication equipment; PDA, CATV, VCR, LCD driver; Portable DVD;DC/DC power module, DC/AC inverter; Various office equipment and instruments, etc.
Product families
| Product families | Inductance(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) | |
| LGS | 10-47 | 3.5-15 | 13.5-18 | 13.5-18 | 22-32 | ✉ |
| SDRH | 1.0-6800 | 0.038-11.6 | 3.2-15.5 | 3.2-15.5 | 1.2-14.2 | ✉ |
| LPA | 0.13-47 | 3.5-41.5 | 7.0-18.3 | 7.0-18.3 | 3.1-9.2 | ✉ |
| LPM | 0.047-400 | 0.32-80 | 2.5-22.5 | 2.5-22.5 | 1.0-12.7 | ✉ |
| LPS | 0.47-20000 | 0.17-6.3 | 2.5-40 | 2.5-20 | 1.0-20 | ✉ |
| SPI-S | 1.0-10000 | 0.02-5.0 | 6.6-18.54 | 4.45-15.24 | 2.7-7.62 | ✉ |
| HCB | 22-680 | 13-77 | 4.0-14.5 | 4.0-13.3 | 3.0-9.5 | ✉ |
| SDRS | 10-820 | 0.33-2.65 | 6.2-12.6 | 5.6-11.6 | 3.2-5.4 | ✉ |
| LQH-S | 0.27-10000 | 0.02-6 | 3.5-6.3 | 3.5-6.3 | 2.4-4.7 | ✉ |
| HR | 0.22-10 | 7.0-60 | 7.9-13 | 8.4-12.1 | 7-10 | |
| HQ | 0.15-2.5 | 14-40 | 10.54-15 | 7.5-11 | 11.2-12.4 | ✉ |
| HSM | 0.22-10 | 7.0-27 | 8.4-12.1 | 7.9-11.4 | 7.0-9.5 | ✉ |
| SB | 1.5-15000 | 0.07-5.6 | 10.5 | 9.05 | 6.0-7.5 | ✉ |
| SMB | - | 15-113 | 8.0-10.0 | 7.0-10.0 | 9.5-10.0 | ✉ |
| HM | - | - | 8.5-32.0 | 8.5-32.0 | 8.0-17.0 | ✉ |
1.LGS Family
Leaded Power Inductor,ferrite Core Dip Inductor With Ferrite Case
There is a magnetic shield on the outside of the shielded inductor,
which has good anti-EMI effect, reduces the electromagnetic
interference of the inductor to the outside world, and weakens the
interference effect of the electromagnetic field generated by
the circuit on other components.
FEATURES:
- Magnetically shielded construction power inductor
- Heat-resistant molded resin power inductor
- Shielded power inductor with low DCR and large current
- Operating temperature range: -40 ~ 125 ℃
APPLCATIONS:
- VCRs, AC/DC DC/DC converters
- Video cameras
- Communication systems
- Automotive systems
- Liquid crystal televisions
- Power suppliers
- Network systems
- Computer peripheral equipment
Series in this family
| Product Series | Inductance(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) | |
| LGS1213B | 10-47 | 4.5-10 | 13.5 | 13.5 | 22 | ✉ |
| LGS1218B | 10-47 | 4.5-10 | 13.5 | 13.5 | 27 | ✉ |
| LGS1619 | 10-47 | 3.5-10 | 16.5 | 16.5 | 25 | ✉ |
| LGS1622 | 10-47 | 5-12 | 16.5 | 16.5 | 29 | ✉ |
| LGS1622B | 10-47 | 8-15 | 18 | 18 | 32 | ✉ |
2.SDRH Family
SMD Power Inductors , Shield Power Choke Coil
SDRH Series power inductor mechanical strength and thermal
stability is good enough to bear the temperature changes from
the reflow soldering and the outside force. It is mini size,
high energy-stored, low resistance makes itself an ideal inductor
when used in the PDA, DC/DC switches.
FEATURES:
- Be suitable to work in the big current condition.
- Operating temperature: -40℃ to +105℃
- Storage Temperature: -40℃ to +105℃
APPLCATIONS:
- Video Digital Cameras
- Communication System
- Automotive Systems Power supplier
- LCD PDP Televisions
- Hard Disk Drives, Topset, XDSL
- Network Systems
- Computer Peripheral Equipmen
Series in this family
| Product Series | L(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) | |
| SDRH0603 | 3.5-1000 | 0.08-3.0 | 6.5 | 6.5 | 3.0 | ✉ |
| SDRH0605 | 10-1000 | 0.14-1.35 | 6.5 | 6.5 | 5.0 | ✉ |
| SDRH0703 | 10-1000 | 0.16-1.68 | 7.5 | 7.5 | 3.4 | ✉ |
| SDRH0704 | 10-1000 | 0.18-1.84 | 7.5 | 7.5 | 4.5 | ✉ |
| SDRH10145 | 3.3-1500 | 0.22-3.7 | 10.4 | 10.4 | 4.8 | ✉ |
| SDRH103 | 10-150 | 0.7-2.7 | 10.4 | 10.4 | 3.0 | ✉ |
| SDRH104 | 1.3-330 | 0.7-10.0 | 10.4 | 10.4 | 4.0 | ✉ |
| SDRH105 | 10-1000 | 0.35-3.45 | 10.4 | 10.4 | 5.0 | ✉ |
| SDRH12 | 1.3-1000 | 0.006-11.6 | 12 | 12 | 4.5-8.0 | ✉ |
| SDRH1204 | 10-330 | 0.5-4.5 | 12.3 | 12.3 | 4.5 | ✉ |
| SDRH1205 | 10-1000 | 0.4-4.0 | 12.3 | 12.3 | 6.0 | ✉ |
| SDRH1207 | 1.2-1000 | 0.55-9.8 | 12.3 | 12.3 | 8.0 | ✉ |
| SDRH1209 | 1.0-1000 | 0.70-11 | 12.5 | 12.5 | 10.0 | ✉ |
| SDRH12555 | 6.0-1500 | 0.29-3.6 | 12.8 | 12.8 | 5.8 | ✉ |
| SDRH12565 | 2.2-330 | 0.95-6.2 | 12.8 | 12.8 | 6.8 | ✉ |
| SDRH12575 | 1.2-330 | 1.0-8.2 | 12.8 | 12.8 | 7.8 | ✉ |
| SDRH1508 | 10-6800 | 0.038-5.5 | 14.8 | 14.8 | 8.0 | ✉ |
| SDRH1510 | 4.7-150 | 2.5-8.5 | 15.3 | 11.8 | 10.8 | ✉ |
| SDRH2D11 | 1.5-22 | 0.25-0.90 | 3.2 | 3.2 | 1.2 | ✉ |
| SDRH2D18 | 2.2-47 | 0.20-0.85 | 3.2 | 3.2 | 2.0 | ✉ |
| SDRH3818 | 1.0-150 | 0.12-1.8 | 3.85 | 3.85 | 1.8 | ✉ |
| SDRH3D16 | 1.0-47 | 0.26-1.89 | 4.0 | 4.0 | 1.9 | ✉ |
| SDRH4D18 | 1.0-390 | 0.11-1.72 | 5.0 | 5.0 | 2.0 | ✉ |
| SDRH4D28 | 1.0-180 | 0.22-2.56 | 5.0 | 5.0 | 3.1 | ✉ |
| SDRH5018 | 1.2-47 | 0.33-1.8 | 5.2 | 5.2 | 1.8 | ✉ |
| SDRH5020 | 1.2-470 | 0.18-2.18 | 5.2 | 5.2 | 2.0 | ✉ |
| SDRH5028 | 1.0-220 | 0.2-4.0 | 5.2 | 5.2 | 2.8 | ✉ |
| SDRH5D18 | 1.0-100 | 0.36-3.86 | 6.0 | 6.0 | 2.2 | ✉ |
| SDRH5D28 | 2.5-100 | 0.42-2.6 | 6.0 | 6.0 | 3.2 | ✉ |
| SDRH6025 | 1.0-100 | 0.33-2.7 | 6.3 | 6.3 | 2.8 | ✉ |
| SDRH6028 | 4.7-100 | 0.42-1.6 | 6.3 | 6.3 | 3.1 | ✉ |
| SDRH6D28 | 3.0-100 | 0.54-3.0 | 7.0 | 7.0 | 3.2 | ✉ |
| SDRH6D38 | 3.3-100 | 0.58-3.2 | 7.0 | 7.0 | 4.2 | ✉ |
| SDRH7028 | 3.3-47 | 0.54-1.6 | 7.3 | 7.3 | 3.2 | ✉ |
| SDRH7030 | 3.3-100 | 0.35-1.8 | 7.3 | 7.3 | 3.4 | ✉ |
| SDRH7032 | 3.3-1000 | 0.13-1.9 | 7.3 | 7.3 | 3.8 | ✉ |
| SDRH7045 | 3.3-470 | 0.31-2.2 | 7.3 | 7.3 | 4.8 | ✉ |
| SDRH8D28 | 2.5-680 | 0.78-5.4 | 8.3 | 8.3 | 3.0 | ✉ |
| SDRH8D43 | 2.0-100 | 0.9-6.4 | 8.3 | 8.3 | 4.5 | ✉ |
| SDRH1514B | 33-1000 | 0.8-7.5 | 15.5 | 15.5 | 14.2 | ✉ |

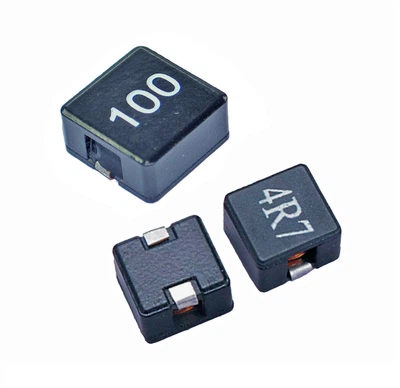

3.LPA Family
SMD Ferrite Core High Current Power Inductors
FEATURES:
- High current carrying capacity
- Low core loss
- Ferrite core material
- Operating temperature: -40℃ to +125℃
- Storage temperature: -40℃ to +125℃
APPLCATIONS:
- Portable electronics
- Servers and workstations
- Data networking and storage systems
- Notebook and desktop computers
- Graphics cards and battery power systems
- Multi-phase regulators
- Voltage regulator module(VRM)
Series in this family
| Product Series | Inductance(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) | |
| LPA1030 | 0.2-2.2 | 9.0-22 | 10.5 | 10.5 | 3.1 | ✉ |
| LPA1040 | 0.15-4.3 | 8.0-25 | 10.5 | 10.5 | 4.2 | ✉ |
| LPA1050 | 0.16-16 | 5.0-25 | 10.5 | 10.5 | 5.0 | ✉ |
| LPA1230 | 0.25-3.3 | 12-24 | 13 | 13 | 3.5 | ✉ |
| LPA1260 | 0.2-22 | 6.0-32 | 13 | 13 | 6.5 | ✉ |
| LPA1890 | 0.82-47 | 6.8-41.5 | 18.3 | 18.3 | 9.2 | ✉ |
| LPA7030 | 0.13-2.0 | 6.5-22 | 7.0 | 7.0 | 3.3 | ✉ |
| LPA7040 | 0.22-4.7 | 6.0-21 | 7.0 | 7.0 | 4.0 | ✉ |
| LPA7050 | 0.24-10 | 3.5-20 | 7.0 | 7.0 | 5.0 | ✉ |
4.LPM Family
SMD Shielded Power Inductor ,SMD High Reliability Coils Chokes
FEATURES:
- Magnetically shielded SMD power inductor
- High current capability up to 50A
- Low DCR for improved efficiency
- Suitable for reflow and hand soldering
- High reliability and stable performance
- Operating temperature -55°C to +125°C
APPLICATIONS:
- Notebook computer
- Battery power equipment
- DC/DC converter
- Digital camera and scannerCD-ROM/DVD and PDA
- Operating Temperature Range -55℃ to +125℃
Series in this family
| Product Series | Inductance(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) | |||
| LPM Series | 0.047-100 | 2.75-45 | 4.06-13.8 | 4.45-12.8 | 2.0-8.0 | ✉ | ||
| LPM13 Series | 0.1-47 |
|
14.2 | 13 |
|
✉ | ||
| LPM15XX Series | 4.7-33 | 13-31 | 17.5 | 16.5 |
|
✉ | ||
| LPM0110 | 0.22-10 | 0.32-1.7 | 1.2 | 1.0 | 0.8 | ✉ | ||
| LPM0420C | 0.1-10 | 1.8-18 | 4.5 | 4.5 | 2.0 | ✉ | ||
| LPM0515C | 0.15-10 | 2.3-16 | 5.5 | 5.5 | 1.5 | ✉ | ||
| LPM0518C | 0.22-4.7 | 3.5-16 | 5.5 | 5.5 | 1.8 | ✉ | ||
| LPM0520C | 0.1-10 | 2.0-20 | 5.5 | 5.5 | 2.0 | ✉ | ||
| LPM0530C | 0.1-33 | 2.0-23 | 5.5 | 5.5 | 3.0 | ✉ | ||
| LPM0620C | 0.1-10 | 3.0-21 | 7.4 | 7.4 | 2.0 | ✉ | ||
| LPM0624C | 0.1-15 | 3.5-30 | 7.4 | 7.4 | 2.4 | ✉ | ||
| LPM0630C | 1.0-22 | 4.0-40 | 7.4 | 7.4 | 4.0 | ✉ | ||
| LPM0640C | 0.15-12 | 4.0-40 | 7.4 | 7.4 | 4.0 | ✉ | ||
| LPM0650C | 0.47-47 | 2.5-22 | 7.6 | 7.6 | 5.0 | ✉ | ||
| LPM0830C | 0.22-33 | 3.0-30 | 9.2 | 9.2 | 3.0 | ✉ | ||
| LPM0840C | 0.22-47 | 3.0-32 | 9.2 | 9.2 | 4.0 | ✉ | ||
| LPM0850C | 0.15-22 | 5.0-45 | 9.2 | 9.2 | 5.0 | ✉ | ||
| LPM1020C | 0.33-2.2 | 8-29 | 10.5 | 10.5 | 2.0 | ✉ | ||
| LPM1030C | 0.36-6.8 | 7.0-25 | 10.5 | 10.5 | 3.0 | ✉ | ||
| LPM1040C | 0.19-47 | 3.6-40 | 10.5 | 10.5 | 4.0 | ✉ | ||
| LPM1050C | 0.36-22 | 6.0-33 | 10.5 | 10.5 | 5.0 | ✉ | ||
| LPM1050D | 3.3-22 | 2.5-7.0 | 10.2 | 10.2 | 5.0 | ✉ | ||
| LPM1060C | 1.0-4.7 | 14-26.5 | 11.3 | 10.0 | 6.0 | ✉ | ||
| LPM1080D | 8.2-22 | 4.0-6.0 | 11.2 | 11.2 | 8.0 | ✉ | ||
| LPM1090D | 1.0-47 | 2.3-17 | 10.2 | 10.2 | 9.0 | ✉ | ||
| LPM1213D | 8.2-22 | 5.5-10 | 13.8 | 13.8 | 13 | ✉ | ||
| LPM1235C | 0.1-10.0 | 7.0-48 | 13.2 | 13.2 | 3.5 | ✉ | ||
| LPM1250C | 0.1-22 | 7.0-50 | 13.2 | 13.2 | 5.0 | ✉ | ||
| LPM1260C | 0.33-10.0 | 11-45 | 13.2 | 13.2 | 6.0 | ✉ | ||
| LPM1265C | 0.15-68 | 5.0-60 | 13.2 | 13.2 | 6.5 | ✉ | ||
| LPM1280C | 1.0-2.2 | 26-35 | 13.2 | 13.2 | 8.0 | ✉ | ||
| LPM1770C | 1.0-350 | 3.0-50 | 18 | 18 | 7.0 | ✉ | ||
| LPM2010C | 0.24-2.2 | 1.6-6.3 | 2.0 | 1.6 | 1.0 | ✉ | ||
| LPM2213C | 0.47-400 | 4.0-80 | 22.5 | 22.5 | 13 | ✉ | ||
| LPM2510C | 1.0-4.7 | 1.5-3.5 | 2.5 | 2.0 | 1.0 | ✉ | ||
| LPM2512C | 0.22-4.7 | 1.8-8.0 | 2.5 | 2.0 | 1.2 | ✉ | ||
| LPM3210C | 1.0 | 4.0 | 3.2 | 2.5 | 1.0 | ✉ | ||
| LPM3212C | 4.7 | 2.0 | 3.2 | 2.5 | 1.2 | ✉ | ||
| LPM3215C | 0.22 | 11 | 3.2 | 2.5 | 1.5 | ✉ | ||
| LPM3220C | 1.0-4.7 | 2.8-5.4 | 3.2 | 2.5 | 2.0 | ✉ | ||
| LPM4010C | 1.0-10.0 | 1.5-3.5 | 4.0 | 4.0 | 1.0 | ✉ | ||
| LPM4012C | 0.25-10.0 | 1.8-8.0 | 4.0 | 4.0 | 1.2 | ✉ | ||
| LPM4015C | 0.47-2.2 | 6.0-9.2 | 4.0 | 4.0 | 1.5 | ✉ | ||
| LPM4020C | 0.33-22 | 1.7-13 | 4.0 | 4.0 | 2.0 | ✉ | ||
| LPM4030C | 0.15-10.0 | 3.1-24 | 4.0 | 4.0 | 3.0 | ✉ | ||
| LPM4040C | 0.15-10.0 | 2.8-21 | 4.0 | 4.0 | 4.0 | ✉ | ||
| LPM5020C | 0.15-6.8 | 4.5-27 | 5.4 | 5.2 | 2.0 | ✉ | ||
| LPM5030C | 0.15-10.0 | 4.5-30 | 5.4 | 5.2 | 3.0 | ✉ | ||
| LPM6030C | 0.15-10.0 | 7.0-35 | 6.6 | 6.4 | 3.0 | ✉ | ||
| LPM6060C | 0.22-15 | 7.4-29 | 6.6 | 6.4 | 6.0 | ✉ | ||
| LPM6030B | 0.18-3.3 | 8-32 | 6.4 | 6.6 | 3.1 | ✉ | ||
| LPM6060B | 4.7-33 | 3.6-11 | 6.4 | 6.6 | 6.1 | ✉ | ||
| LPM10100C | 1.0-15 | 13.8-43.5 | 11.3 | 8.0 | 10.0 | ✉ | ||
| LPM1707 | 0.22-22.0 | 11-80 | 17.15 | 17.15 | 7.0 | ✉ |
5.LPS Family
SMD Magnetically Shielded By Magnetic Powder Molding Inductor For Power Line
FEATURES:
- Magnetically shielded by magnetic powder molding
- Generic use for portable DC to DC converter line
- High magnetic shield construction should actualize high resolution for EMC protection
- Available for automatic mounting in tape and real package
- The products do not contain lead and support lead-free soldering
APPLICATIONS:
- Cellular phones, DVCs, DSCs, PDAs, LCD displays, HDDs, etc
- Operating Temp.:-40℃~ +125℃
Series in this family
| Product Series | Inductance(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) | |
| LPS2512 | 0.47-22 | 0.38-2.27 | 2.5 | 2.0 | 1.2 | ✉ |
| LPS3010 | 1.0-22 | 0.38-1.6 | 3.0 | 3.0 | 1.0 | ✉ |
| LPS3012 | 1.0-47 | 0.31-1.9 | 3.0 | 3.0 | 1.2 | ✉ |
| LPS3015 | 1.0-47 | 0.32-2.0 | 3.0 | 3.0 | 1.5 | ✉ |
| LPS4010 | 1.0-47 | 0.28-1.05 | 4.0 | 4.0 | 1.0 | ✉ |
| LPS4012 | 1.0-47 | 0.37-1.5 | 4.0 | 4.0 | 1.2 | ✉ |
| LPS4018 | 1.0-220 | 0.17-1.83 | 4.0 | 4.0 | 1.8 | ✉ |
| LPS4020 | 1.0-100 | 0.31-2.6 | 4.0 | 4.0 | 2.0 | ✉ |
| LPS4030 | 0.91-120 | 0.42-3.15 | 4.0 | 4.0 | 3.0 | ✉ |
| LPS5020 | 1.0-33 | 0.83-3.7 | 5.0 | 5.0 | 2.0 | ✉ |
| LPS5040 | 1.5-47 | 0.94-4.45 | 5.0 | 5.0 | 4.0 | ✉ |
| LPS6012 | 2.5-100 | 0.32-1.73 | 6.0 | 6.0 | 1.2 | ✉ |
| LPS6020 | 0.8-22 | 0.95-3.8 | 6.0 | 6.0 | 2.0 | ✉ |
| LPS6028 | 1.5-100 | 0.7-4.58 | 6.0 | 6.0 | 2.8 | ✉ |
| LPS6045 | 0.82-330 | 0.57-5.9 | 6.0 | 6.0 | 4.5 | ✉ |
| LPS8030 | 1.0-47 | 1.3-6.2 | 8.0 | 8.0 | 3.0 | ✉ |
| LPS8040 | 0.82-330 | 0.64-6.3 | 8.0 | 8.0 | 4.2 | ✉ |
| LPS4520 | 1500-20000 | 0.1-0.3 | 45 | 20 | 20 | ✉ |
6.SPI-S Family
Shielded Surface-mount Power Inductors
FEATURES:
- High Current
- Magnetically case shield
- Very Small Foot Print
- Flat-top for Pick & Place
APPLICATIONS:
- Ideal for Palm-Top and Laptop
- DC-DC Converters
- PDA's Flash Memory
- Step-up,Step-down Converters
- Operating Temperature:-40℃ to+85℃
- Storage Temperature: -40℃ to +105℃
Series in this family
| Product Series | Inductance(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) | |
| SPI0402S | 1.0-10000 | 0.02-3.0 | 6.6 | 4.45 | 2.92 | ✉ |
| SPI0802S | 1.5-470 | 0.2-4.0 | 12.7 | 10.1 | 2.7 | ✉ |
| SPI0804S | 1.0-47 | 0.8-5.0 | 12.95 | 9.4 | 5.08 | ✉ |
| SPI1306S | 10-100 | 0.53-3.9 | 18.54 | 15.24 | 7.62 | ✉ |
7.HCB Family
High Current Power Inductors,SMD Power Inductors
FEATURES:
- High current carrying capacity
- Low core loss
- Inductance range from 22nH to 120nH
- Current range from 14A to 35A
- Ferrite core material
- Operating temperature: -40℃ to +125℃
- Storage temperature: -40℃ to +125℃
APPLCATIONS:
- Portable electronics
- Servers and workstations
- Data networking and storage systems
- Notebook and desktop computers
- Graphics cards and battery power systems
- Multi-phase regulators
- Voltage regulator module(VRM)
Series in this family
| Product Series | Inductance(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) | |
| HCB0404 0505 | 22-100 | 19-30 | 4.0-5.0 | 4.0-5.0 | 3.0-4.8 | ✉ |
| HCB0703 | 80-150 | 13-27 | 7.35 | 6.6 | 3.1 | ✉ |
| HCB0705 | 72-226 | 16-43 | 7.0 | 7.0 | 4.95 | ✉ |
| HCB0805 | 32-200 | 16-65 | 7.62 | 7.62 | 4.96 | ✉ |
| HCB0906 | 100-300 | 27.5-51 | 9.6 | 6.4 | 8.0 | ✉ |
| HCB1005 | 80-220 | 26-53 | 10.2 | 7.0 | 4.95 | ✉ |
| HCB1007 | 115-470 | 19-61 | 10.5 | 8.0 | 7.0 | ✉ |
| HCB1008 | 120-220 | 47-68 | 10.2 | 8.0 | 8.0 | ✉ |
| HCB1107 | 120-510 | 14.5-55 | 11.2 | 7.2 | 7.2-7.5 | ✉ |
| HCB1208 | 150-250 | 44-50 | 11.8 | 8.1 | 8.0 | ✉ |
| HCB1211 | 230-540 | 26-40 | 11.7 | 11.5 | 9.2 | ✉ |
| HCB1313 | 220-500 | 28-40 | 13.46-13.5 | 13.0-13.2 | 5.3-8.0 | ✉ |
| HCB1413 | 300-680 | 24-45 | 14.5 | 13.3 | 9.5 | ✉ |
| HCB040404R32 | 55-100 | 17-19 | 4.0 | 4.0 | 4.0 | ✉ |
| HCB070705R32 | 100-180 | 28-50 | 7.0 | 6.8 | - | ✉ |
| HCB100612R125 | 70-330 | 40-77 | 12.0 | 10.0 | 6.0 | ✉ |
| HCB100709R18 | 100-400 | 30-77 | 10.0 | 7.0 | 9.0 | ✉ |
| HCB100808AR18 | 120-400 | 26-70 | 10.0 | 8.0 | 8.0 | ✉ |
| HCB100808R18 | 100-320 | 45-74 | 10.6 | 8.0 | - | ✉ |
| HCB100875R29 | 100-370 | 30-56 | 10.2 | 8.0 | 7.5 | ✉ |
| HCB121109R30 | 150-500 | 32-55 | 11.5 | 11.0 | 9.0 | ✉ |

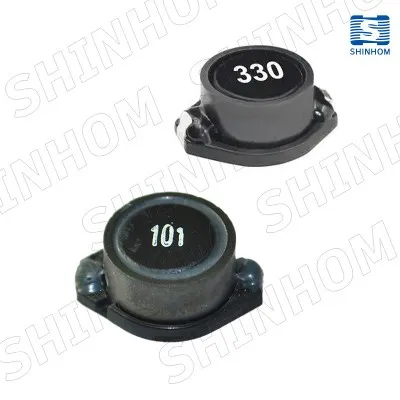

8.SDRS Family
Surface-mount Power Shielded Inductors
FEATURES:
- Small Foot Pint
- Flat-top for Pick& Place
- Shielded structure
- Operating temperature: -40℃ to +85℃
- Storage Temperature: -40℃ to +105℃
APPLICATION:
- Power supply for VTRs
- OA equipment
- LCD televisions
- Notebook PCs
- Portable communication equipment
- DC/DC converters,etc
Series in this family
| Product Series | Inductance(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) | |
| SDRS0603 | 10-820 | 0.42-1.0 | 6.2 | 5.6 | 3.2 | ✉ |
| SDRS0704 | 10-820 | 0.33-1.65 | 7.8 | 7.0 | 4.5 | ✉ |
| SDRS1005 | 10-820 | 0.33-2.06 | 10.0 | 9.0 | 5.0 | ✉ |
| SDRS1205 | 10-820 | 0.36-2.65 | 12.6 | 11.6 | 5.4 | ✉ |
9.LQH-S Family
High Current Shielded Surface-mount Wire-wound Inductors
FEATURES:
- Ferrite shielded structure
- High Frequency Design
- Lower DCR permits High Idc
- Available in E12 series
- Excellent Q SRF Values
- Lead free versions
- RoHS compliant
- Excellent Thermal Stability
- Operating Temperature:-25℃ to +85℃
- Storage Temperature: -55℃ to +125℃
APPLICATIONS:
- Modems PDP. LCD TVs convertor
- Mobile Radios DC/DC convertor
- Cordless Telephones Car radios
- Global Positioning Systems
- Wireless Communications Equipment
- Networking System,xDSL Filter
- Computer Products and Peripherals
Series in this family
| Product Series | Inductance(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) | |
| LQH1210S | 1.0-2200 | 0.02-1 | 3.5 | 3.5 | 2.4 | ✉ |
| LQH2220S | 0.27-10000 | 0.05-6 | 6.3 | 6.3 | 4.7 | ✉ |
10.HR Family
SMD High Current Power Inductors
FEATURES:
- Shielded Constructio
- Lowest DCR/μH,in this package size
- Handles High Transient Current Spikes Without Saturation
- The Products Contain no Lead and also Support Lead-free Soldering
APPLICATIONS:
- Power Line Filter for DC-DC Converter
- Switching Power Supplier
- Personal Computers and Other handheldElectronic Equipment.
- The part temperature (ambient + temp rise) should not exceed
- 125℃ under worst case operating conditions
- Operating Temperature & Storage Temperature: -25℃ - +125℃
Series in this family
| Product Series | Inductance(µH) | IDC(A) | Length (mm) | Width (mm) | Height (mm) | |
| DIP HR | 0.22-2.2 | 17-45 | 13 | 12 | 9-10 | ✉ |
| SMD HR | 0.22-10 | 7-60 | 7.9-11.4 | 8.4-12.1 | 7.0-9.5 | ✉ |
11.HQ Family
High Current Power Inductors
FEATURES:
- Current Rating:up to 80Apk
- Inductance Range: 0.14μH to 0.31μH
- Handles high transient current spikes without saturation
- Ultra low buzz noise, due to composite construction
- Compliant to RoHS directive 2002/95/EC
- Operating Temperature & Storage Temperature: -40℃ - 125℃
APPLCATIONS:
- PDA/notebook/desktop/server applications
- High current POL converters
- Low profile, high current power supplies
- Battery powered devices
- DC/DC converters in distributed power systems
- DC/DC converter for Field Programmable Gate Array (FPGA)
Series in this family
| Product Series | Inductance L0(µH)±15% 0Adc | Heat rating current DC(A) | Saturation current DC(A) | DCR Max(mΩ) | |
| HQ1009 | 0.14-0.31 | 40 | 35-80 | 0.49±5% | ✉ |
| HQ1108 | 0.15-2.5 | 14-38.7 | 16-50 | 0.8-5.5 | ✉ |
12.HSM Family
SMD High Current Power Inductors
FEATURES:
- High current and Low DCR
- Low profile for machine placement
- Min electromagnetic interference
- Prevent EMI effect via precise impedance
- Custom design available
- RoHS-compatible
APPLICATIONS:
- Power Line Filter for DC-DC Converter
- Switching Power Supplier
- Personal Computers and Other handheld Electronic Equipment
Series in this family
| Product Series | L(µH) | Irms(A) | Isat(A) | DCR Max(mΩ) | |
| HSM0807 | 0.3-10 | 4.4-20.5 | 7.0-36 | 1.54-44.55 | ✉ |
| HSM1009 | 0.22-10 | 9.0-21.5 | 8.0-60 | 0.66-22.77 | ✉ |
| HSM1210 | 0.22-10 | 9.0-27.0 | 10-60 | 0.58-15.84 | ✉ |
13.SB Family
Shielded SMD Power Inductors
FEATURES:
- Magnetic Shielded Surface Mount Inductor with High Current Rating
- Low Resistance to Keep Power Loss Minimum
APPLICATIONS:
- Excellent for Power Line DC-DC Conversion
- Applications used in Hard disk, Notebook Computers and Other Electronic Equipment
Series in this family
| Product Series | L(µH) | S.R.F(MHz) | DCR Max(Ω) | IDC Max(mA) | |
| SB0906 | 2.7-10000 | 0.7-85 | 0.032-38 | 70-3200 | ✉ |
| SB0908 | 1.5-15000 | 0.4-65 | 0.014-40 | 75-5600 | ✉ |
14.SMB family
High current SMT power inductor
SMB Series of high-current shielded power inductors feature sub-milliohm DC resistance and very high current handling. Magnetic shielding and tight DCR tolerances make them ideal for low voltage multi-phase VRM/VRD/EVRD regulators and current sensing circuits.
FEATURES:
- Ferrite core material
- Shielded construction
- Operating Temperature: -40℃ to +125℃
- Tight DCR tolerance for inductor-DCR-based current sensing circuits
- Three versions for optimal efficiency and accuracy
- Ferrite construction for flat L vs I with high current
- Magnetic shielding allows high-density packaging
- Ideal for multi-phase VRM/VRD/EVRD regulators
APPLICATIONS:
- Servers
- Multi-phase and Vcore regulators
- Notebook regulators
- Battery power systems
- Graphics cards
Series in this family
| Product Series | OCL(nH)+10% | DCR Max(mΩ) | IDC Max(A) | |
| SMB0808B | 300-1000 | 0.8 | 15-60 | ✉ |
| SMB1007B | 330-1600 | 0.81 | 12-65 | ✉ |
| SMB100710 | 100-330 | 0.17 | 22-113 | ✉ |
15.HM family
FEATURES:
- High current rating
- Hing frequency range up to 1.0MHZ
- Very low DC resistance
- Shielded construction
- All series of product are Halogen-free and ROHS compliant
- Molding Type Power Inductor
- Operating Temperature: -40℃ - 125℃
- Storage Temperature-40℃ - 125℃
APPLICATIONS:
- Motherboards for laptop and desktop computers
- DC/DC converter in distributed power systems or VRM applications Inductor for general purpose use
Series in this family
| Product Series | L(0A) | DCR Max(mΩ) | lsat Typ(A) | |
| HM0808A | 0.1-4.7 | 0.52-14.5 | 12.0-50.0 | ✉ |
| HM0808B | 0.27-4.7 | 1.2-14.5 | 12.0-40.0 | ✉ |
| HM1009A/1211A | 10-33 | 13-60 | 5.5-14 | ✉ |
| HM1010B | 0.15-2.2 | 0.6-4.0 | 30.0-60.0 | ✉ |
| HM1109B | 0.25-2.2 | 0.72-4.0 | 21.0-50.0 | ✉ |
| HM1111B | 0.25-3.3 | 0.6-7.2 | 25.0-60.0 | ✉ |
| HM1210A | 0.22-8.2 | 0.6-14.0 | 10.0-56.0 | ✉ |
| HM1312B | 0.22-2.2 | 0.5-3.2 | 35.0-60.0 | ✉ |
| HM1315A | 0.33-47.0 | 0.7-56.0 | 8.0-60.0 | ✉ |
| HM1616A | 22-100 | 15-48 | 10-16 | ✉ |
| HM1818A | 3.3-33 | 3.0-21.0 | 12-30 | ✉ |
| HM2222A/2828A/3333A | 33-250 | 7.8-65 | 7-38 |
SHINHOM is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Shielding inductor products.
Hot Tags: shielding inductor, China shielding inductor manufacturers, suppliers, factory, Class D Inductor, SMD Inductor, Power Bead Inductor, Power Inductor, Unshielding Inductor, Leaded Inductor
