In a data-driven environment, where automation and AI/ML (artificial intelligence/machine learning) systems are front and center in automated systems, transducers play the most crucial and typically invisible role.
They bridge the gulf between the physical world and the required digital interpretations that such systems must work with. They interpret and present physical and environmental characteristics and facts as system-interpretable data that can be reliably analyzed, monitored and used in overall or local system control. Lacking transducers, automated systems - industrial automation to healthcare monitoring and consumer electronics - are blind to events and cannot operate any form of control.
A deep dive into the science of transducers necessarily explores how they convert the physical world into usable data, reviews the more common types, illustrates their working principles, and exemplifies applications for clarity.
What is a transducer?
At its core, a transducer is a device that converts energy between different forms. For data collection and measurement, transducers convert physical quantities such as temperature, pressure, light, sound, and motion into electrical signals. - Digital systems can process, record and analyze them. Such systems require accurate, repeatable virtual knowledge of real-world changes.
The role of the transducer is to be the interface between the real and changing world and the automated analysis system, which monitors, analyzes and responds to the changes detected by these devices. As a widely known example, a microphone is a transducer that converts changes in air pressure (acoustic waves, mechanical energy) into an analog electrical signal. It converts the energy in rapidly oscillating air pressure into an electrical signal that can be recorded and analyzed and applied to subsequent processes.
Sensors are at the heart of most applications, from environmental sensing and industrial process control to medical diagnostics and consumer electronics, from flight control to flushing toilets. Their ability to convert physical changes into reliable, quantifiable data has made them a cornerstone of the rise of technology and automation.

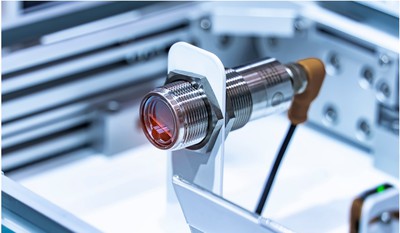

How transducers convert physical inputs into electrical signals
Understanding the working principles of transducers requires some understanding of how they convert physical phenomena into electrical outputs - both digital and analog:
Many transducers rely on changes in resistance to convert physical inputs into electrical signals. Examples include strain gauges, which measure changes in resistance due to mechanical deformation (stretching or contraction); thermistors, which undergo predictable resistance changes that are proportional to temperature; and bimetallic strips that undergo physical changes proportional to temperature.
Inductive transducers work by detecting alterations in inductive coupling, as a conductor moves within a magnetic field. LVDTs use this principle to measure displacement, where long-form inductive sensors can use sine-wave copper tape as an induction source, measuring cyclic changes that can be interpreted by pulse counting plus partial pulse detection.
Capacitive transducers measure changes in capacitance, which can occur when the distance between two conductive plates varies with displacement. This principle is often used in pressure and displacement sensors, producing an analog measurement that can be used directly or converted using an analog to digital (AtoD) converter.
Piezoelectric transducers generate an electrical charge when mechanical stress is applied. This is ideal for applications where vibration, pressure, or sound waves need to be detected when the signal frequency is relatively high and the displacements involved are small. Piezo transducers can be extremely sensitive and are common for scientific instruments and sound/vibration measurements of high precision.
Thermocouples rely on the thermoelectric effect, where a voltage is generated due to temperature differentials between two dissimilar metal wire conductors, where the junction provides a precisely positioned detection point.
The future of transducers
As technological development progresses, transducers have steadily increased in complexity, precision and delicacy. It is reasonable to expect that they will become even more precise, smaller, and energy-efficient as well as increasing in diversity of detections.
The internet of things (IoT), wearable devices, and smart manufacturing are driving demand for more advanced, smaller and more reliable transducer technologies. Advancements in MEMS (micro-electro-mechanical systems) technology are also leading to the development of new classes of miniaturized transducers that can be integrated into ever smaller and lower power portable devices.
The use of wireless transducers, eliminating the need for physical connections between the sensor and the data processing system is particularly useful in remote or hazardous environments where wired connections may be impractical. The available options in this area continue to expand.
Conclusion
Transducers are center stage in many areas of technology, converting the complex and dynamic physical world into reliable, actionable data. Converting physical quantities like pressure, temperature, light, vibration, magnetic fields, pollutant levels and motion into electrical signals, transducers enable the monitoring, control, and automation of processes across all sectors. Transducer opportunities and technologies are not likely to reduce, as technologies become more precise and more integral to social and commercial activities.
Understanding the underlying principles and methodologies in applications of transducers is a key skill for anyone involved in engineering, manufacturing, healthcare and electronics. Understanding and interpreting the real world is the primary concern in all automation applications and this knowledge area continues to expand and increase in utility.
