Ensuring signal integrity and protecting sensitive RF components isn't just a technical challenge-it's a financial imperative.
Imagine this: you've just powered up your new RF system, and everything seems fine-until unexpected reflected waves crash back into your power amplifier. The result? Performance drops, and eventually, that expensive amplifier fails prematurely. This scenario is far too common in industries like telecommunications, radar, and wireless infrastructure.

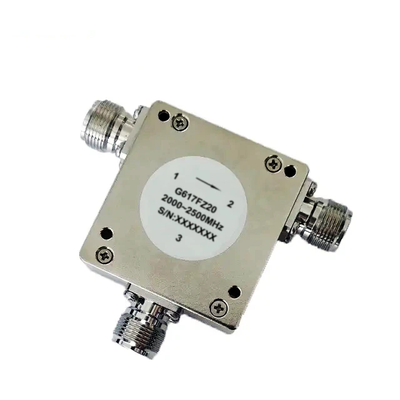

The root culprit is often Voltage Standing Wave Ratio (VSWR)-a mismatch that can cause significant damage if not properly managed. Fortunately, coaxial isolators are specifically designed to protect your system by allowing RF signals to travel in only one direction, effectively blocking harmful reflections.
But how do you choose the right one? Let's break it down.
The Critical Role of Coaxial Isolators in VSWR Protection
VSWR measures the efficiency of power transmission from a source to a load through a transmission line. A high VSWR indicates impedance mismatch, which causes power to be reflected back toward the source. This not only reduces system efficiency but can also generate excessive heat and lead to the failure of sensitive components like power amplifiers1.
Coaxial isolators serve as gatekeepers in RF systems. They minimize the impact of VSWR by:
Isolating the source from reflected power.
Ensuring signal integrity by reducing insertion loss.
Improving system stability under varying load conditions.
For example, in 5G base stations or high-power radar systems, where power amplifiers are costly and critical, integrating a robust coaxial isolator isn't just an option-it's a necessity for reliability and longevity.
The following table summarizes these key specifications and their importance:
| Specification | What It Means | Why It Matters | Typical Value/Example |
|---|---|---|---|
| Frequency Range | The range of frequencies the isolator is designed for. | Must match your system's operating band to ensure proper functionality. | e.g., 3.3–3.8 GHz for 5G3 |
| Isolation (dB) | The amount of attenuation of reflected signals. | Higher isolation provides better protection for your power amplifier. | Min. 20 dB3 |
| Insertion Loss (dB) | The amount of signal power lost passing through the device. | Lower insertion loss means higher system efficiency and less signal degradation. | Max. 0.3–0.4 dB3 |
| VSWR | Measures impedance matching; a value of 1:1 is perfect. | Lower VSWR indicates better matching, reducing reflections and improving performance. | Max. 1.2:13 |
| Power Handling (W) | The maximum forward and reverse power the isolator can handle. | Must exceed your system's power levels to avoid damage. | e.g., 100W, 200W, 300W6 |
| Connector Type | The interface type (e.g., SMA, N). | Ensures physical compatibility and maintains signal integrity. | SMA female7 |
| Operating Temperature | The temperature range under which the isolator performs as specified. | Critical for reliability in harsh environments (e.g., outdoor telecom equipment). | e.g., -40°C to +85°C3 |
Spotlight on 3.5 GHz and 100W Coaxial Isolators
The 3.5 GHz frequency range is crucial for 5G NR applications. Isolators in this band, such as those designed for 3.3–3.8 GHz, need to offer low insertion loss (e.g., ≤0.4 dB), high isolation (e.g., ≥20 dB), and excellent VSWR (e.g., ≤1.25) to ensure 5G systems operate efficiently and reliably.
Similarly, 100W coaxial isolators are common in mid-power applications like commercial transceivers, smaller radar systems, and various wireless infrastructure components. These isolators must handle significant power levels while maintaining thermal stability and electrical performance.
Why Your Choice of Manufacturer Matters
The coaxial isolator manufacturer you choose is as important as the specifications themselves. A reputable manufacturer doesn't just sell components; they provide:
Technical Expertise: Assistance in selecting the right product for your application.
Consistent Quality: Reliable performance backed by rigorous testing.
Customization Options: Ability to tailor products to specific needs, much like UMT's customized waveguide isolators.
Long-term Support: Warranty and after-sales service, ensuring your investment is protected.
Inferior or off-spec isolators might save cost upfront but can lead to system failures, downtime, and expensive repairs-costing far more in the long run.
