The Challenge of Gate Drive Isolation in Modern Power Systems
In real‑world power electronics projects, providing robust gate drive isolation is rarely straightforward. Engineers working on EV/HEV inverters, onboard battery chargers, or industrial motor drives typically encounter the same recurring frustrations:
- High‑voltage safety demands – IGBT and MOSFET gate drive circuits require isolation ratings of hundreds or thousands of volts, This forces designers to spend significant effort on creepage, clearance, and insulation coordination.
- Multiple floating supplies – In half‑bridge or full‑bridge topologies, high‑side switches need separate, floating gate drive power-a requirement that often multiplies component count and PCB complexity
- Thermal and reliability challenges – Automotive and industrial environments demand stable operation from -40°C to well above +100°C, where many traditional isolation components show significant performance degradation
- Signal integrity under switching noise – Fast‑switching IGBTs and SiC MOSFETs generate substantial dv/dt transients, which can corrupt gate drive signals through parasitic coupling in poorly designed isolation paths
- Space constraints – Modern power modules are packed into ever tighter enclosures, leaving little real estate for bulky isolation transformers
At the same time, automotive manufacturers require AEC‑Q200 qualification for all passive components used in vehicle electronics-a qualification that adds production traceability and reliability assurance but also narrows the pool of available solutions.
This creates a clear engineering gap: designs demand both high‑performance isolation and streamlined implementation, but conventional approaches force compromises on one front or the other.
Why Gate Driver Transformers Are Gaining Industry Adoption?
To address these challenges, the power electronics industry has been shifting toward integrated, pre‑qualified gate driver transformers. Instead of designing magnetics from scratch-calculating turns ratios, selecting cores, verifying isolation margins-engineers can now use off‑the‑shelf, AEC‑Q200 compliant transformers that combine:
- Galvanic isolation up to 4000Vrms (basic) and 600Vrms (continuous)
- Push‑pull or flyback topology support for efficient power transfer
- Automotive‑grade thermal performance across -40°C to +105°C
- Predictable parasitic parameters (leakage inductance, interwinding capacitance)
- Standardized foot‑print and pin‑out for straightforward PCB layout
This approach delivers several measurable advantages in real production environments.
1. Reduced Design Time
A pre‑qualified gate driver transformer eliminates weeks of magnetic design and prototyping. Engineers can select a component from a datasheet rather than iterating core materials and winding configurations.
2. Guaranteed Isolation Performance
Manufacturers of automotive‑grade gate driver transformers verify basic isolation up to 4000Vrms and continuous isolation at 600Vrms under production test conditions, backed by IATF16949 process controls. This removes the uncertainty inherent in hand‑wound or custom‑engineered magnetics.
3. AEC‑Q200 Compliance – Built for Automotive
Qualification to AEC‑Q200 Rev. E signals that a component has passed rigorous stress tests for temperature cycling, humidity, vibration, and long‑term reliability. For engineers targeting EV/HEV or commercial vehicle applications, using AEC‑Q200 components directly on the bill of materials streamlines both design validation and production release.
4. Compact Push‑Pull Topology for High‑Frequency Operation
Push‑pull transformers are inherently suited for high‑frequency gate drive and isolated DC‑DC converter applications operating in the 100kHz to 1MHz range. Their balanced flux characteristics minimize core saturation risk while enabling high power density.
5. Simplified BOM and Supply Chain
Using a single, standardized gate driver transformer across multiple gate driver channels reduces inventory complexity.It also lowers vendor management overhead.This is a tangible benefit for production‑oriented engineering teams.
Design Trend: From Component‑Level to System‑Level Reliability
The evolution of power electronics mirrors a broader shift observed in system‑level engineering disciplines. 】This includes isolation components for mission‑critical space and industrial applications.The focus is moving away from optimizing individual components in isolation and toward ensuring end‑to‑end system reliability with predictable, pre‑qualified building blocks.
As one market analyst noted, the radiation‑resistant power converter market-including isolation components for mission‑critical space and industrial applications-is projected to grow at a compound annual growth rate exceeding 9%, reaching into the billions by 2026. While aerospace demands radiation tolerance up to 300krad TID, the core principle remains the same: engineers want solutions that work consistently across extreme environmental conditions without requiring extensive custom design work.
In the automotive sector, where volume production demands repeatability and traceability, this trend has already become standard practice. Major suppliers now offer AEC‑Q200 qualified gate driver transformers as catalog items, reflecting an industry consensus that gate drive isolation is too critical to leave to one‑off designs.

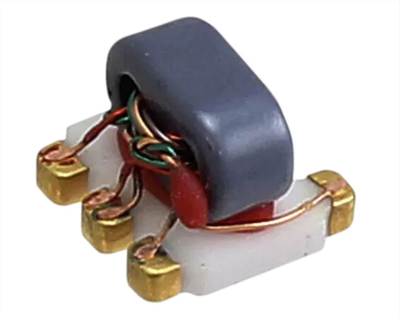

Shinhom GT0513: AEC‑Q200 Compliant Gate Driver Transformer for Automotive and Industrial Systems
The Shinhom GT0513 gate driver transformer is designed specifically for engineers who need compact, high‑reliability isolation in IGBT and MOSFET gate drive circuits, as well as battery management system (BMS) isolation for automotive and industrial power applications.
Built on a push‑pull topology and manufactured under IATF16949 quality management, the GT0513 is qualified to AEC‑Q200, ensuring consistent electrical and mechanical performance across production lots.
Key Isolation Advantages:
| Parameter | Value |
| Isolation Voltage (Basic) | 4000Vrms |
| Continuous Working Isolation | 600Vrms |
| Interwinding Capacitance | ≤159pF |
| Leakage Inductance | 200–350nH (typ.) |
| Primary DCR | ≤0.13Ω |
| Operating Temperature | Operating Temperature |
| Operating Temperature | AEC‑Q200 |
The GT0513 is manufactured under IATF16949 process controls and complies with RoHS, UL, CE, and CNAS certification standards, providing full material traceability for customers in regulated automotive and industrial supply chains.
Typical Integration Scenarios
The GT0513 gate driver transformer is well‑suited to a range of automotive and industrial power electronics applications:
- EV/HEV Inverters
Providing isolated gate drive signals to IGBTs or SiC MOSFETs in traction inverters, High isolation voltage and AEC‑Q200 reliability are mandatory here.
- Battery Management Systems (BMS)
Isolating communication channels between the high‑voltage battery pack and the low‑voltage controller.This applies to both main monitoring and redundant safety paths.
- Onboard Chargers (OBC) and DC‑DC Converters
Supporting isolated gate drive in power factor correction (PFC) stages, It also works for primary‑side switching circuits and secondary‑side synchronous rectification.
- Push‑Pull and Flyback Isolated Power Supplies
Acting as the core isolation element in DC‑DC converters that require reinforced or basic isolation between input and output stages.
- Industrial Motor Drives
Delivering reliable gate drive signals for IGBT‑based inverters in factory automation, servo drives, and uninterruptible power supplies (UPS).
Conclusion
As power systems become more demanding-higher voltages, faster switching speeds, tighter packaging, and more extreme thermal environments-the engineering focus is shifting from component‑level design to system‑level predictability. In gate drive isolation, this means moving away from custom magnetics or temperamental opto‑couplers and toward pre‑qualified, production‑ready solutions that work out of the box.
The Shinhom GT0513 gate driver transformer embodies this philosophy. With 4000Vrms basic isolation, AEC‑Q200 qualification, push‑pull topology support, and stable operation from -40°C to +105°C, it delivers the reliability and performance that automotive and industrial engineers demand-without the hidden cost of long magnetic design cycles.
For your next IGBT or MOSFET gate drive design, consider the simpler path. Start with a component that is already qualified, characterized, and ready for production.
