Magnetic bead belongs to electromagnetic interference noise element, also belongs to noise filter. They act as a series of resistors and inductors in a circuit. Their resistance and inductance vary with the frequency of the circuit. They act as high-frequency filters by exhibiting resistance as high frequencies pass through. The main material of magnetic beads is ferrite

The high frequency signal in the circuit consumes a lot of high frequency signal as it passes through the ferrite. It is because of the high frequency characteristics of ferrite that magnetic beads play a role in the circuit of high and low frequency resistance.

There are many types of magnetic beads, some of which have multiple holes. The passage of the wire can increase the impedance of the element (the square of the number of passes of the magnetic beads), but the noise suppression ability at high frequencies may not be as great as expected. Multiple series connected magnetic beads can be used.

When the ferrite magnetic bead is installed in the circuit, there is no need to set the ground point. This is the outstanding advantage of ferrite magnetic beads.

1.  R6H   Family

Through-hole Axial Wide Band Chokes

FEATURES:

• Regged construction
• Counter measures for FCC,VDE
• CSA,CE,VCC1
• EMI/RFI suppression
• High reliability
• Long term stability

APPLICATIONS:

• Telecommunication Equipment
• Wireless Communications Equipment
• Computer Products
• General E;ectronic Applications where EMI/RFI suppression is required

Series in this family

2. RH LEADED Family

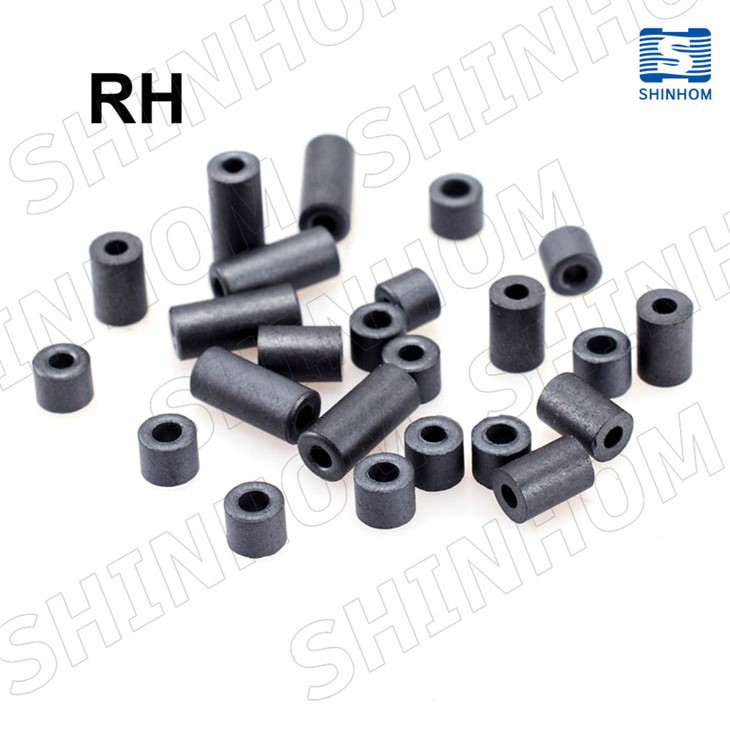

Bead Coresradial Tapping & Bulk Type

FEATURES:

• Ferrite Core
• Regged construction
• Counter measures for FCC,VDE
• CSA,CE,VCC1
• EMI/RFI suppression
• Small size ,Low Cost
• Operating Temperature:-25℃ to +85℃
• Storage Temperature: -55℃ to +125℃

APPLICATIONS:

• Noise Filtering
• Amplifiers
• Switching Regulators
• Power Supplies
• Triac Control Circuits
• SCR Control Circuits

Series in this family

3. RH Family

Bead Core

FEATURES:

• Ferrite Core Construction
• Rugged Leaded Design
• Meets FCC, VDE, CSA, CE, VCCI Standards
• Excellent EMI/RFI Suppression
• Wide Size Range Available
• Operating Temperature: -25℃ to +85℃
• Storage Temperature: -55℃ to +125℃

APPLICATIONS:

• Ferrite Core Construction
• Rugged Leaded Design
• Meets FCC, VDE, CSA, CE, VCCI Standards
• Excellent EMI/RFI Suppression
• Wide Size Range Available
• Operating Temperature: -25℃ to +85℃
• Storage Temperature: -55℃ to +125℃

Series in this family

4. RID Family

Double Apertures Cores

FEATURES:

• Ferrite Core Construction
• Rugged Leaded Design
• Meets FCC, VDE, CSA, CE, VCCI Standards
• Excellent EMI/RFI Suppression
• Wide Size Range Available
• Operating Temperature: -25℃ to +85℃
• Storage Temperature: -55℃ to +125℃

APPLICATIONS:

• Noise Filtering Circuits
• Switching Power Supplies
• Amplifiers
• Triac & SCR Control Circuits
• Power Supply Units

Series in this family

5. RWW   Family

Coilform(Slug Core With Leads)

FEATURES:

• High EMI Suppression – Effectively filters high-frequency noise and improves circuit stability.
• Low DC Resistance – Ensures minimal impact on signal and power transmission.
• Wide Frequency Range – Suitable for broadband applications.
• Compact & Versatile – Available in multiple sizes to fit different cable diameters and PCB layouts.
• Reliable Performance – Maintains characteristics under varying temperature and environmental conditions.

APPLICATIONS:

• Power supply lines in consumer electronics
• Data and signal lines in computers and communication devices
• Automotive electronics and control modules
• Industrial equipment with high-frequency noise concerns
• EMI-sensitive instrumentation and measurement systems

Series in this family

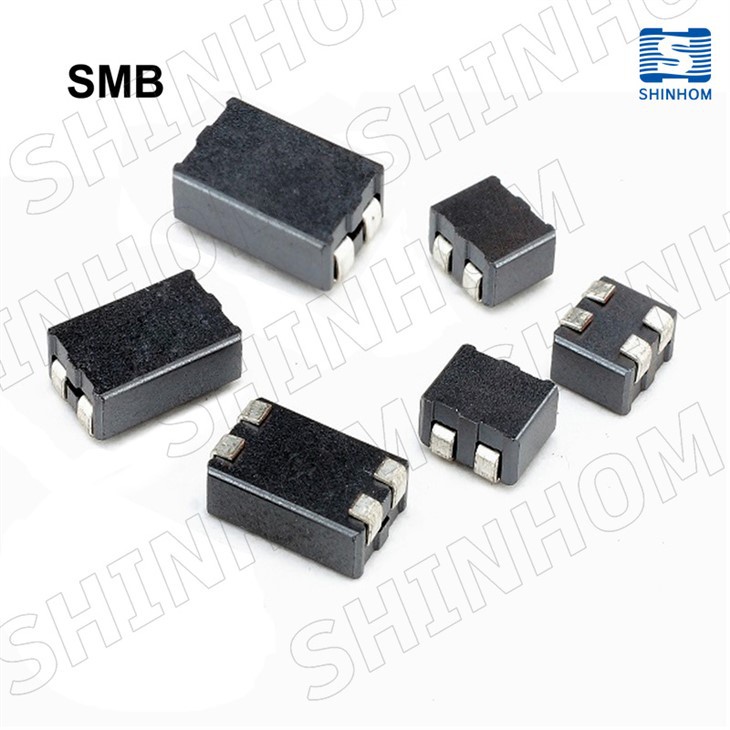

6. SMB  Family

High Current Ferrite Beads For Emi Suppression

FEATURES:

• High Current Capability – Supports currents up to 15A, suitable for power-intensive circuits.
• Effective EMI Suppression – Impedance optimized at 25MHz and 100MHz to filter high-frequency noise.
• Compact SMD Design – Space-saving surface-mount form factor for flexible PCB layouts.
• Wide Selection – Multiple types and sizes to meet diverse application requirements.
• Reliable & Stable – Maintains performance under varying operational conditions.

APPLICATIONS:

• Power supply lines for consumer electronics and industrial devices
• High-current data and signal lines in computing and communication equipment
• Automotive electronics requiring EMI reduction
• DC-DC converters and high-current control modules
• EMI-sensitive instrumentation and measurement systems

Series in this family

7. SMB3H  Family

Multiline Suppressor Beads

FEATURES:

• High Current Handling – Suitable for circuits with large current requirements.
• Excellent EMI Suppression – Reduces high-frequency noise effectively.
• Low DC Resistance – Minimal impact on signal and power lines.
• Compact SMD Package – Saves PCB space, easy to mount.
• Reliable Performance – Stable characteristics across temperature and environmental conditions.

APPLICATIONS:

• Power supply lines in consumer electronics and industrial devices
• High-current data and signal lines in computers and communication equipment
• Automotive electronics and control modules
• DC-DC converters and power management circuits
• EMI-sensitive instrumentation and measurement systems

Series in this family

8. SMB4B Family

SMD Power Bead

FEATURES:

• Small size, high current, high performance.
• Low DCR, excellent EMI suppression capability.
• Suitable for surface mounting equipment.
• Operating temperature: -40℃ to 105℃

APPLCATIONS:

• VTR, digital set-top box, LCD Monitor
• DC/DC converters, xDSL
• Wireless communication equipment

Series in this family

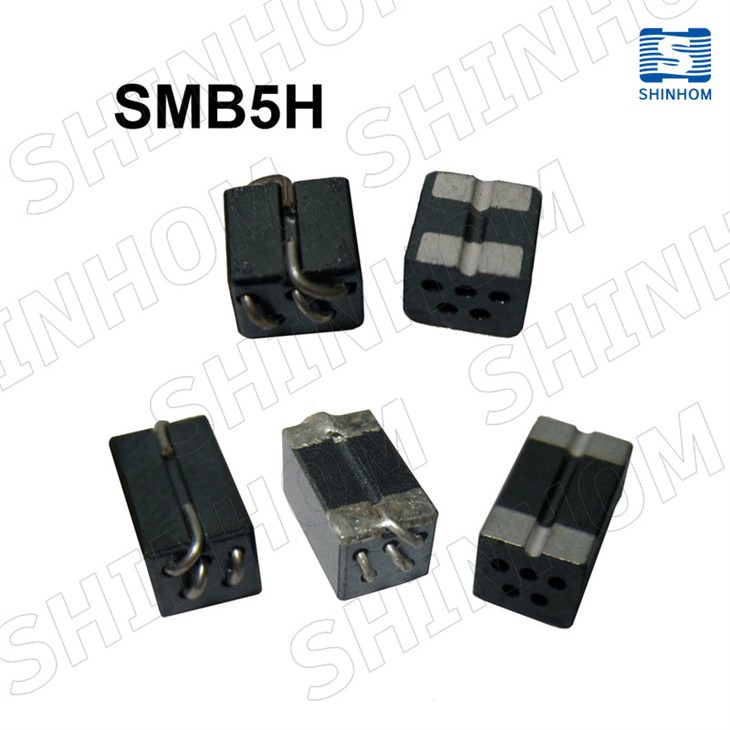

9. SMB5H Family

SMD EMI Suppression 5-hole ferrite bead

FEATURES:

• High Current rating
• Low DCR and high IDC beads inductor
• Compact and simple design with high reliability
• Very good SMD solution for traditional wide band choke
• Through-hole axial ferrite beads for EMI suppression
• Surface-mount wire wound beads with high frequency and EMI suppression

APPLCATIONS:

• Modems, PDP, LCD, and TVs converters
• Mobile radios, DC/DC converters
• Noise filtering devices
• Track and SCR control circuits
• Wireless communication equipments
• Computer disk drive and PC board to filter the EMI from outside sources such as car radios, mobile phones and VCRs

Series in this family

10.  T  Family

Toroidal Core

FEATURES:

• Ferrite Core Construction
• Toroidal (Ring) Shape Design
• Meets FCC, VDE, CSA, CE, VCCI Standards
• Excellent EMI/RFI Suppression
• Wide Size Range Available
• Operating Temperature: -25℃ to +85℃
• Storage Temperature: -55℃ to +125℃

APPLICATIONS:

• Noise Filtering Circuits
• Switching Power Supplies
• Amplifiers
• Triac & SCR Control Circuits
• Power Supply Units

Series in this family

11. R8H-4TS Family

FEATURES:

• High Current Capacity – Supports heavy current loads efficiently.
• Superior EMI Suppression – Effectively filters high-frequency noise.
• Low DC Resistance – Ensures minimal voltage drop and stable signal transmission.
• Compact SMD Design – Saves PCB space, easy for surface mounting.
• Stable & Reliable – Maintains performance across temperature and environmental variations.

APPLCATIONS:

• Power supply lines in consumer electronics and industrial devices
• High-current data and signal lines in computing and communication systems
• Automotive electronics and control modules
• DC-DC converters and power management circuits
• EMI-sensitive instrumentation and measurement systems

Series in this family

12.SMT Coupled Inductor SMB Series

FEATURES:

• Low profile, SMD type for space-saving PCB layout
• Magnetically shielded construction minimizes EMI interference
• High current handling capability with low DCR for minimal power loss
• High energy storage per phase with excellent coupling performance
• Multiple package sizes available: 0620, 0630, 1040, 1350, 1375, 1440, 1480, 1490, 1740, 1970
• Inductance range from 80 nH to 420 nH per phase
• Operating temperature range: -40°C to +125°C (including self-temperature rise)
• Provided with embossed carrier tape packing for automated assembly
• RoHS compliant and halogen free
• Customized inductors available to meet exact requirements

APPLICATIONS:

• Multi-phase voltage regulator modules (VRMs)
• High power density VRMs for server and desktop applications
• Central processing unit (CPU) and graphics processing unit (GPU) power supplies
• Application specific integrated circuit (ASIC) power delivery
• Data networking and storage systems
• High current Point-of-Load (POL) modules
• Vcore regulators
• DC-DC converters and DC-AC inverters
• Power source circuits

SHINHOM is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Through Hole EMI Filter Beads products.
