Surface mounted magnetic beads are used to suppress high frequency noise and peak interference on signal lines and power lines, and have the ability to absorb electrostatic pulses.
Magnetic bead inductor has the advantages of small size, light weight and low price, so it is widely used in electronic circuits. For example, in mobile phones, computers and other electronic products, magnetic bead inductance is used for filtering, voltage regulation, noise reduction and other aspects. In addition, magnetic bead inductors can also be used in wireless chargers, electric car chargers and other fields.
Advantages of surface mounting:
Smaller size and greater design flexibility
Easy to assemble
Lower cost
| Product families | 1. SMB ✉ | 2. SMB3H ✉ | 3. SMB5H ✉ | 4. SMB1010 ✉ | 5. SMBXX1208 ✉ |

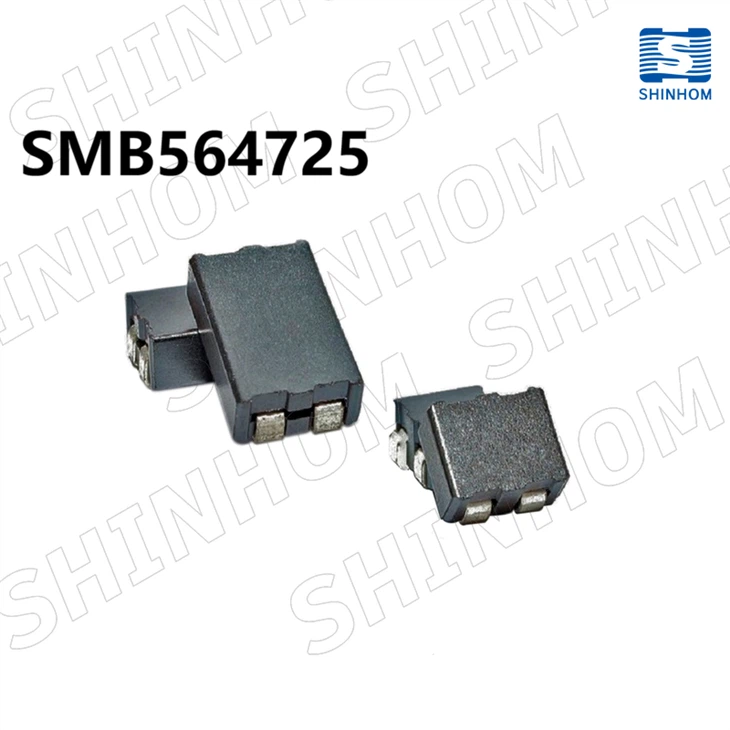

High Current Ferrite Beads For EMI Suppression
FEATURES:
- High impedance performance for effective EMI suppression
- Supports high current up to 15A max
- Low DC resistance for minimal power loss
- Stable performance at 25MHz and 100MHz
- Compact SMD design for space-saving PCB layout
- Suitable for high-frequency noise filtering applications
APPLCATIONS:
- Power supply circuits
- DC/DC converters
- Consumer electronics
- Communication equipment
- Automotive electronics
- Industrial control systems

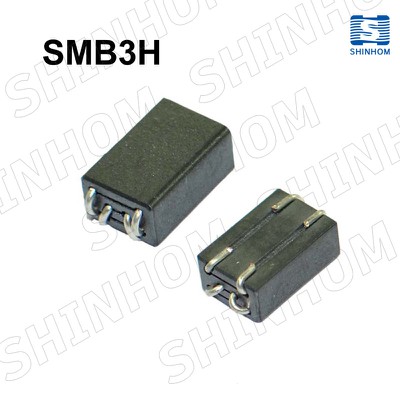

Multiline Suppressor Beads
FEATURES:
- Multiline EMI suppression for signal and power lines
- High impedance performance at 25MHz and 100MHz
- Supports both SMD and DIP mounting
- Compact design for space-saving PCB layout
- Stable electrical performance and reliability
- Multiple sizes and configurations available
APPLCATIONS:
- Data and signal line noise suppression
- Power supply filtering
- Communication equipment
- Consumer electronics
- Industrial control systems
- Automotive electronics

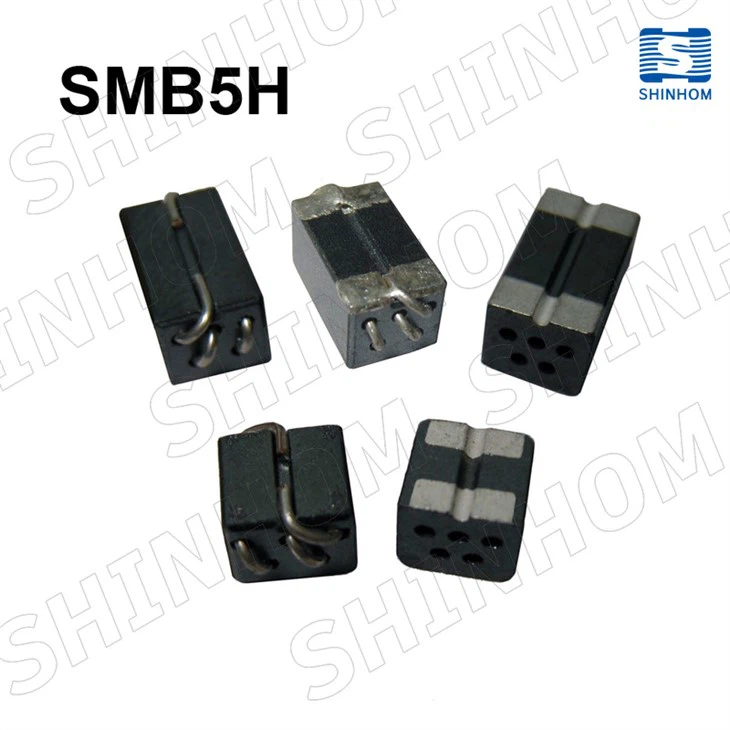

SMD EMI Suppression 5-hole ferrite bead
FEATURES:
- High Current rating
- Low DCR and high IDC beads inductor
- Compact and simple design with high reliability
- Very good SMD solution for traditional wide band choke
- Through-hole axial ferrite beads for EMI suppression
- Surface-mount wire wound beads with high frequency and EMI suppression
APPLCATIONS:
- Modems, PDP, LCD, and TVs converters
- Mobile radios, DC/DC converters
- Noise filtering devices
- Track and SCR control circuits
- Wireless communication equipments
- Computer disk drive and PC board to filter the EMI from outside sources such as car radios, mobile phones and VCRs
SMD Ferrite bead array
FEATURES:
- 4-in-1 integrated ferrite bead array saves board space
- High current rating up to 6A
- Low DCR minimizes power loss
- Stable impedance performance at 25 MHz and 100 MHz
- RoHS compliant and environmentally friendly
APPLCATIONS:
- Power line noise suppression
- DC-DC converters
- Automotive electronics
- Industrial control systems
- Consumer electronics
- Communication equipment

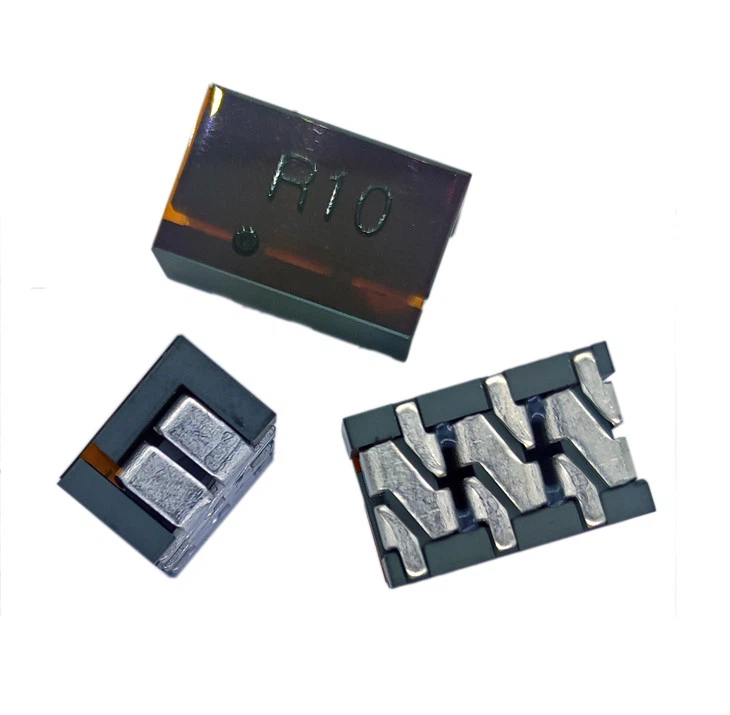

Multi-phase Power Inductors
FEATURES:
- High current multi-phase inductor
- 100 nH per phase coupled inductor
- 12 mm wide x 8.5 mm high footprintsurface mount package with 12.5 mm.
- 18.5 mm,24.5 mm and 36.5 mm lengths
- Ferrite core material
- Moisture Sensitivity Level (MSL): 1
APPLICATIONS:
- For exclusive use with Maxim? Multi-phase controllers
- Voltage Regulator Modules (VRMs) and highpower density VRMs
- Server and desktop
- Central processing unit (CPU)
- Graphics processing unit (GPU)
- Application specific integrated circuit (ASIC)
- Data networking and storage systems
- High current Point-of-Load (POL) modules
- Vcore regulators
SHINHOM is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our SMD Ferrite Bead Inductors products.
