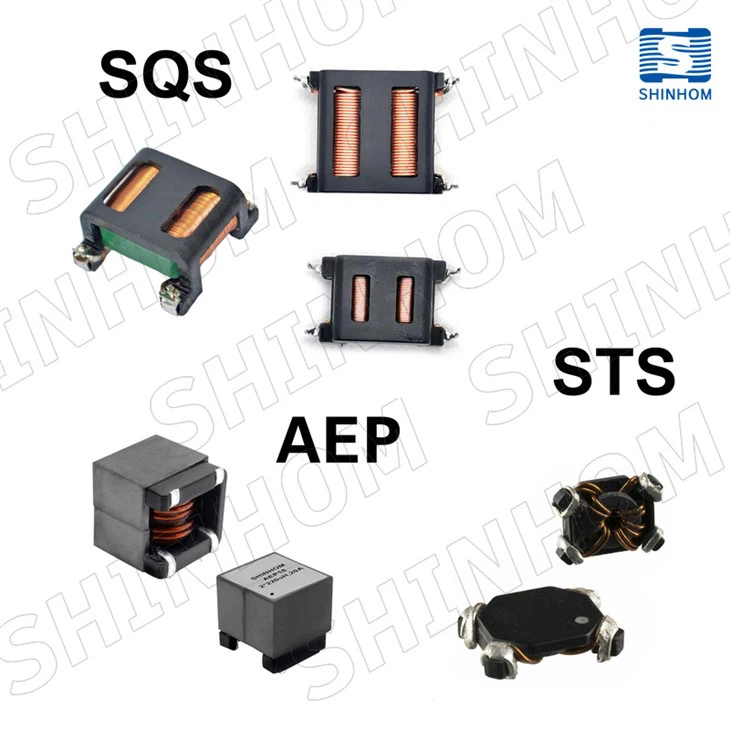

SMD Common Mode Chokes

SMD Common Mode Choke are often used to filter common-mode electromagnetic interference signals in switching power supplies of computers. In the board design, the common-mode inductor also plays the role of EMI filtering, which is used to suppress the electromagnetic wave generated by high-speed signal lines.

In general, pay attention to select the frequency band required to be filtered at the same time, the larger the common-mode impedance is, the better. Therefore, when selecting the common-mode inductor, it is necessary to look at the device data, mainly according to the impedance frequency curve. In addition, attention should be paid to the impact of the differential mode impedance on the signal during selection, mainly focusing on the differential mode impedance, especially the high-speed port

Advantages of surface mounting:

· Excellent impedance characteristics

·Low profile very effective in space conscious applications

·Low resistance filters have been designed for excellent electrical isolation

·High quality toroidal core

1.  CM Family  ✉

SMD Commonmode Line Filter

FEATURES:

· Ferrite Core bobbin construction

· High frequency and Large current

· Excellent Mechanical Strength

· Excellent Solderability

· Excellent Frequency performance

· Low Profile and Low cost

·Operating temperature: -40℃ to +105℃

·Storage Temperature: -40℃ to +105℃

APPLCATIONS:

· Video Cameras

· Communication System

· Automotive Systems

· Liquid Crystal Televisions

· Hard Disk Drives

· Network Systems

· Computer Peripheral Equipment

Series in this family

 2. SF Family  ✉

EMI Line Filter

FEATURES:

· High common mode impedance at high frequency

· AEC-Q200 compliant,Grade 1

· Manufactured in TS/IATF 16949 production lines

· Excellent impedance characteristics

·Low profile very effective in space conscious applications

·Low resistance filters have been designed for excellent electrical isolation ·High quality toroidal core

·Lead free construction

·RoHS-compatible

 APPLCATIONS:

effects excellent noise suppression performance.

· Multimedia devices

· Automotive applications such as ADAS,I nfotainment, Sensing, TCU

· Automotive Ethernet

· Common mode noise suppression of signal lines in high speed and high density digital equipment such as personal computers and peripherals.

Series in this family

 3. SQD Family  ✉

Surface-mount Common Mode Chokes

FEATURES:

· Ferrite Core bobbin construction

· High frequency and Large current

· Excellent Mechanical Strength

· Excellent Solderability

· Excellent Frequency performance

· Low Profile and Low cost

· A chip-type common mode filter for large current applications.

Common mode impedance surpasses 300 to 1000Ω at 100MHz.

Noise is greatly suppressed.

·Operating temperature: -40℃ to +125℃

·Storage Temperature: -40℃ to +125℃

APPLCATIONS:

Used for power line noise suppression for any electronic devices.

Used to counter adapter/battery line noise for relatively large elec-tronic devices such as notebook PCs,

stand-alone word proces-sors, etc.

Series in this family

4. SQS  Family   ✉

SMD High Current Flat Wire Common Mode Choke

FEATURES:

· Compact size, low DCR, low leakage due to square core.

· High permeability material, High impedance at low frequency.

· High attenuation to noise, due to low stray capacitance.

· Flammability tested to UL 94 V-0.

· Low cost, high consistency with automated production.

· RoHS, REACH compliance, Halogen free available.

· High withstanding voltage between windings:2400VAC /60 sec.

· High Insulation resistance 100MΩ Min@ 500VDC between windings.

· Operating temperature:-40℃~+125℃ (Including coil temperature rise).

· Storage temperature:- 40℃~ +85℃.

APPLICATIONS:

· Solutions for use in a wide array of power supply circuits.

· High desity switching mode power supply devices.

· Ideal for use in consumer electroinics and industrial

applications: LCD TV, Battery chargers, Power Adapter,

Home appliances.

· Space saving for existing Common Mode Chokes.

Series in this family

 5. STC Family  ✉

Common Mode Chokes

Toroidal common mode inductor is a special inductor,

which is widely used in power circuits of wireless communication

and electronic equipment. Toroidal common mode inductors are

favored by many engineers because of their small size and low cost

and high inductance value.

Because of its unique structure, Toroidal common mode inductors

can overcome the problems existing in traditional inductors, such as

large volume, heavy mass, large power loss, short life, etc. In addition,

it also has good electromagnetic compatibility, can be used in different

environments, not susceptible to external electromagnetic noise.

In addition, Toroidal common-mode inductors have good thermal stability

and can operate in high temperature environments without changing their

inductance value due to temperature changes. In addition, its insulation

performance is also better, can effectively avoid short circuit and heat loss.

The advantages of Toroidal common mode inductors are not only reflected

in their physical structure, but also in their electrical properties.

Series in this family

 6. STR Family  ✉

SMD Line Filter

FEATURES:

· SMD Housing

· High Frequency Design

· Excellent Mechanical Strength

· Excellent Solderability

· High Reliability

· Low Profile

·Wire wound constructure common mode choke with best

EMI suppression effect high impedance but very high rated current and low DCR.

APPLICATIONS:

· VCRs

· Video Cameras

· Communication System

· Automotive Systems

· Liquid Crystal Televisions

·Hard Disk Drives

·Suppression of common-mode interferences

·Compact electronic ballasts in lamps

·Compact switch-mode power supplies

· Network Systems

· Computer Peripheral Equipment

·Preventive measure against common mode noise radiation emissions from power line or else.

·Best for high current circuit such as car, wireless charging and power device design.

Series in this family

 7. STRF Family  ✉

SMT Common Mode Chokes

FEATURES:
· Toroid core
· SMD construction
· Excellent Mechanical Strength
· Excellent Solderability
· High Reliability
· Low Profile
· Common mode chokes for AC Power lines
· High impedance to minimize common mode noise
· Excellent EMI performance
· Operate temperature range :-40 ℃to + 125℃(Including self temperature rise)
· Storage temperature range: -40℃to +125℃

APPLICATIONS:
· DC/DC, AC/DC converter
· Filter and Noise suppression
· Communication System
· Automotive Systems
· Liquid Crystal Televisions
· Network Systems
· Computer Peripheral Equipment

Series in this family

8. STS Family  ✉

SMD Common Mode Chokes

FEATURES:

·Inductance range from 4.5uH to 205uH

·Current range up to 7.0 Amps

·High resonant frequency

·Meets UL94V-0 flammability standard

·Ferrite core material

. Operating temperature: -40℃ to +125℃

Storage temperature: -40℃ to +105℃

APPLICATIONS:

· EMI filters

· DC-DC brick power supplies

· Discrete output supplies

· Discrete and point-of-use power supplies

Series in this family

9. SDRH-D Family ✉

Dual Winding,Shielding Inductors

FEATURE:

Tight coupling of 2 windings

Laser welded joint

Excellent mechanical and thermal

robustness

Flexible use

1:1 transformer

Two single inductors in series or parallel

APPLICATIONS:

As a transformer: SEPIC,flyback

As an inductor:buck,boost,coupled inductor

DC-DC converters

VRM inductor for CPU and DDR power supplies

Input and output filter chokes

Widely used in buck converter, laptop, displayer,

network communication equipment, and etc.

Series in this family

10. SBA Family ✉

SMD Multi-layer Common Mode Filter

FEATURES:

·Effective for suppressing common mode noise

 and almost no effect for high speed differential data line

·Ultra low profile

·Ceramic multilayer type SMD component

·Non-polarized product

·It is a product conforming to RoHS directive

·Operating Temperature Range -40℃ to +85℃

APPLICATIONS:

·LVDS lines in notebook computers

·USB2.0, IEEE1394, DVI, HDMI lines in PDP, LCD TV,

 DVD Player, PC, Audio player, DSC

·MDDI, MIPI in mobile phone

Series in this family

11. SDF Family ✉

SMT Data Line EMI Filters

Data line filtering is one solution to minimize the impact of noise sources on data lines As data rates explode with new digital technologies, data lines continue to be affected by EMI and noise. The frequency of the noise in these data lines increases with the switching speed and data rates.

Data line common mode chokes provide general purpose EMI filtering from lower-speed data rates to ultra-high speeds such as USB3.x, HDMI2.0, and IEEE 1394. Eliminate CM noise in CAN, CAN FD, and FlexRay automotive bus systems.

FEATURE:

Exceptional common mode noise attenuation from 15 MHz to 300 MHz;

passes signal line data below 300 MHz with minimal attenuation

DC current capacity of 500 or 100 mA.

Excellent electrical isolation – 300 Vrms for 1 minute

Core material Ferrite

Ambient temperature –40°C to +85°C

Storage temperature Component: –40°C to +85°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat Max three 40 second reflows at +260°C,

parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C / 85% relative humidity)

Packaging 1000/13″ reel Plastic tape: 16 mm wide, 0.46 mm thick, 12 mm pocket spacing, 4.5 mm pocket depth

Series in this family

12. AEP Family ✉

Surface Mount 2 Line Common Mode Choke

EP18 & EP22 Platforms Surface Mount

19.5x19.8x19.2mm & 23.5x24.3x22.7mm selectable

High current application

1000Vrms Isolation (380Vrms continuous)

Operating temperature range -40℃ to +125℃

Series in this family

13. LQH-D Family ✉

FEATURES:

· 0.15A to 6A ratings with low temperature rise (ΔT≤20℃ @ rated current)
· 0.4μH to 6.0μH single-line filters
· 100MHz to 1400MHz noise suppression range
· Compact SMD housing: 5.0×4.5×2.5mm (LQH2010D) / 5.0×5.0×4.8mm (LQH2020D)
· Ultra-low DCR: Down to 9mΩ (LQH2010D-101Y)
· Wide temperature operation: -40℃ to +125℃
· RoHS compliant

COMMON APPLICATIONS:

· EMI suppression in power line equipment
· Portable device signal filtering
· DC/DC converter noise elimination
· Communication system interference control
Complies with FCC/VCCI/CISPR/FTZ standards for electromagnetic noise reduction

Series in this family

15. TPER Family

FEATURES：

· 10A to 39A ratings with low temperature rise (ΔT≤50°C @ rated current)
· 120μH to 1400μH dual chokes (±35% tolerance @10kHz)
· 100kHz to 3MHz common mode resonance (per impedance-frequency curves)
· High isolation voltage: 1500Vrms (TPER25) / 1000Vrms (TPER19)
· Robust SMT housing: ER19 (24.9×21.6×16.9mm) & ER25 (30.5×27×18mm) platforms
· Ultra-low DCR: Down to 1.4mΩ (TPER25-161Y)
· Wide temperature operation: -40℃ to +150℃ (TPER25 series)
· Tape and reel packaging: EIA481 compliant

COMMON APPLICATIONS:

· DC/DC & AC/DC line noise suppression in server PSUs/industrial SMPS
· Automotive EMC solutions for EV chargers & ADAS systems
· LCD/PDP TV power filtering
· 5G base station signal integrity
· Computer peripheral equipment (HDD/SSD controllers)
Complies with FCC, VCCI, CISPR, FTZ standards for electromagnetic noise elimination

Shinhom is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our SMD Common Mode Choke products.
