| Product families | 1. SBL-G | 2. SBL-H | 3. SBL-M | 4.SBL-W |
| 5. SBL-Y | 6.SBL-U | 7. SBA |

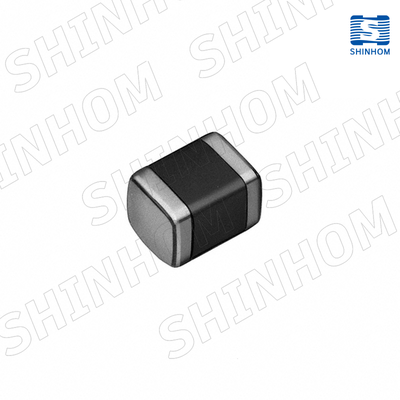

Multilayer Chip Ferrite General Bead
FEATURES:
- Multilayer monolithic construction yields high reliability
- Excellent solderability and heat resistance for either flow or reflow soldering
- Substantial EMI suppression over a wide frequency range
APPLICATIONS:
- Noise suppression in digital equipment such as computer and its peripheral devices,
- DVD, camera, OA,equipments, etc

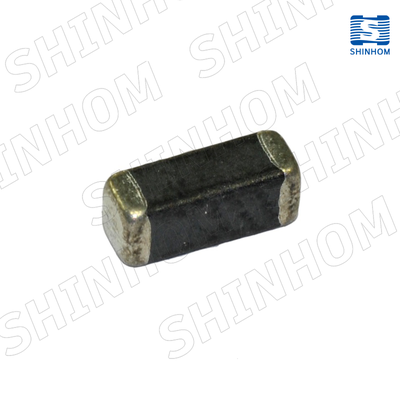

Multilayer Chip High Frequency Bead
FEATURES:
- Multilayer monolithic construction yields high reliability
- High frequency noise countermeasure
- Suitable for ultra high speed circuit
APPLICATIONS:
- Computers, mobile communication system products
- Noise suppressing in ultra high speed circuit
Multilayer Chip Power Bead
FEATURES:
- Multilayer monolithic construction yields high reliability
- A unique terminal electrode structure ensures high permissible current, 6A max.
- High impedance over a vide frequency range
APPLICATIONS:
- Video equipment, audio equipment
- Automotive electrical equipment
- Communication equipment
- OA equipment and other
Multilayer Chip Large Current Bead
FEATURES:
- Multilayer monolithic construction yields high reliability
- A unique terminal electrode structure ensures high permissible current, 6A max.
- High impedance over a vide frequency range
- Video equipment, audio equipment
- Automotive electrical equipment
- Communication equipment
- OA equipment and other
APPLICATIONS:
- Video equipment, audio equipment
- Automotive electrical equipment
- Communication equipment
- OA equipment and other
Multilayer Chip Sharp Bead
FEATURES:
- Multilayer monolithic construction yields high reliability
- Has sharp impedance characteristics at desirable frequency
- Substantial EMI suppression over a wide frequency range
- Does not affect the signal frequency
APPLICATIONS:
- Computers and peripherals
- Digital cameras, TV set
- Communication equipment
Multilayer Chip Sharp Bead
FEATURES
- Unique terminal electrode structure supports a permissible current up to 6.0 A (max.)
- High impedance and effective EMI suppression over a wide frequency range
- Suitable for both reflow soldering and wave soldering
- Multilayer monolithic construction ensures high reliability
APPLICATIONS
- Noise suppression in power lines of electrical equipment
- Extra‑large current signal lines in communication equipment, computers, and LCD TVs
SMD Multi-layer Common Mode Filter
FEATURES:
- Effective for suppressing common mode noise and almost no effect for high speed differential data line
- Ultra low profile
- Ceramic multilayer type SMD component
- Non-polarized product
- It is a product conforming to RoHS directive
- Operating Temperature Range -40℃ to +85℃
APPLICATIONS:
- LVDS lines in notebook computers
- USB2.0, IEEE1394, DVI, HDMI lines in PDP, LCD TV,
- DVD Player, PC, Audio player, DSC
- MDDI, MIPI in mobile phone
Series in this family
| Product Series | Impedance100MHz(Ω) | DCR(Ω) | IDC (mA) | |
| SBA0302-2-900 | 90±25% | 6.0 | 100 | ✉ |
| SBA0805-4-101 | 100±25% | 4.0 | 100 | ✉ |
SHINHOM is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Multilayer Chip Beads products.
