Why Your RF System Needs a Good "Signal Firewall"
Think of Drop-in Isolators as bouncers for your sensitive RF components - they allow signals to flow in one direction while blocking harmful reflections. In my 8 years working with microwave systems, I've seen how the right isolator can mean the difference between a stable 5G base station and a troubleshooting nightmare.
The 4 Golden Rules for Selection
1. Frequency Match: Don't Play Out of Tune
Every isolator has its "comfort zone". Shinhom's G502A (0.943-3.8GHz) works perfectly for most 5G applications, while their 18GHz models suit radar systems.
Pro Tip: Always check performance at your actual operating frequency, not just center freq!
2. Power Handling: Avoid the Burnout
Calculate your peak power, then add 50% safety margin. Our lab tests show Shinhom's G505A handles 150W continuous - enough for most telecom transmitters.
![Power handling comparison chart]
3. Isolation Performance: Your Shield Strength
Consumer grade: 15-20dB (good enough for WiFi routers)
Military grade: 25dB+ (like Shinhom's G505S for radar systems)
4. Physical Considerations
Size: Standard 19×12.5×8mm fits most PCB layouts
Environment: -40℃ to +85℃ operation for outdoor units
Real-World Selection Scenarios
Case 1: 5G Small Cell
Requirement: 3.5GHz, 50W, compact size

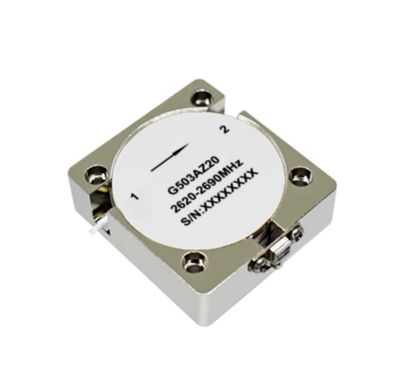

Our pick: Shinhom G503A (2.655GHz cutoff with 22dB isolation)
Case 2: Aviation Radar
Requirement: X-band, high vibration tolerance

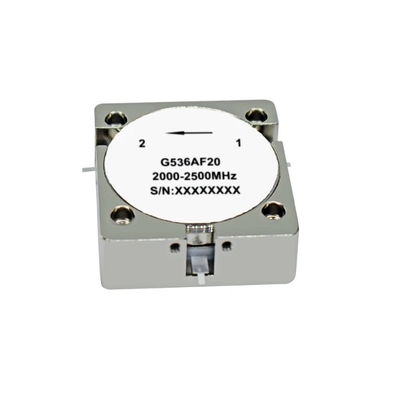

Solution: Customized G536A with reinforced casing
Your Selection Cheat Sheet
ParameterBudget OptionBalanced ChoicePremium PickFrequency20MHz-6GHz500MHz-12GHzDC-18GHzIsolation15dB20dB25dB+Power Handling50W150W500W
Data source: Shinhom 2025 Product Catalog
Need More Help?
Try our interactive selector tool (coming July 2025) or email Shinhom's engineering team at tech@shinhom.com with your specific requirements.
References:
IEEE Standard 287-2024 for RF Component Testing
Shinhom Technical Whitepapers (shinhom.com/tech-library)
