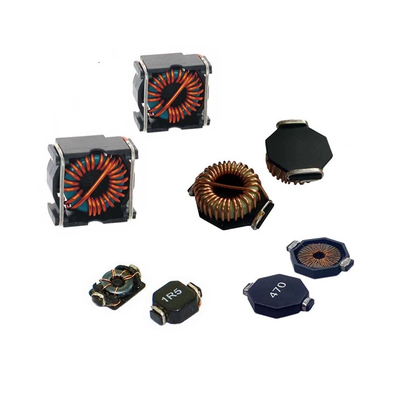

A Choke Coil is an inductive component that mainly controls the direction and magnitude of current flow. When direct current or alternating current passes through a choke coil, its inductive effect generates a counter electromotive force that impedes the change in current, thereby achieving the effects of current limiting and suppressing high-frequency interference.
Classification of Choke Coils
Choke coils can be classified based on their application into power choke coils, signal choke coils, filter choke coils, etc.; based on structure, they can be categorized as core-type choke coils, coreless choke coils, etc.
Parameters of Choke Coils
The two key parameters of a choke coil are its inductance value and DC resistance. The inductance value determines the choke coil's ability to control current, while resistance affects the efficiency of conducting circuits and determines the power consumption of the choke coil.
Applications of Choke Coils
Choke coils are widely used in various electronic circuits such as inverters, converters, DC-DC converters, filters, etc. In these circuits, choke coils are used to limit the rate of current change, protect electrical equipment and circuit components, eliminate electromagnetic interference, and improve circuit efficiency.
Difference Between Choke Coils and Common Mode Inductors
Choke coils and common mode inductors are often confused, but they are actually two different types of inductive components, although their usage scenarios may sometimes be similar.
Definitions of Choke Coils and Common Mode Inductors
A choke coil refers to an inductive component that only allows current to pass through one of its windings, primarily for current limiting, typically having higher inductance and resistance values. Common mode inductors, on the other hand, refer to inductors shared between two lines, mainly used for isolation and interference suppression, usually with lower inductance and resistance values.
Structure of Choke Coils and Common Mode Inductors
Choke coils can be single-coil or dual-coil types. Single-coil choke coils consist of a single wound wire, while dual-coil choke coils are formed from two adjacent wires wound together. Common mode inductors are typically made with coils wound between two magnetic material rings, with the winding wires passing through the gaps in the magnetic material's holes.
Applications of Choke Coils and Common Mode Inductors
Choke coils are commonly used to limit current magnitude and direction, for example, in DC-DC converters, inverters, etc. Common mode inductors are primarily used for isolating different signal sources or influences and find wide applications in wireless circuits and communication systems.
