Have you ever spent months perfecting an electronic design only to see it fail at the last moment due to electromagnetic compatibility testing? The most common yet often overlooked culprit behind electromagnetic interference (EMI) issues isn't the core circuit design-it's the AC power cord. A high-quality AC power cord EMI filter is therefore crucial. It's not just a compliance component; it's the guardian of your product's performance and reliability.
Why Your Equipment Needs an EMI Filter
Think of an EMI filter as the gatekeeper at your electronic device's power input. It actively blocks harmful high-frequency noise from entering the device (where it could disrupt operation) or leaking out (contaminating power lines and interfering with other equipment). This isn't just about passing regulatory tests like CISPR 32-it's about ensuring your product operates reliably in electrically noisy environments.
It's Not Just a Filter; It's a Strategic Choice
Selecting an EMI filter goes beyond just checking the rated current and voltage. From the product specifications, we see that filters are meticulously categorized for different applications for a reason. For instance:
Medical Equipment: A PE2000 series filter for a patient monitor isn't chosen just for its 1-10A rating. The critical parameter here is often low leakage current to ensure patient safety, a key consideration for standards like IEC 60601-1.
Industrial Drives & Inverters: A robust PE3000 three-phase filter is designed to handle the harsh noise generated by motor drives and frequency converters in industrial automation. Its design focuses on high reliability and effective suppression in noisy environments.
Shielded Rooms & Military Applications: The DL-series ultra-low leakage filters are in a league of their own. They offer insertion loss up to 100dB from very low frequencies, which is absolutely critical for data security and signal integrity in sensitive facilities. This isn't a standard component; it's a custom-engineered solution.
The Pitfall: Why a "Compatible" Filter Might Still Fail You
Here's the insider secret that datasheets don't always highlight: a filter's performance is measured in a perfect 50-ohm lab environment. Your actual power supply and equipment don't present a 50-ohm impedance. This mismatch can render a filter that looked great on paper almost useless in your specific application.
Factors like internal PCB layout, cable routing, and grounding can drastically alter the filter's effectiveness. This is why sometimes, even with a filter, your system might still fail pre-compliance tests. The solution isn't just a filter; it's the right filter, selected with the entire system in mind.
How to Make the Right Choice: A Practical Approach
Define Your Environment: Is it a consumer appliance (PE2600 series), a datacom server (PE2100 series), or a three-phase CNC machine (PE3120 series)? The application dictates the noise profile and safety requirements.
Look Beyond Current & Voltage: Scrutinize the Leakage Current (vital for medical and consumer touch devices), Insertion Loss graphs (understanding they are a benchmark, not a guarantee), and Safety Certifications.

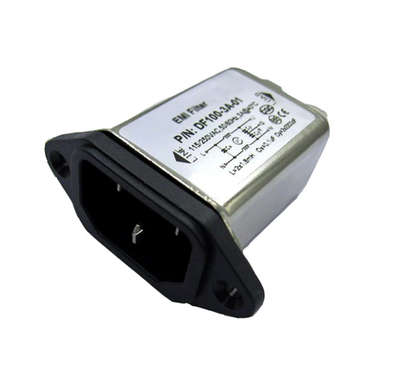

Consider the Form Factor: Do you need a compact PCB mount filter, a chassis-mounted IEC inlet filter (PE8000 series), or a high-current screw-terminal block (PE2100 series)? The mechanical design is part of the electrical solution.
Plan for the Worst Case: Always derate the current. A 10A filter might be best used at 6-7A in a warm, enclosed space to ensure long-term reliability.
The Shinhom Advantage: Your Filter, Your Solution
At Shinhom, we understand that your challenges are unique. Our extensive range-from general-purpose LC2000 series filters to specialized military-grade (PE6000) and shielded room filters-is built on deep application knowledge. We don't just sell components; we provide EMI suppression solutions tailored to the real-world complexities of your industry.
Struggling with a tricky EMI problem or need help selecting the perfect filter for your next project? Our engineering support team is ready to help you navigate these challenges.
Reach out to us today at sales@shinhom.com, and let's ensure your next design is not only compliant but exceptionally robust.
