Air Coil Inductor,A type of inductor or a wire coil without a magnetic core in the coil is known as an air core inductor or air coil inductor. In this inductor, an air core ensures a lower peak inductance, however, it also decreases the energy losses associated by means of ferrite inductors. The lack of core losses permits air core inductors to function at maximum frequencies.
These types of inductors are utilized whenever the amount of inductance is less required and they do not have a core loss because there is no core. However, the number of turns in this inductor should be more as compared to other inductors which have the core. Generally, ceramic inductors are frequently called air-core inductors. These inductors provide efficient solutions especially for switch mode magnetic requirements when focusing on high frequency, high linearity & reduced core loss. The air core inductor's basic construction is, it consists of coils with a number of wire turns that are wounded on ordinary cardboard. So, ceramics or plastic former may be utilized as an insulating material.
Working Principle These inductors work on the basis that air has a fairly minimum electrical conductivity. So the air-core inductance is also low, producing a weak magnetic field. Because of the small magnetic field generation of air cores', it achieves a faster current rise while avoiding signal loss. This loss mainly happens whenever an inductor generates high magnetic field strengths within an electric circuit.
| Product families | 1. RC ✉ | 2. SMAR ✉ | 3. BC ✉ | 4. SMD SQUARE ✉ |
Air Core Coil,high Current Power Inductor
Our RC high-current, high-power air core inductors can handle up to 57 Amps
with no core loss. Their size results in excellent Q factors - up to 230 at 400 MHz.
Inductance values range from 22 nH to 257 nH, all with ±20% tolerance.
High-reliability versions are available for space, military, and other critical applications.
FEATURE:
·Compact size using flat wire
·High current, high frequency power inductors
·Excellent Q factors - up to 230 at 400 MHz
·Current handling as high as 57 Amps
·RoHScompatible.
Series in this family
| Product Series | L(µH) | DCR Max(mΩ) | SRF(MHz) | |
| RC1010 | 23.5-146 | 1.2-3.3 | 382-923 | ✉ |
| RC1212 | 22-117 | 0.55-1.43 | 399-918 | ✉ |
| RE2014 | 33-257 | 0.74-2.15 | 230-620 | ✉ |
Air-core Coil
SWAR Series air core inductors have extremely high Q factors and very tight
inductance tolerances, making them suitable for narrowband RF amplifier matching
and tuning applications. As their name implies, air-core inductors do not use a
magnetic core, resulting in the high Q and the lowest possible losses for high-frequency
applications. High-reliability versions are available for space, military, and other critical.
FEATURE:
·High Q
·High current
·Flat top and bottom for reliable pick and place and mechanical stability
·Solder coated leads ensure excellent solderability
Series in this family
| Product Series | Length(mm) | Height(mm) | Width(mm) | DCR Max(mΩ) | |
| SMAR toroidal coils | 2.21-10.55 | 1.37-5.90 | 1.42-6.35 | 1.1-90.0 | ✉ |
| SMAR0806 0807 0908 | 1.35-2.97 | 1.83-2.14 |
1.40-1.83 |
3.4-10.0 | ✉ |
| SMAR1111 | 2.67-3.30 | 2.67 | 2.79 | 8.1-11.3 | ✉ |
| SMAR1515 2222 2929 | 4.06-14.00 | 3.56-7.49 | 3.73-7.24 | 6.35-16.5 | ✉ |
| SMAR1210 | 3.3±0.3 | 2.7±0.2 | 2.6±0.2 | 1.1-3.9 | ✉ |
| SMAR1812 | 4.9±0.3 | 3.5±0.2 | 3.8±0.2 | 4.2-33.0 | ✉ |
| SMAR4024 | 10.5 | 6.0 | 7.0 | 15-90 | ✉ |
Broadband Conical Inductors with "Flying Leads"

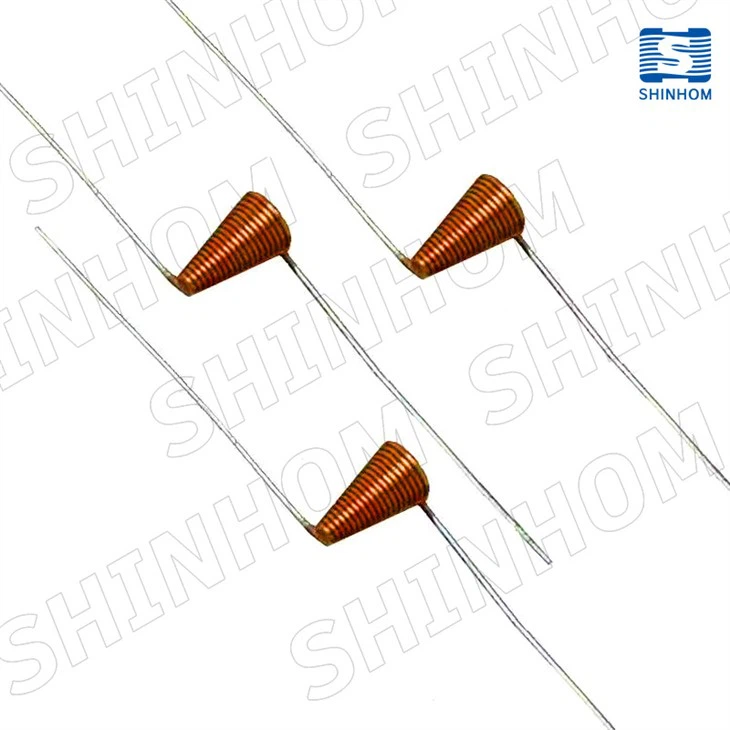

Our inductors were designed specifically for broadband and high frequency applications, operating as a series of narrow-band inductors across a frequency range of 10 MHz to 40 GHz. They are ideal for use in ultra-wideband bias Tees. Their "flying leads" allow precise positioning and adjustment of the mounting angle.
FEATURES:
Flat bandwidth with high impedance to 40 GHz. Ideal for use in bias Tees
Operates as a series of narrow band inductors
Limits effects caused by stray capacitance
"Flying leads" allow precise positioning and adjustment of the mounting angle
Ambient temperature –40°C to +85°C with Irms current, +85°C to 125°C with derated current
Storage temperature Component: –40°C to +125°C
Tape and reel packaging: –40°C to +80°C
4.SMD SQUARE AIR COIL Family ✉
Shinhom is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Air Coil Inductor products.
