Multilayer Chip Inductor,Laminated inductors are manufactured by multilayer printing technology and laminated production technology, and the volume is smaller than that of wound chip inductors. Compared with the winding type, laminated inductors have advantages in reliability, weldability and heat resistance. They are suitable for high density welding and reflow welding, and also have great advantages in automatic production characteristic
- The overall size is small.
- Closed circuit, no interactive interference, suitable for high density installation.
- Non-directional, standardized automatic patch mounting profile.
- Excellent weldability and welding resistance, suitable for flow welding and reflow welding.
Application:
The product is widely used in laptop computers, digital television, digital video recorders, tabulators, hard disk drives, personal computers and other general consumer and computer main products on the input and output lines noise elimination.
| Product families | Inductance(µH) | IDC(mA) | Length (mm) | Width (mm) | Height (mm) | |
| AIML-C | 0.6-470 | 50-600 | 0.6-2.0 | 0.3-1.2 | 0.3-0.9 | ✉ |
| AIML | 0.047-120 | 1-1200 | 1.0-4.5 | 0.5-3.2 | 0.5-1.6 | ✉ |

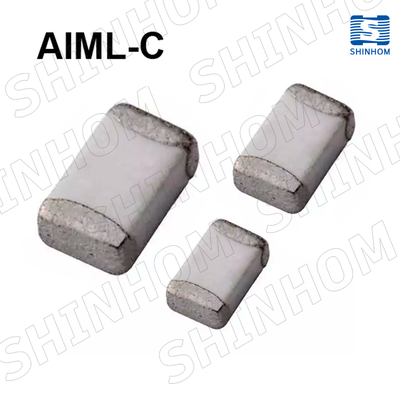

1.AIML-C Family ✉
Surface-mount Multi-layer Ceramic Chip Inductors
Suitable for high-frequency applications, AIML-C series has a
tight tolerance in physical dimensions, a tight inductance tolerance,
excellent Q and a guaranteed SRF range. The AIML-C series
features a ceramic integrated structure, resulting in high product
quality and outstanding reliability. All parts are lead-free and comply
with RoHS standards. The AIML-C series has an operating temperature
of -40ºC to +85ºC. Also, the surface mounting applicability supports
reflow soldering conditions without sacrificing any frequency characteristics.
FEATURES:
- Standard EIA sizes
- Operating temperature -40ºC to +85ºC
- Lead-Free RoHS Compliant
- Tight Tolerance in Physical Dimensions
- Surface Mounting Applicability
- Tight Inductance Tolerance, Excellent Q & Guaranteed SRF Range
- High Product Quality & Outstanding
- Reliability
APPLICATIONS:
- Mobile communications
- WLAN
- EMI Counter measure in High Frequency Circuits
- Computer Communication
Series in this family
| Product Series | Inductance(µH) | IDC(mA) | Length (mm) | Width (mm) | Height (mm) | |
| AIML0201C | 0.6-120 | 50-600 | 0.6 | 0.3 | 0.3 | ✉ |
| AIML0201CA | 0.6-22 | 190-900 | 0.6 | 0.3 | 0.3 | ✉ |
| AIML0201CB | 0.1-22 | 190-900 | 0.6 | 0.3 | 0.3 | ✉ |
| AIML0201CC | 1.0-100 | 60-470 | 0.6 | 0.3 | 0.3 | ✉ |
| AIML0402C | 1.0-220 | 100-400 | 1.0 | 0.5 | 0.5 | ✉ |
| AIML0402CA | 1.0-15 | 280-710 | 1.0 | 0.5 | 0.5 | ✉ |
| AIML0402CC | 1.0-68 | 100-400 | 1.0 | 0.5 | 0.5 | ✉ |
| AIML0402CD | 1.0-82 | 150-400 | 1.0 | 0.5 | 0.5 | ✉ |
| AIML0402CE | 1.0-15 | 300-400 | 1.0 | 0.5 | 0.5 | ✉ |
| AIML0603C | 1.0-470 | 150-500 | 1.6 | 0.8 | 0.8 | ✉ |
| AIML0603CE | 1.0-82 | 300-600 | 1.6 | 0.8 | 0.8 | ✉ |
| AIML0805C | 1.5-470 | 300-600 | 2.0 | 1.2 | 0.9 | ✉ |
2.AIML Family ✉
Surface mount multi layer chip inductor,
Ceramic and ferrite materials are optional
FEATURES:
- Advanced thin film technology
- Small size, no lead is suitable for high-density surface mount
- Low resistance value of the highB
- Excellent solderability and heat shock
- Suitable for wave soldering and reflow soldering
- Enamel-coated glass and high precision, small resistance drift
- Environmentally friendly products
APPLCATIONS:
- Medical Equipment
- Testing/Measurement Equipment
- Printer Equipment
- Automatic Equipment Controller
- Converters
- Communication Device, Cell phone ,GPS ,PDA
- Personal Computers
- Portable Equipment
- CD-ROM, Hard Disk, Modem, Printers
- DC - DC converters
- DSC, DVC, PDA, DVD and HDD
Technical Information:
- Solderability:90% of the terminal Electrode shall be covered Preheat:@ 260℃±5℃ for 160 seconds Solder:H63AA Eutectic Solder Flux:Rosin,Dip for 5 seconds ±1 second
- Thermal Shock: lnductance shall be Within±5% of imitial value and Q shall be within ±30% of initial value When temperaturs is -40℃ and +85℃ for 30 Min.for each 100 cycles
- Operating Temperature:-25℃ to +85℃
- Storage Temperature: -40℃ to +85℃
Series in this family
| Product Series | Inductance(µH) | IDC(mA) | Length (mm) | Width (mm) | Height (mm) | |
| AIML0402 | 0.047-1.2 | 15-25 | 1.0 | 0.5 | 0.5 | ✉ |
| AIML0603 | 0.047-22 | 1-50 | 1.6 | 0.8 | 0.8 | ✉ |
| AIML0603H | 0.047-12 | 60-150 | 1.6 | 0.8 | 0.8 | ✉ |
| AIML0805 | 0.047-47 | 5-300 | 2.0 | 1.2 | 0.9-1.2 | ✉ |
| AIML0805H | 0.047-22 | 50-350 | 2.0 | 1.2 | 0.9 | ✉ |
| AIML0805UH | 0.047-15 | 100-1100 | 2.0 | 1.2 | 0.9 | ✉ |
| AIML1206 | 0.047-100 | 5-300 | 3.2 | 1.6 | 0.9-1.1 | ✉ |
| AIML1206H | 0.047-27 | 50-450 | 3.2 | 1.6 | 0.9 | ✉ |
| AIML1206UH | 1.0-18 | 100-1200 | 3.2 | 1.6 | 0.9 | ✉ |
| AIML1210 | 1.0-120 | 150-600 | 3.2 | 2.5 | 1.3 | ✉ |
| AIML1806 | 1.0-10 | 250-500 | 4.5 | 1.6 | 1.6 | ✉ |
| AIML1812 | 1.0-120 | 150-650 | 4.5 | 3.2 | 1.5 | ✉ |
Shinhom is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Multilayer Chip Inductor products.
