Product Overview
The BC Series Broadband Conical Inductors are high-performance RF inductors designed for demanding high‑frequency applications up to 40 GHz. These conical-shaped RF inductors function as a series of narrow‑band inductors across 10 MHz to 40 GHz,
making them ideal for ultra‑wideband bias Tees and RF/microwave circuits. The unique conical geometry minimizes stray capacitance, while the "flying leads" construction enables precise positioning and flexible mounting angle adjustment for optimal RF performance.
FEATURES:
- Broadband RF inductor performance from 10 MHz to 40 GHz;
- Ideal for RF bias Tee applications and microwave modules;
- Conical design minimizes parasitic capacitance in high-frequency circuits;
- Flying leads enable precise positioning and adjustable mounting angle;

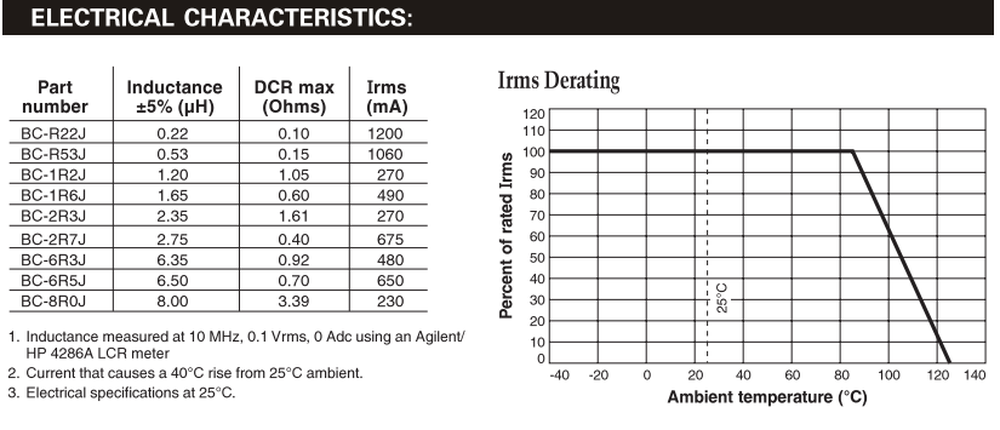

- Low DCR and high Irms current rating for power handling;
- Wide inductance range: 0.22 μH to 8.0 μH;
- Operating temperature: -40°C to +125°C;
- MSL Level 1 (unlimited floor life);
- RoHS, Halogen Free and REACH compliant;
- Available in tray packaging (25 pcs per tray)
APPLICATIONS：
- RF and microwave bias Tees;
- High-frequency signal paths up to 40 GHz;
- DC bias injection/extraction for RF circuits;
- 5G infrastructure and radar systems;
- Satellite communication RF modules;
- Test and measurement equipment;
- Broadband communication systems;
- RF filter networks.
Packaging & Environmental Compliance
Packaging: 25 pieces per tray;
Storage Temperature: –40°C to +125°C (component), –40°C to +80°C (tape & reel);
Moisture Sensitivity Level (MSL): 1 (unlimited floor life at <30°C / 85% RH);
RoHS Compliant: Yes;
Halogen Free and REACH Compliant.
Why Choose BC Series for Your RF Designs?
The BC Series conical RF inductors deliver exceptional broadband performance in a compact, flying leads package. Their unique design minimizes stray capacitance-a critical advantage in high-frequency circuits up to 40 GHz. Whether you're designing bias Tees, RF front-end modules, or microwave systems, these inductors provide the precision, low DCR, and high current handling your projects demand.
SHINHOM is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our BC Series Broadband Conical Inductors products.
Contact Us
For technical specifications, samples, or bulk orders, please contact our sales team:
Email: sales@shinhom.com
We look forward to assisting you with your RF inductor requirements.
