High efficiency magnetic amplifier cost isn't just about component price-it's measured in wasted energy, thermal compromises, and avoidable redesigns across your power supply lifecycle.
Industrial power designers face relentless pressure: deliver more stable power in smaller footprints while surviving brutal thermal environments. The magnetic amplifier (mag-amp) core silently dictates success or failure in these missions. When improperly selected, it becomes a hidden tax on your system's reliability, efficiency, and bottom line. Unlike semiconductor-based regulation that injects switching noise, mag-amp cores offer a high efficiency magnetic amplifier cost advantage through noise suppression and component reduction-but only if engineered correctly.
The Hidden Bill of Poor Core Selection: Beyond Unit Price
Every industrial SMPS designer understands that core losses translate directly into thermal headaches and derated power outputs. What many miss is how material limitations compound these costs over time. Ferrite cores, while inexpensive upfront, impose severe efficiency penalties above 100kHz due to rising core losses and lower saturation flux density (typically just 0.5T). This forces overdesign-larger heatsinks, derated power density, or even active cooling-adding dollars to your BOM.
Non-crystalline amorphous alloys flip this equation. With saturation flux levels reaching 2.86T in Fe-based variants and losses proportional to ∫v²dt under pulsed conditions, they unlock thinner, lighter industrial SMPS designs without sacrificing stability8. Consider the math: A Co-based amorphous core operating at 200kHz with 150ns saturation times enables compact mag-amp regulators that maintain >96% squareness ratio-directly translating to tighter voltage regulation from no-load to full-load conditions, eliminating the need for compensatory overdesign14.
Low Reset Current: The Silent Efficiency Multiplier
Low reset current mag-amp designs aren't merely convenient-they're transformative for efficiency-critical applications. Reset current directly governs how much energy is wasted during the demagnetization phase between cycles. Traditional solutions like permalloy demand higher reset currents due to higher coercivity (Hc), creating a parasitic drain on your control circuitry.

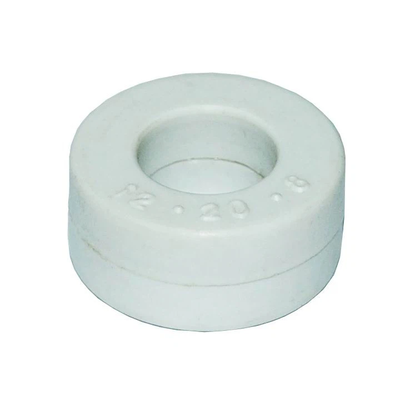

Amorphous cores like Shinhom's MA series slash this waste. With coercive force fields consistently below 18A/m (tested at 100kHz, 80A/m, 25℃), they achieve full reset with minimal current-as much as 50% lower than ferrite alternatives. This translates into measurable system-wide gains:
Reduced heat generation in feedback circuits
Lower stress on driver ICs
Simplified gate drive requirements
2-5% efficiency gains in multi-output server/telecom SMPS
These advantages compound in parallel PSU configurations where dynamic load changes demand rapid core response. Here, the near-constant squareness of amorphous alloys across frequency ranges prevents voltage droop during transient events-something ferrites struggle with as frequency scales.
Why High Squareness Equals High Reliability
High squareness mag-amp core performance (>96% Br/Bm ratio) isn't an academic metric-it's your frontline defense against field failures. Squareness defines the "sharpness" of the core's B-H loop transition into saturation. Low squareness cores exhibit "sluggish" saturation behavior, causing delayed regulation response and voltage drift under abrupt load changes.
In industrial environments-where conveyor motors, servo drives, and PLCs create violent load transients-this drift triggers catastrophic chain reactions: Overvoltage shutdowns, microcontroller resets, or even cascaded component failures. Amorphous cores prevent this by delivering near-vertical saturation curves. When paired with precision annealing (achieving remanence ratios >0.90) and SiO₂ insulation coatings (withstanding >120V DC between layers), they maintain regulation precision within ±1% even when ambient temperatures hit 100°C.
Selecting Your Core: Matching Parameters to Pain Points
Not all industrial SMPS saturable core applications demand identical solutions. The choice between Fe-based (like AMSN series) and Co-based (AMSA type) amorphous cores hinges on operational priorities:
Energy-Intensive Environments (EV Chargers, Welding Equipment): Fe-based cores (AMSN analogs) offer higher saturation flux (2.86T tested) and superior thermal tolerance, ideal for 300-500kHz hard-switching topologies.
Noise-Sensitive Electronics (Medical Imaging, Test Gear): Co-based variants (AMSA equivalents) provide lower core losses and near-immunity to mechanical noise, critical in MRI rooms or audio-sensitive applications.
| Parameter | Amorphous (MA Series) | Ferrite | Permalloy |
|---|---|---|---|
| Saturation Flux | 2.86T (Fe-based) | 0.5T | 0.8T |
| Squareness (Br/Bm) | >96% | 70-85% | 80-90% |
| Coercivity (Hc) | <18 A/m | >25 A/m | >20 A/m |
| Max Operating Freq | 500kHz+ | 200kHz | 100kHz |
| Cost per kW Output | $1.2-$1.8 | $0.9-$1.5 | $5.0+ |
Why Shinhom's Manufacturing Edge Matters
As an established mag-amp core manufacturer, Shinhom solves pain points beyond material science-addressing supply chain fragility and consistency nightmares. Through proprietary annealing processes and mechanical stress control during winding (critical for preventing amorphous ribbon fractures), we achieve what generic suppliers cannot:
Tolerance Control: Tight ±15% flux variance guarantees versus industry-standard ±25%
Stress-Immune Designs: Ribbon insulation and encapsulation protocols preventing degradation during coil winding-a major failure mode identified in third-party studies
Application-Specific Customization: Modified permeability or size configurations for novel wide-bandgap (SiC/GaN) PSU architectures
These capabilities translate into direct savings: Fewer post-installation failures, zero burn-in rejects, and elimination of 100% dynamic testing-a costly requirement for lesser cores.
