The Alternator Noise Nightmare
Every automotive engineer knows the scenario: your meticulously designed audio/navigation system performs flawlessly in the lab-only to succumb to whining alternator noise in real-world testing. This high-frequency interference (up to 1MHz) stems from ignition systems and rotating components, slaughtering signal-to-noise ratios. Traditional ferrite or silicon steel chokes fail here-their inductance plummets under DC bias, while their limited frequency response acts like a sieve for noise harmonics. The result? Audible distortion drivers won't tolerate. To silence alternator noise, you need chokes with flat inductance curves across 10Hz–1MHz and stable DC bias performance-exactly where amorphous alloys dominate with near-constant permeability from idle to high RPM.
Why Low-Profile SMD Amorphous Inductors Are Eating Ferrites' Lunch
Size vs. performance-this is the eternal engineering tug-of-war. As EVs cram more electronics into tighter spaces, low profile SMD amorphous inductors solve three critical puzzles:
Space Compression: At ≤4.2mm height (e.g., Shinhom's C-series), they enable 30% flatter DC/DC converters versus ferrite equivalents.
Thermal Runway: Ferrites derate rapidly above 100°C; amorphous alloys maintain ≤15% inductance drop at 150°C and 100kHz switching [citation:9][citation:11].
Loss Warfare: At 200kHz, amorphous cores slash hysteresis losses by 50% compared to ferrites under 0.3T flux swings [citation:11].
The verdict? For compact power stages in ADAS or infotainment, amorphous SMDs are the only path to shrinking footprints without sacrificing efficiency.
The 150°C Endurance Test: Why Material Physics Matter
When junction temperatures near 150°C in under-hood modules, conventional chokes falter. Ferrites crack from thermal shock; powdered irons leak flux, destabilizing nearby sensors. Amorphous cores thrive here:
Curie Temperatures >350°C-far beyond silicon steel's ~740°C limit [citation:9].
Near-Zero Aging: Unlike ferrites, amorphous alloys resist permeability drift after 1,000+ thermal cycles.
DC Bias Immunity: Even at 1,000A-turns magnetizing force, high-permeability grades (e.g., 850µ class) retain >80% initial inductance 4[citation:12].
For high temperature choke core 150°C applications-like EV OBCs or 48V battery systems-this translates to lifetime reliability without derating.
The AEC-Q200 Supplier Gap: Beyond Paper Compliance
Choosing an AEC-Q200 amorphous core supplier isn't about checking certification boxes. It's about how they validate resilience:
Test Rigor: True AEC-Q200 compliance demands 1,000-hour humidity/temperature cycling (+130°C to -40°C), not just sample-based qualification 8.
Traceability: Batch-level documentation for core loss (Pc) and permeability (µ)-critical when scaling to 100k-unit orders.
Failure Analytics: Suppliers worth partnering with provide FA reports detailing crack origins in thermal shock tests.
SHINHOM Solutions: Where Physics Meets Feasibility
At SHINHOM, we engineer amorphous chokes that turn automotive noise/thermal challenges into non-issues. Our cores deliver:

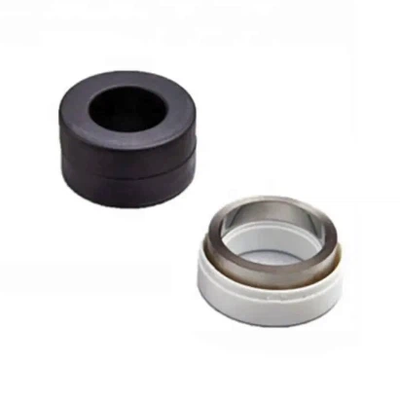

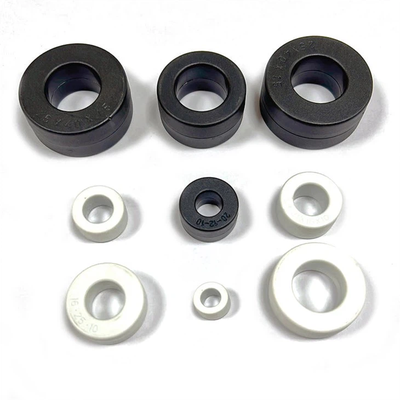

Alternator Noise Filter Choke Design: Toroidal NC-series cores with >95% permeability retention from 0-500A-turns, eradicating whine without board redesigns 14.
Low Profile SMD Amorphous Inductor: C-series heights from 4.2mm–12mm, achieving 1.56T saturation at 40% less volume than ferrites 6[citation:9].
150°C Continuous Operation: GO-100 series validated at ΔT=80°C above ambient in 5kW PFC chokes [citation:9][citation:12].
AEC-Q200 Transparency: Full material traceability + third-party test reports for every production lot.
Stuck with a noise/thermal bottleneck? → Send your specs to sales@shinhom.com.cn for a choke solution that survives the real world.
