With the rapid expansion of high-frequency systems such as 5G infrastructure, satellite communication, radar modules, and advanced wireless devices, the importance of passive components in RF design has grown significantly. Among these, SMD air core RF inductors are increasingly recognized as essential building blocks for achieving stable, low-loss performance in demanding RF environments.
Unlike standard inductors that rely on magnetic cores, air-core designs eliminate core-related losses and saturation effects, offering superior signal integrity that high-frequency engineers seek in next-generation electronics.
Why Air Core Inductors Matter in Modern RF Systems
In RF circuits, minimizing energy loss and distortion is critical - especially as systems shift toward millimeter-wave frequencies and broader bandwidths. Air core RF inductors stand out because they are not constrained by magnetic core characteristics that can introduce hysteresis, saturation, or thermal drift. This results in:
High quality factor (Q), which helps maintain signal purity
Consistent performance across frequency ranges
Reduced distortion and minimal core losses
Better thermal stability in demanding environments
This combination of features makes air core inductors particularly valuable for precision RF applications such as impedance matching, narrowband filtering, tuning networks, and front-end RF amplifiers.

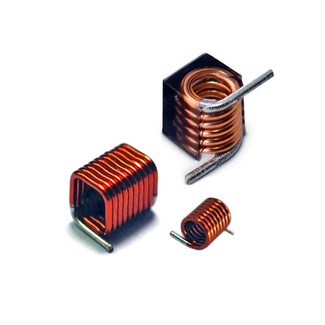

SMD Air Core RF Inductors: Small Package, Big Impact
The trend toward miniaturization in wireless and communication products has driven greater demand for surface-mount (SMD) passive components. SMD air core RF inductors are designed specifically for high-frequency applications where both compact size and electrical performance matter.
Because they lack a magnetic core, these inductors naturally avoid common losses associated with ferrite or powdered iron cores, providing engineers with a more linear response and higher efficiency at UHF and microwave frequency ranges.
In addition to electrical advantages, the surface-mount form factor also supports automated pick-and-place assembly, improving manufacturability for volume production in consumer, industrial and telecommunications equipment.
Real-World Applications: From 5G to Aerospace
SMD air core RF inductors are increasingly deployed in a wide range of cutting-edge RF designs, including:
5G and future 6G infrastructure, where low loss and high Q help optimize beamforming and phased-array antennas
Satellite communications and aerospace systems, where robust performance across temperature extremes is critical
Radar modules and IoT gateways, requiring precision tuning and impedance control
High-frequency filters and RF front ends, where signal clarity is paramount
Their adaptability makes them valuable in both commercial and high-reliability systems - from mobile network base stations to industrial sensing platforms.
Design Considerations for High-Frequency Engineers
Designing effective RF circuits involves more than just selecting an inductor with the right inductance value. Key factors that influence performance include:
Self-resonant frequency (SRF) and how it aligns with the intended operating band
Inductance tolerance and its impact on impedance matching
Quality factor (Q), which affects loss and bandwidth
Material properties and winding geometry, which influence linearity and stability
Understanding these parameters helps engineers strike the right balance between electrical performance and physical constraints, especially as frequencies push into the UHF and mmWave ranges.
SHINHOM's SMD Air Core RF Inductors: Engineered for Precision
At SHINHOM, our range of SMD air core RF inductors is designed to meet the stringent requirements of modern RF systems. With extremely high Q factors, tight inductance tolerances, and low loss characteristics, these components are suited for critical RF applications such as narrowband matching and tuning networks for high-frequency amplifiers.
Their air-core construction ensures minimal signal distortion and stable performance across frequencies, while the SMD form supports reliable manufacturing processes and compact assemblies.
Whether used in wireless communications, IoT devices, or advanced RF modules, SHINHOM's inductors help engineers achieve the performance and consistency needed in cutting-edge designs.
Explore more about these components and their specifications here:SMD Air Core RF Inductors
Looking Forward
As communication technologies continue to evolve and the push for higher frequencies intensifies, passive components such as SMD air core RF inductors will remain central to successful RF design. By combining high performance with manufacturability and design flexibility, these parts will help shape the next generation of wireless and high-frequency systems.
