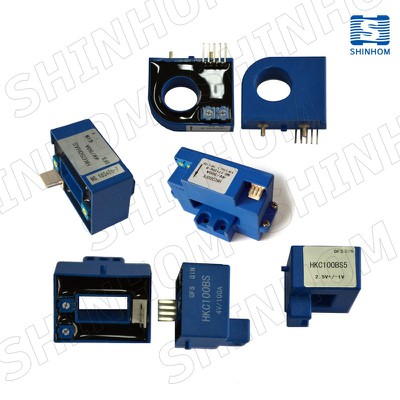

Closed Loop Hall Effect Current Sensor,
In order to meet the requirements of modern applications, current sensors should feature ever larger bandwidth and dynamic range, as well as reduced power consumption and dimension. Among the available current sensing technologies, Hall-based current sensors have gained an increased popularity owing to their advantages in terms of size, economic feasibility, low power consumption, high dynamic range, and integrability with standard CMOS technologies.
Advantages of Hall current sensor
1. Wide measuring range
2. Fast response speed
3, high measurement accuracy
4. Good linearity
5. Good dynamic performance
6. Wide working frequency band
7, high reliability
8. Strong overload capacity and large measuring range
9, small size, light weight, easy to install.
| Product families | 1. HBC ✉ | 2. HKC ✉ | 3. HCB ✉ |
| Product Series | IDC(A) | Supply Voltage(V) | Resistance(Ω) | |
| HBC-B | 50-300 | 12-18 | 10-50 | ✉ |
| HBC-1000S | 1000 | 15 | 5-22 | ✉ |
| HBC-100_300ADS-A0 | 100-300 | 24 | - | ✉ |
| HBC-30AS-A1 | 30 | 12 | - | ✉ |
| HBC-50LA | 50 | 12-15 | 50-160 | ✉ |
| HBC-AP | 50-200 | 12-15 | 30-76 | ✉ |
| HBC-CAS-190415 | 6-50 | 5 | - | ✉ |
| HBC-CASR | 6-50 | 5 | - | ✉ |
| HBC-DPS5-2V | 10-25 | 2 | - | ✉ |
| HBC-DS5 | 6-50 | 5 | - | ✉ |
| HBC-DSH5 | 6-75 | 5 | - | ✉ |
| HBC-DSR5 | 6-40 | 5 | - | ✉ |
| HBC-F | 200-500 | 15-24 | 10-80 | ✉ |
| HBC-LA-T | 25-100 | 15 | 35-100 | ✉ |
| HBC-LA | 50 | 12-15 | 50-155 | ✉ |
| HBC-LAH | 50-100 | 12-15 | 0-163 | ✉ |
| HBC-LAP | 100-200 | 12-15 | 8-72 | ✉ |
| HBC-LF | 500-1000 | 15-24 | 0-65 | ✉ |
| HBC-LP | 125-200 | 12-18 | 22-100 | ✉ |
| HBC-LSR5 | 6-50 | 5 | - | ✉ |
| HBC-LTA | 50-300 | 12-18 | 21-32 | ✉ |
| HBC-LTB | 300-500 | 15-24 | 31-45 | ✉ |
| HBC-LTB1 | 100-1000 | 12-15 | - | ✉ |
| HBC-LX | 5-150 | 15 | - | ✉ |
| HBC-S | 1000 | 15 | 20-30 | ✉ |
| HBC-SY | 5-100 | 15 | - | ✉ |
| HBC-SY12MJ | 3-25 | 12 | - | ✉ |
| HBC-US | 100-500 | 12-18 | 16-30 | ✉ |
| HBC-X | 10-50 | 15 | - | ✉ |
| HBC-XS5 | 10-50 | 5 | 16.7-100 | ✉ |
| HBC03SY12 | 3 | 2.5 | - | ✉ |
| HBC100LAHS5 | 100 | 5 | - | ✉ |
| HBC125LAH-180228 | 125 | 12-15 | 14-48 | ✉ |
| HBC125LAH | 125 | 12 | 14-70 | ✉ |
| HBC125LP1 | 125 | 15 | - | ✉ |
| HBC2000LSH | 20-2000 | 15-24 | 2-25 | ✉ |
| HBC200LAP-100mA | 200 | 15 | 76 | ✉ |
| HBC200LTA-100mA | 200 | 15 | - | ✉ |
| HBC200LTA | 200 | 12-15 | 33-95 | ✉ |
| HBC20XS5 | 20 | 5 | 50 | ✉ |
| HBC25A05 | 25 | 15 | 110 | ✉ |
| HBC25C04 | 25 | 55 | 100-360 | ✉ |
| HBC300LTA-150mA | 300 | 15 | 0-26.67 | ✉ |
| HBC300LTA | 50-300 | 12-18 | 36-120 | ✉ |
| HBC300LTA1 | 50-300 | 12-18 | 36-120 | ✉ |
| HBC500LF | 500 | 12-18 | 10-100 | ✉ |
| HBC500LTB1 | 300-500 | 15-24 | 100-130 | ✉ |
| HBC50DS5 | 6-50 | 5 | 50-100 | ✉ |
| HBC50LA | 50 | 12-15 | 50-160 | ✉ |
| HBC50LSR5 | 6-50 | 5 | - | ✉ |
| HBC-HXS5 | 10-50 | 2.5 | - | ✉ |
| HTK50LSR5 | 10-50 | 2.5 | - | ✉ |
Dismountable Hall Effect Current Sensor
| Product Series | IDC(A) | Supply Voltage(V) | |
| 05-HKC-EKB1 | 200-4000 | 15 | ✉ |
| 20-HKC-B | 50-300 | 12-18 | ✉ |
| HKC-2012Y1 | 2000-10000 | 12-15 | ✉ |
| HKC-B1 | 50-600 | 12-15 | ✉ |
| HKC-BS | 50-600 | 15 | ✉ |
| HKC-BS5-0.626 | 50-600 | 5 | ✉ |
| HKC-BS5 | 50-900 | 2.5 | ✉ |
| HKC-BT | 50-600 | 15 | ✉ |
| HKC-E | 50-500 | 12-15 | ✉ |
| HKC-EKA | 100-500 | 15 | ✉ |
| HKC-EKAD1 | 30-600 | 15 | ✉ |
| HKC-EKAS12 | 100-500 | 12 | ✉ |
| HKC-EKASDA-2012 | 20 | 24 | ✉ |
| HKC-EKASY-2012 | 50-500 | 24 | ✉ |
| HKC-EKB | 200-2000 | 15 | ✉ |
| HKC-EKBS12 | 200-2000 | 12 | ✉ |
| HKC-FK | 200-1000 | 15 | ✉ |
| HKC-H | 600-3000 | 15 | ✉ |
| HKC-HA | 800-5000 | 12-15 | ✉ |
| HKC-HAHS52 | 50-1500 | 5 | ✉ |
| HKC-HAS | 50-600 | 15 | ✉ |
| HKC-HASP | 50-600 | 15 | ✉ |
| HKC-HAT | 100-2000 | 15 | ✉ |
| HKC-HAX-2019 | 500-2500 | 15 | ✉ |
| HKC-HB-2019 | 1000-12000 | 15 | ✉ |
| HKC-HOP | 800-3000 | 15 | ✉ |
| HKC-K | 400-2000 | 15 | ✉ |
| HKC-KB-2019 | 800-3000 | 15 | ✉ |
| HKC-KB | 500-5000 | 12-15 | ✉ |
| HKC-KC | 1000-10000 | 15 | ✉ |
| HKC-LBP | 200 | 15 | ✉ |
| HKC-LBS5 | 50-450 | 24 | ✉ |
| HKC-LTH | 10-450 | 15 | ✉ |
| HKC-N | 50-1000 | 15 | ✉ |
| HKC-PTPS | 50-150 | 5 | ✉ |
| HKC1000SML | 1000 | 15 | ✉ |
| HKC18P-D1 | 40-60 | 15 | ✉ |
| HKC18P-D15 | 40-60 | 15 | ✉ |
| HKC18P03-50D15 | 3-50 | 15 | ✉ |
| HKC2000F | 200-2000 | 12-15 | ✉ |
| HKC2000H | 600-3000 | 12-15 | ✉ |
| HKC2000K | 400-2000 | 12-15 | ✉ |
| HKC200LBP-4V | 200 | 15 | ✉ |
| HKC2105-20 | 50-500 | 12-15 | ✉ |
| HKC4000KB-170316 | 500-4000 | 12-15 | ✉ |
| HKC5000HOP-180108 | 2000-5000 | 15 | ✉ |
FEATURE:
Test frequency: 0~100KHzAccuracy:0.2%~1%
Response time: Less than 1uSLinearity: 0.1%
No insertion loss measured
Measure AC,DC and pulse currentThe primary current is highly isolated from the secondary outputsignal
Closed-loop Hall magnetic compensation principle manufacturing
Shinhom is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Closed Loop Hall Effect Current Sensor products.
