Overview
A servo motor refers to a drive control motor whose output (speed, torque) can quickly respond to the input signal.
Application
Servo motors are often combined with speed sensors and position elements to form speed closed-loop systems and position closed-loop systems. DC servo motors are widely used in aviation servo systems, portable electronic instruments, radar distance tracking systems, linear delay devices, tape drives, magnetic recorders, and robots. AC servo motors are widely used in various automatic control systems, servo systems, and drive devices.
1.Permanent Magnet DC Servo Motor
It has the advantages of small volume, light weight, good control performance, and high torque index, suitable for forward and reverse starting and servo control.
Technical Data
|
Product Model |
Rated Voltage (V) |
Rated Speed (r/min) |
Rated Torque (mNm) |
Rated Power (W) |
|
J20SY01 |
27 |
4000 |
4 |
1.6 |
|
J25SY01 |
29 |
9000 |
3.4 |
3.23 |
|
J28SY0 |
27 |
9000 |
4.88 |
4.6 |
|
J36SY01 |
24 |
5500 |
21 |
12.4 |
|
J36SY02 |
28 |
500 |
21 |
12.4 |
|
J40SY01 |
27 |
6000 |
40 |
24.6 |
|
J40SY02 |
27 |
5150 |
115 |
62 |
|
J45SY01 |
28 |
1650 |
50 |
8.63 |
|
J45SY02 |
27 |
3000 |
68 |
20 |
|
J45SY03 |
27 |
6000 |
39 |
24 |
|
J45SY04 |
27 |
6000 |
39 |
24 |
|
J55SY01 |
27 |
6000 |
80 |
50 |
|
J60SY01 |
12 |
2500 |
78 |
20.5 |
|
J70SY01 |
12 |
2500 |
340 |
89.8 |
|
J90SY01 |
48 |
3000 |
480 |
150 |
|
J90SY02 |
40 |
850 |
390 |
34.9 |
|
J110SY01 |
200 |
4000 |
1080 |
450 |

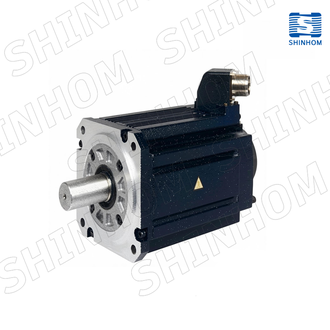

2.Sinusoidal Wave Permanent Magnet AC Servo Motor
Technical Data
|
Motor Model |
Unit |
J70ST - X01 |
J92ST - X01 |
J115ST - X01 |
J142ST - X01 |
J190ST - X01 |
|
Power |
(kw) |
1.5 |
1.6 |
5.5 |
12.5 |
13.9 |
|
Maximum Working Speed |
(r/min) |
7500 |
3600 |
3200 |
4300 |
2000 |
|
Continuous Stall Torque (25℃) |
(Nm) |
2.4 |
4.7 |
19.7 |
41.5 |
83.4 |
|
Continuous Stall Line Current |
(A) |
6 |
5.8 |
19.1 |
60 |
48 |
|
Peak Torque |
(Nm) |
6.4 |
14 |
50 |
104 |
230 |
|
Peak Line Current |
(A) |
18 |
17.4 |
53.3 |
114.8 |
147 |
|
Torque Sensitivity |
(Nm/A) |
0.37 |
0.85 |
0.98 |
0.79 |
1.65 |
|
Back EMF Constant |
(V/kr/min) |
22.5 |
51.2 |
58.8 |
47.9 |
99.6 |
|
Maximum Line Voltage |
(V) |
250 |
250 |
250 |
250 |
250 |
|
Rotational Inertia |
(kgm²) |
7.7E-05 |
1.1E-03 |
6.6E-03 |
1.4E-02 |
6.0E-02 |
|
Positioning Torque |
(Nm) |
0.07 |
0.01 |
0.287 |
0.52 |
0.91 |
|
Outer Dimensions |
(□mm×mm) |
70×244 |
92×336 |
115×473 |
142×460 |
190×539 |
3.Square Wave Permanent Magnet Brushless Servo Motor
Technical Data
|
Motor Model |
Rated Power (kW) |
Stall Torque (N·m) |
Maximum Speed (r/min) |
Tachometer (V/Kr/min) |
Encoder (p/r) |
|
J80ZWS-C01 |
0.8 |
5 |
1800 |
10 |
- |
|
J98ZWS-01 |
- |
0.15 |
6000 |
- |
2400 |
|
J100ZWS-01 |
- |
0.15 |
6000 |
- |
2400 |
|
J100ZWS-01A |
0.7 |
2 |
4000 |
- |
- |
|
J100ZWS-C01 |
0.7 |
2 |
4000 |
20 |
- |
|
J115ZWS-01A |
1.2 |
2 |
6000 |
- |
- |
|
J115ZWS-C01 |
1.2 |
10.4 |
1100 |
20 |
- |
|
J115ZWS-CM01 |
1.1/1.4 |
6.5/9 |
2000 |
20 |
2500 |
|
J115ZWS-CM02 |
0.4/0.6 |
2.2/3.6 |
2000 |
20 |
2500 |
|
J140ZWS-C01 |
2.5 |
- |
1100 |
20 |
- |
|
J140ZWS-CM01 |
2.4 |
14 |
2000 |
20 |
2000 |
|
J140ZWS-CM02 |
2.2 |
30 |
1000 |
20 |
2500 |
|
J140ZWS-CM03 |
4.5 |
30 |
2000 |
20 |
2500 |
|
J190ZWS-C01 |
15 |
70 |
3000 |
20 |
- |
|
J190ZWS-C02 |
15 |
32.5 |
6000 |
15 |
- |
|
J190ZWS-C03 |
7.5 |
47.7 |
1500 |
20 |
- |
SHINHOM is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Servo Motor products.
