2.Low direct current resistance ,strong resistance to short circuit and good overload;
3.Ability in short time characterizes this input AC reactor .For above class composite insulating materials are used to maintain;
4.Reliable performance of the product under harsh working conditions;the design of the facility is characterized by low magnetic;
5.Flux density ,excellent linearity and strong overload capacity ,Moreover, the cooperation of the design and vacuum pressure;
6.Impregnation process reduces the noise of the reactor which also possesses the advantages of low consumption ,high efficiency of low temperature rise;
7.The iron core employs the cold rolled oriented silicon steel sheet.

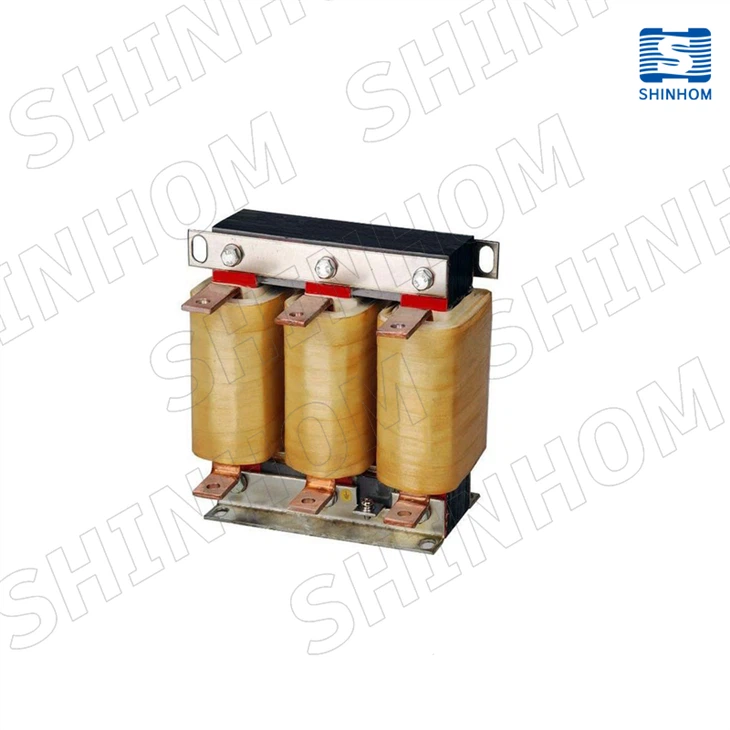

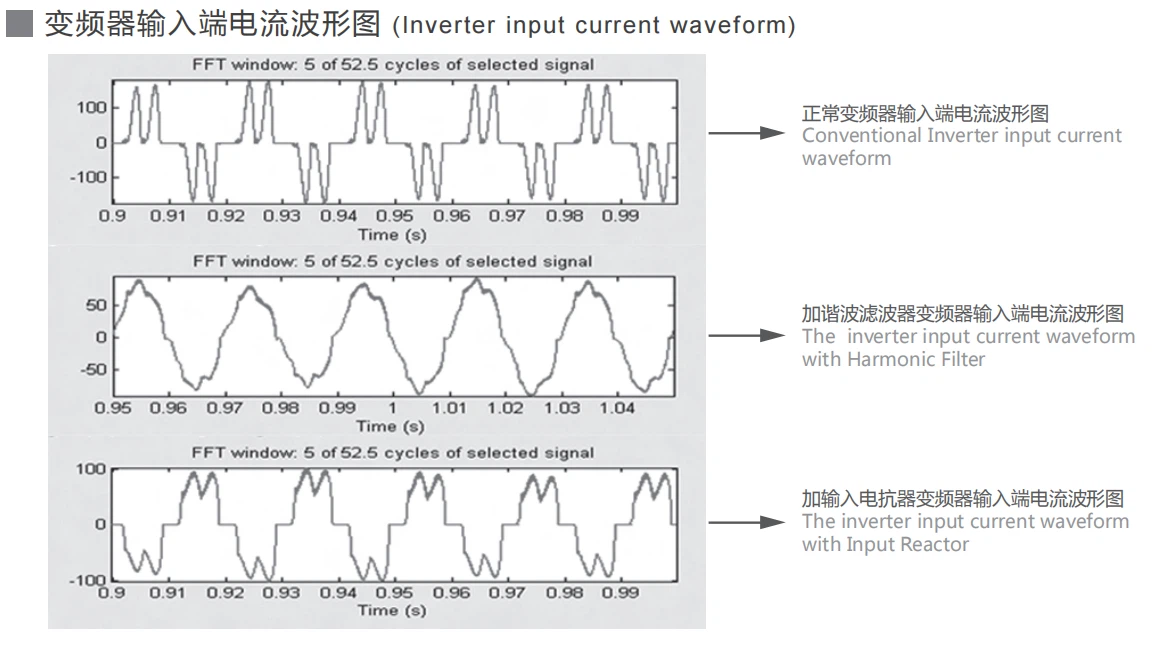

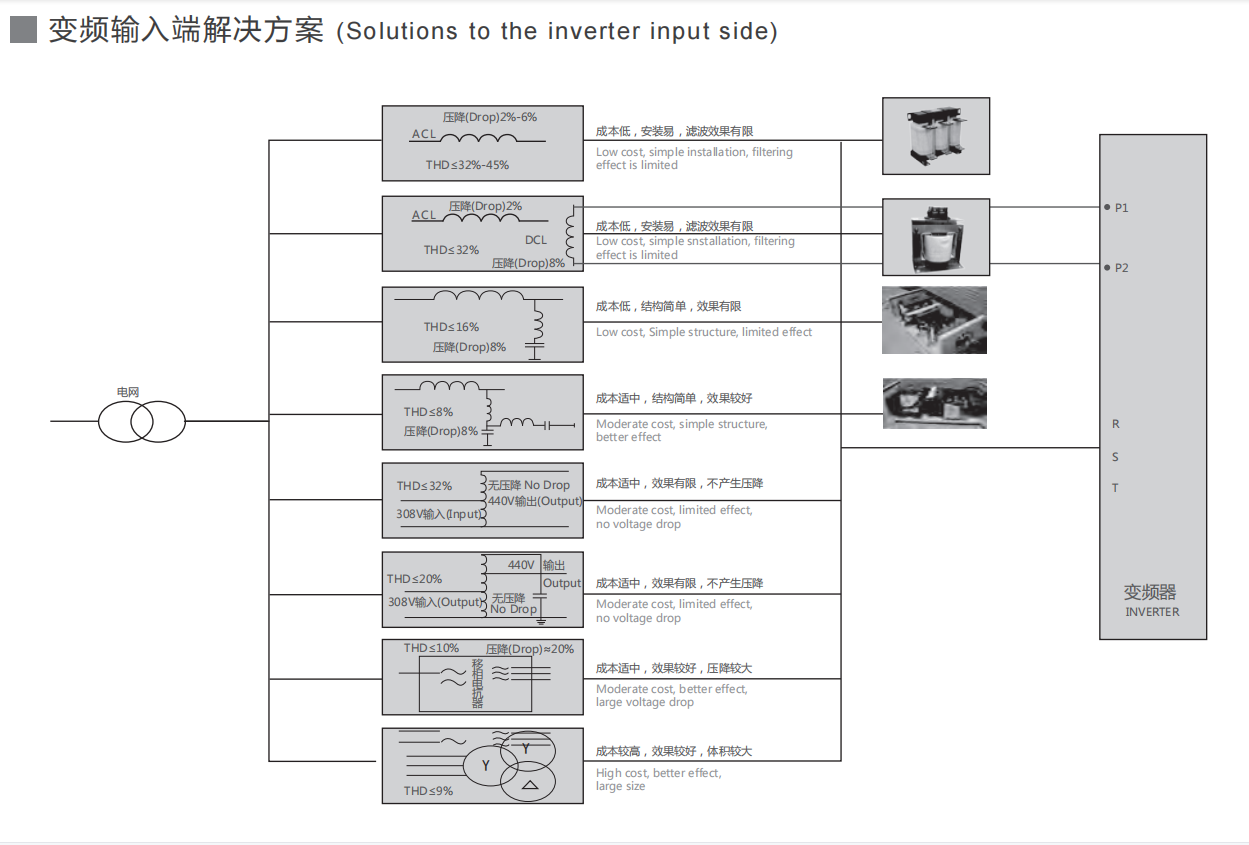

Input AC Reactor is applied at the AC drive input side to suppress inrush voltage, designed to reduce inrush & peak current, improve the real power factor, restrain the grid harmonics and improve the input current waveform.
Output AC Reactor is applied to smoothing the circuit and filter harmonics in order to reduce the transient voltage dt/dv and extend the service life of the electric motors, which reduces the motor noise, eddy loss and leakage current resulting from the output of high harmonics and protects the power switch within the inverters.
FEATURE：
Due to the excellent foil winding structure, Input AC Reactor is characterized by small DC resistance, strong ability to withstand short circuit and
strong short-time overload capability. F Class insulation materials equip the products with reliable performance even in harsh operating
conditions;designed with low magnetic flux density , the reactor is of high linearity and powerful overload capacity. Moreover, combined with VPI
process ,the reactor noise is low; With the core made of grain-oriented cold rolled silicon steel sheets, the reactor boasts high efficiency, low core
loss and low temperature rise.
Different choices of magnetic materials (Silicon steel sheets, ferrite material or amorphous core) are available to match the frequencies of
different application. Due to the excellent foil winding structure, Output AC Reactor is characterized by small DC resistance, strong resistance
to electromagnetic interference and strong short-time overload capability. F Class insulation materials equip the products with reliable
performance even in harsh operating conditions;Designed with low magnetic flux density , the reactor is of high linearity and powerful overload
capacity. Moreover, combined with VPI process,the reactor noise is low.
Shinhom is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Input AC/Output AC Reactor products.
