Balun Transformer,There are several types of Balun, some of which are used for impedance conversion and others for connecting transmission lines with different impedances.
Balun is used in push-pull amplifiers, wideband antennas, balanced mixers, balanced frequency doublers and modulators, phase shifters, and any circuit design that requires equal amplitude transmission over two lines with a phase difference of 180 degrees. The most common use of Balun is to connect unbalanced signals to balanced transmission lines used for long-distance transmission.
Differential signaling using balanced transmission lines is less susceptible to noise and crosstalk, can use lower voltages, and is more cost effective than single-ended signaling using coaxial cables. Thus, Balun can be used as an interface between local video, audio and digital signals and long-distance transmission lines.
Balun's uses include:
- Radio and baseband video
- Radar, transmitter, satellite
- Telephone network, wireless network modem/router

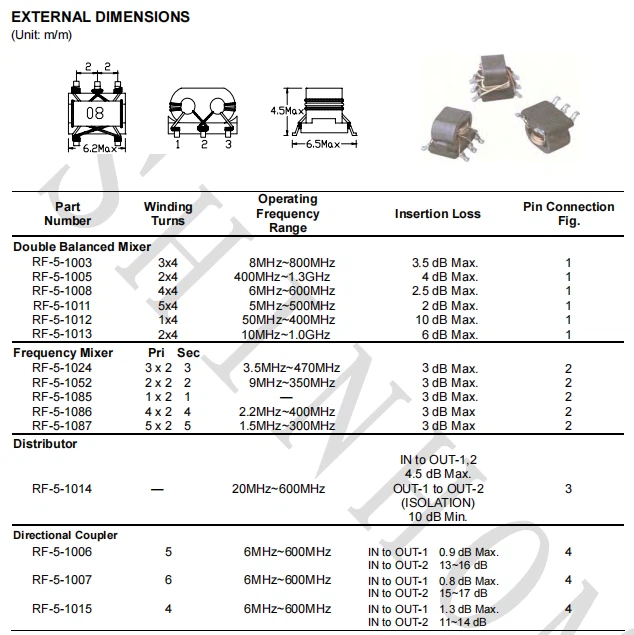

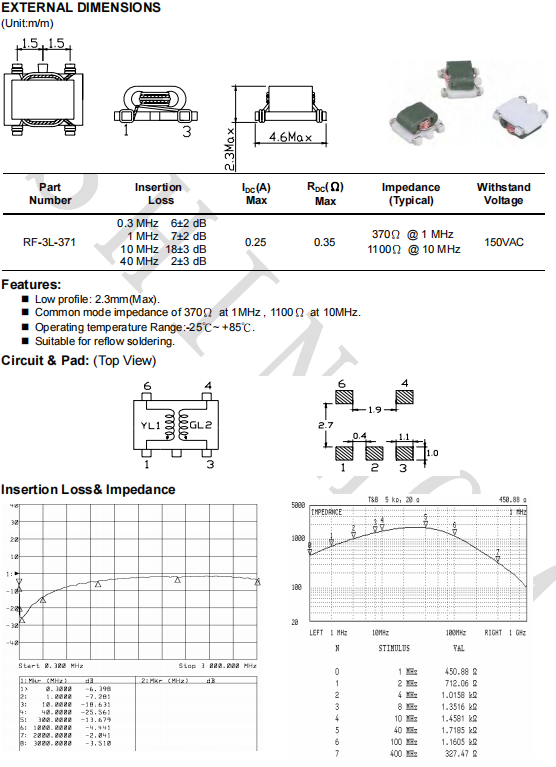

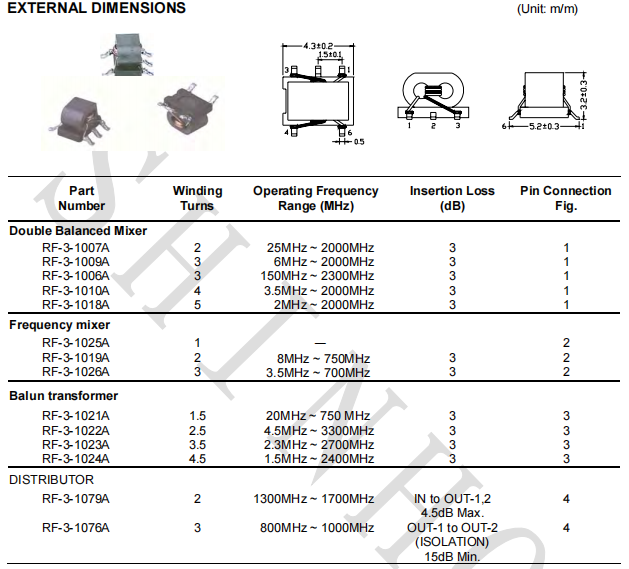

| Product families | 1. LRF ✉ | 2. RF ✉ | 3. RF5S ✉ |
SHINHOM is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Balun Transformer products.
