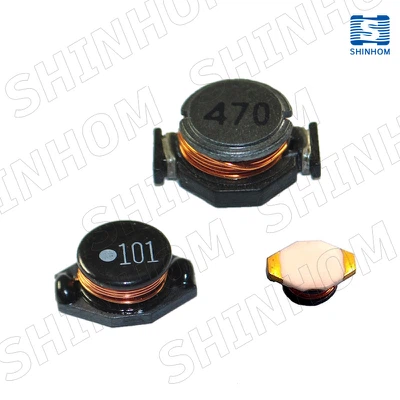

Unshielding Inductor

Unshielding Inductor

1.Various high power inductors are superior to be high saturation for surface mounting;

2.High heat resistance and excellent solderability;

3.Excellent terminal strength construction;

4.Is applicable to a wide range of power supply for VCRs; OA equipment Digital camera, LCD television set notebook PC, portable communication equipments, DC/DC Convertors, etc;

5.Can be OEM according to customer's special requirements;

6.Operating temperature: -55℃ to +125℃.

Unshielding-inductor_.pdf
Product Introduction

The volume of unshielded inductors is generally small, the surface is easy to stick, suitable for fully automated production, according to the different requirements of customers to produce different sizes for customers to choose. Non-shielded inductors have better welding resistance and heat resistance, suitable for general welding and reflow welding, and their cost will be lower than that of shielded inductors

unshielded power inductors with open magnetic constructions provide high saturation current ratings. These are used for general-purpose power choke and power supply applications



FEATURES:

  • Open magnetic path design
  • Cost-effective solution
  • Ferrite core construction
  • High saturation current ratings and low DCR
  • Industry standard footprints
  • AEC-Q200 qualified



Product families 1. AIRD 2. B60/80 3. LCH 4. LCHA 5. LCHB 6. LGA
7. LGB-C 8. LQH 9. RC 10. SDR 11. SDR-T 12. SPI



1.AIRD Family

Through-Hole Radial High Current Power Chokes



FEATURES:product-800-800

  • Low profile power inductorLow DCR leaded power inductor
  • Operating temperature: -20 to 85 degree Celsius
  • Appearance inspection: no external defect by visual inspection
  • Heat endurance of re-flow soldering: 240Insulating resistance: over 100M ohms at 100V DC between wire and core
  • Dielectric strength: no dielectric breakdown at 100V DC for one minute between wire and core
  • Temperature characteristic: inductance coefficient (0 to 2,000) x 10-6/(-25 to +80) inductance deviation within ±5.0%, after 96 hours
  • Humidity characteristic: in 90 to 95% relative humidity at 40 ±2 and one hour drying under normal condition
  • Inductance deviation within ±5.0% after vibration for one hour
  • Vibration resistance: in each of three orientations at sweep vibration (10-55-10Hz) with 1.5mm p-p amplitude



APPLICATIONS:

  • Switching power output and smoothing circuits
  • Used as choke coil for high frequency SMPs
  • Countermeasure against spike ripples
  • DC/DC converters
  • IP and OP devices



Series in this family



Product Series L(µH) DCR Max(Ω) IDC Max(A) PDF
AIRD 01 1.0-560 0.003-0.696 0.8-9.0 ✉
AIRD 02 1.0-2200 0.003-1.54 0.8-11.4 ✉
AIRD 03 1.0-4700 0.003-1.86 1.0-21.0 ✉
AIRD 04 1.8-15000 0.002-3.39 1.3-27.0 ✉
AIRD04A 2.2-3900 0.0028-1.38 1.4-28.2 ✉
AIRD05 1.8-15000 0.002-2.17 2.0-3.5 ✉
AIRD06 4.7-47000 0.002-6.19 1.4-35 ✉
AIRD06A 2.2-10000 0.0021-2.75 1.4-34.7 ✉
AIRD07A 1.0-6800 0.0018-1.854 1.5-44 ✉
AIRD08 5.6-100000 0.0021-6.652 1.4-55 ✉



2.B60/80 Family

SMD Inductors



FEATURES:product-800-800

  • Flame retardant encapsulant (UL 94 V-0)
  • Completely encapsulated winding provides superior environmental protection and moisture resistance
  • High current unit in surface mount package printed with model, inductance value and date code
  • Compatible with infrared or conventional reflow soldering methods
  • Pick and place compatible
  • Operating temperature: -25℃ to +105℃
  • Storage Temperature: -40℃ to +85℃



APPLCATIONS:

  • Excellent power line noise filters
  • Filters for switching regulated power supplies,DC/DC converters
  • SCR and triac controls
  • RFI suppression



Series in this family



Product Series L(µH) DCR Max(Ω) Isat Max(A) PDF
B6010 1.0-6800 0.012-36.9 0.19-18.2 ✉
B6011 1.0-1500 0.013-7.3 0.15-4.1 ✉
B6012 1.0-6800 0.012-36.9 0.19-16.2 ✉
B8020 3.9-100000 0.007-89.7 0.081-15.5 ✉



3.LCH Family

Through-Hole Radial Power Chokes

product-800-800

FEATURES:

  • Axial and radial leaded power inductor
  • UL-polyolefin shrinking tubing
  • Leaded inductor with ferrite core
  • High-current,High-reliability
  • Low-resistance,AC line filters
  • Radial choke inductors
  • Shielded radial choke
  • Wide band chokes
  • Axial lead fixed inductors
  • Available in small, medium and large quantities
  • Ambient temperature -40℃ to +85℃ with (40℃ rise) Irms current
  • Maximum part temperature +125°C
  • Storage temperature Component: -40℃ to +125℃.
  • Tray or tape packaging: -40℃ to +80℃



APPLICATIONS:

  • Signal filtering,EMI and power supply filter
  • DC/DC converters/switching power supplies for small and medium voltage Power supply for LED



Series in this family



Product Series Marking Inductance L(µH) DCR(Ω) IDC(A) PDF
LCH0605 102-220 22-1000 0.18-7.06 0.13-0.90 ✉
LCH0606 102-220 22-1000 0.11-4.45 0.19-1.27 ✉
LCH0805 100-822 10-10000 0.07-55.7 0.081-2.50 ✉
LCH0807 100-822 10-10000 0.05-33.0 0.084-2.90 ✉
LCH0809 100-822 10-47000 0.04-96.4 0.038-2.60 ✉
LCH1010 - 68-18000 0.115-25 - ✉
LCH1006-4W   2.2-1000 0.0085-2.1 0.45-7.9 ✉



4.LCHA Family

Through-hole Axial Ul Tube Power Chokes



FEATURES:

  • Wire-wound Construction
  • Polyolefin Shrink Tubing
  • Excellent Environmental Characteristicsproduct-800-800
  • High Reliability
  • High Inductance and Lower RDC
  • Axial and radial leaded power inductor
  • UL polyolefin shrinking tube
  • Leaded inductor with ferrite core
  • High-current
  • High-reliability
  • Low-resistance
  • Radial choke inductors
  • Axial lead fixed inductors
  • Operating temperature: -55℃ to +125℃



APPLICATIONS:

  • Output smoothly in Power Supply
  • Chopper Control
  • Output smoothly(LPF) in large current digital amplifier
  • Switching Mode Power Supply output smoothing circuit
  • Electromagnetic Interference(EMI) and Radio Frequency Interference(RFI) filers
  • Other oscillation circuits
  • Power Supplies
  • SCR and TRIAC Controls
  • RFI Suppression
  • Filters
  • Switching Regulators



Series in this family



Product Series L(µH) DCR Max(Ω) Isat Max(A) IDC Max(A) PDF
LCHA0410 3.9-10000 0.06-75.0 52-1800 30-1500 ✉
LCHA0617 3.9-18000 0.019-48.3 0.091-7.3 0.039-1.7 ✉
LCHA1122 3.9-100000 0.007-89.7 0.081-15.5 0.065-4.0 ✉
LCHA1425 3.9-150000 0.007-84.3 0.06-47.0 0.070-6.0 ✉





5.LCHB Family

Through-Hole Radial UL Tube Power Chokes

product-800-800

FEATURES:

  • Wire-wound Construction
  • Excellent Environmental Characteristics
  • High Reliability
  • High Inductance and Lower RDC
  • Operating temperature: -55℃ to +125℃
  • Shrink tube: Flame retardant UL type VW-1



APPLICATIONS:

  • Power Supplies, battery Charger, inverter , Convertor
  • EV car, Automotive
  • Home Application
  • Medical
  • Access Control
  • IT Equipment
  • CCTV Security
  • LED Lighting

Series in this family



Product Series L(µH) DCR(Ω) IDC (mA) PDF
LCHB0406 1.0-25000 0.035-180 20-2000 ✉
LCHB0608 3.3-150000 0.016-520 16-3500 ✉
LCHB0707 1.0-1500 0.006-5.0 160-5000 ✉
LCHB0806 22-1000 0.11-4.45 190-1270 ✉
LCHB0807 2.2-1500 0.011-3.5 180-4000 ✉
LCHB0810 3.3-100000 0.012-180 28-5000 ✉
LCHB0912 10-1000 0.027-2.1 450-4500 ✉
LCHB1010 3.3-15000 0.01-24 120-5900 ✉
LCHB1012 10-1000 0.022-1.7 560-5300 ✉
LCHB1016 10-47000 0.031-56 95-5000 ✉
LCHB1018 4.7-100000 0.008-89.7 60-6000 ✉
LCHB1213 10-10000 0.023-10 240-5100 ✉
LCHB1415 10-47000 0.015-27 150-5000 ✉



6.LGA Family

Through-Hole Axial Conformal Coated Inductors



FEATURES:product-800-800

  • Compact design, small and lightweight
  • Contribute to high Q and self-resonant frequencies
  • Coating: epoxy resin ensures humidity resistance for long life
  • Taping type is convenient for automatic equipment
  • Operating temperature: -25℃ to +105℃
  • Storage Temperature: -40℃ to +85℃



APPLICATIONS:

  • Consumer electronics such as VCRs, TVs, audio equipment
  • Mobile communications
  • Portable communication equipment
  • Notebook computers
  • DC/DC converters,etc
  • LCD television





Series in this family



Product Series L(µH) Tolerance(%) Q Min L Test Freq(MHz) S.R.F(MHz) DCR(Ω) IDC (mA) PDF
LGA0204 0.22-220 10-20 35-40 0.796-25.2 3.5-150 0.4-38 24-400 ✉
LGA0305 0.22-270 10-20 35-50 0.796-25.2 2.8-150 0.4-19 65-400 ✉
LGA0307 0.22-1000 10 35-50 0.796-25.2 1.4-150 0.4-33 40-400 ✉
LGA0410 0.22-1000 10-20 30-80 0.796-25.2 1.4-300 0.1-14 100-1400 ✉
LGA0510 470-10000 10 20-60 0.252-0.796 0.35-1.9 7.7-105 25-126 ✉
LGA0512 1.0-33000 - 10-40 0.0796-7.96 0.2-300 0.022-250 8-3800 ✉
LGA0514 1.0-10000 - 10-35 0.0796-7.96 0.4-300 0.022-42 60-3800 ✉
LGA0612 470-10000 10 40-50 0.252-0.796 0.3-2.0 1.9-45.3 60-340 ✉



7.LGB-C Family

Through-Hole Radial Encapsulated Power Inductor



FEATURES:product-800-800

  • Plastic housing
  • Water proof structure Ferrite Core
  • Excellent Mechanical Strength
  • Excellent Solderability
  • High Reliability
  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +105℃



APPLICATIONS:

  • VCRs, PDP, LCD, TV set
  • Automotive Systems
  • Computer Peripheral Equipment
  • GPS, DC/DC convertor, XDSL Modem
  • Electronic Games
  • Communications Equipment
  • General Electronic Applications



Series in this family



Product Series L(µH) Test Freq(KHz) DCR Max(Ω) IDC Max(A) PDF
LGB0709C 1.0-1500 1 0.006-5 0.16-5 ✉
LGB0809C 2.2-1500 1 0.011-3.5 0.21-4 ✉
LGB0810C 22-2000 - 0.05-3.2 0.23-1.3 ✉
LGB1012C 22-2000 - 0.031-1.82 0.39-2.2 ✉
LGB1015C 22-2000 - 0.03-1.90 0.39-2.26 ✉
LGB1112C 3.3-15000 1 0.01-24 0.12-5.9 ✉
LGB1315C 10-100000 1 0.023-10 0..24-5.1 ✉



 8.LQH Family

High Current Surface-Mount Wire-Wound Inductors



FEATURES:product-800-800

  • Ferrite Core
  • High Frequency Design
  • Lower DCR permits High Idc
  • Excellent Q SRF Values
  • Lead free versions
  • RoHS compliant
  • Excellent Thermal Stability
  • Operating Temperature:-25℃ to +85℃
  • Storage Temperature: -55℃ to +125℃





APPLICATIONS:

  • Modems PDP. LCD TVs convertor
  • Mobile Radios DC/DC convertor
  • Cordless Telephones Car radios
  • Global Positioning Systems
  • Wireless Communications Equipment
  • Networking System,xDSL Filter
  • Computer Products and Peripherals



Series in this family



Product Series L(µH) SRF(MHz) DCR Max(Ω) IDC Max(mA) PDF
LQH1008 1.0-100 8.0-100 0.078-7.75 110-300 ✉
LQH1206 1.0-100 7.0-100 0.49-12 45-175 ✉
LQH1210 0.1-390 5.0-200 0.25-22 50-700 ✉
LQH1812 1.0-2200 1.3-120 0.20-50 30-550 ✉
LQH2220 0.12-10000 0.4-450 0.01-140 50-6000 ✉



9.RC Family

Through-Hole High Current Radial Rod Chokes



FEATURES:product-800-800

  • High Saturation Material
  • Polyolefin Shrink Tubing
  • Low DC Resistance
  • High Reliability Low cost
  • Operating temperature: -40℃ to +105℃
  • Storage Temperature: -40℃ to +105℃





APPLICATIONS:

  • Switching Regulators
  • RFI Suppression Filters
  • SCR and TRIAC Controls
  • Automotive Systems







Series in this family



Product Series L(µH) S.R.F(MHz) DCR Max(Ω) IDC Max(A) PDF
RC0205 1.0-1.2 180-200 0.04 0.56 ✉
RC0310 1.8-4.7 90-160 0.026-0.07 0.76-1.90 ✉
RC0415 4.7-10 70-90 0.024-0.08 1.0-2.26 ✉
RC0520 10-27 36-60 0.04-0.15 1.0-2.65 ✉
RC0630 4.7-56 30-85 0.005-0.14 1.57-16.08 ✉



10.SDR Family

High Current Surface-mount Power Inductors



FEATURES:product-800-800

  • Low cost design general Purpose inductor
  • High Saturation current
  • Easy construction that uses Ferrite rod cores









APPLICATIONS:

  • Switching Regulators
  • Automotive Systems
  • Power Amplifiers
  • Power Supplies
  • EMI/RFI suppression
  • DC line Filters

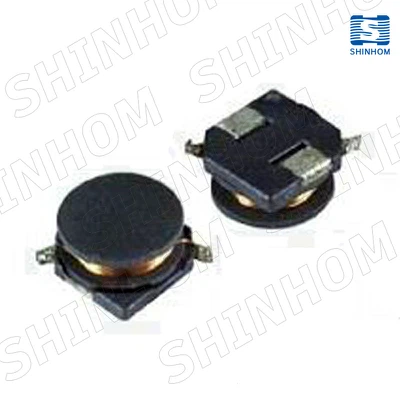

11.SDR-T Family

Magnetic Shielded Surface-Mount Power Inductors



FEATURES:product-800-800

  • Low DC Resistance
  • Large current
  • Excellent Mechanical Strength
  • High Reliability and Excellent Solderability
  • Low and square Profile
  • High heat resistance





APPLICATIONS:

  • VCRs, Notebook, DC/DC Converters
  • Video Digital Cameras
  • Communication System
  • Automotive Systems Power supplier
  • LCD PDP Televisions
  • Hard Disk Drives, Topset, XDSL
  • Network Systems
  • Computer Peripheral Equipment

Series in this family

Product Series L(µH) Test Freq(KHz) DCR Max(Ω) IDC Max(A) PDF
SDR0703T 1.0-1000 100 0.02-6.2 0.15-3.6 ✉
SDR0704T 10-1000 100 0.12-6.22 0.17-1.5 ✉
SDR1030T 2.7-1000 0.796-7.96 0.028-4.7 0.2-3.0 ✉
SDR1045T 2.7-1000 0.252-7.96 0.026-4.7 0.38-4.8 ✉
SDR1305T 2.5-1000 0.252-7.96 0.0098-2.35 0.46-7.2 ✉
SDR1308T 10-1200 0.252-2.52 0.036-1.92 0.38-4.05 ✉
SDR7030T 1.0-1000 0.796-7.96 0.022-6.2 0.15-3.0 ✉
SDR7045T 1.0-1000 0.252-7.96 0.022-4.0 0.22-3.8 ✉


12.SPI Family

Surface-Mount Power Inductors



FEATURES:product-800-800

  • Ceramic/Ferrite/plastic base optional
  • High Frequency Design
  • Excellent Q Values
  • Excellent SRF
  • Excellent Thermal Stability
  • Low profile
  • Small Foot Print



APPLCATIONS:

  • Modems
  • Mobile Radios
  • Cordless Telephones
  • Global Positioning Systems
  • Wireless Communications Equipment
  • Networking System,xDSL Filter
  • Computer Products and Peripherals

Series in this family

Product Series L(µH) DCR Max(Ω) IDC Max(A) PDF
SPI0402T 1.0-1000 0.05-12 0.1-2.9 ✉
SPI0605HC 0.47-100 0.0097-1.109 0.47-6.0 ✉
SPI0802T 10-1000 0.09-7.0 0.1-2.4 ✉
SPI0804T 1.0-1000 0.009-3.0 0.3-9.0 ✉
SPI0810T 10-1000 0.033-2.0 0.80-8.0 ✉
SPI1006HC 0.47-100 0.0049-0.2707 0.95-11.4 ✉
SPI1306HC 0.47-100 1.4-16.0 1.4-16.0 ✉
SPI1306T 1.0-1000 0.011-1.8 1.0-20.0 ✉
SPI1608HC 0.47-100 0.0019-0.17 3.6-51.7 ✉



Shinhom is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our Unshielded Inductors products.

Hot Tags: unshielding inductor, China unshielding inductor manufacturers, suppliers, factory, Unshielding Inductor, SMD Inductor, Shielding Inductor, Molded Inductors, SMD Coupled Inductor, Toroidal Choke

Send Inquiry

You Might Also Like

whatsapp

Phone

E-mail

Inquiry

Bag
