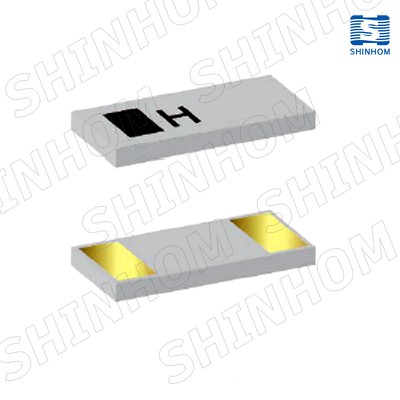

SMD Ceramic Chip Antenna refers to a type of antenna that is designed as a surface mount device (SMD) and constructed using ceramic materials. It is a compact and integrated antenna solution used in wireless communication applications.
Unlike traditional antennas that may have external wires or protruding elements, SMD ceramic chip antennas are designed to be directly soldered onto the circuit board, eliminating the need for additional connectors or bulky external components. They are manufactured using ceramic materials due to their favorable electrical properties, durability, and manufacturability.
The design and construction of SMD ceramic chip antennas allow them to operate over a wide range of frequencies, typically ranging from a few hundred megahertz (MHz) up to several gigahertz (GHz), depending on the specific model. This makes them suitable for various wireless communication protocols such as Wi-Fi, Bluetooth, cellular networks, GPS, RFID, and many others.
SMD ceramic chip antennas are available in different shapes and sizes, including rectangular, square, or even custom designs, to meet the specific requirements of different applications.
These antennas are designed to provide reliable signal reception and transmission by optimizing radiation efficiency, gain, and impedance matching. They undergo extensive testing and tuning during the manufacturing process to ensure consistent and high-performance operation.
FEATURE:
Small size
Thin profile
High performance
High Reliability

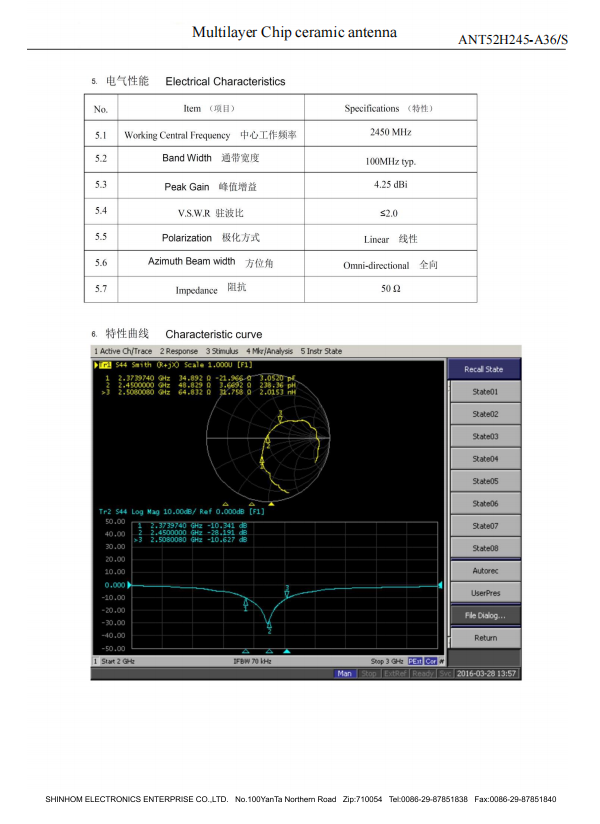

| Product families | 1. Chip Antenna ✉ | 2. ANT52H2450-A36-S ✉ |
Shinhom is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our SMD ceramic chip antenna products.
