Overview

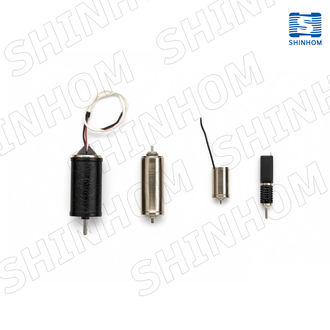

This DC brushed coreless cup motor is manufactured with an ironless rotor and coreless cup-type rotor structure, specifically designed for medical devices and industrial automation, ensuring fast response, excellent motor performance, and reliable operation.The product features a robust and reliable structure with lightweight construction and greatly reduced moment of inertia. It withstands high and low temperatures.It is suitable for medical devices, industrial automation, and aerospace. It is an ideal choice for coreless cup motor applications in precision control and drive systems.
Features
- Series model – SYK series
- Ironless rotor, coreless cup type
- Eliminates iron core eddy current power loss
- Significantly reduced weight and moment of inertia
- High and low temperature resistance, reduced mechanical energy loss
- Smaller frame size for superior motor performance
- Fast response
- Compact frame size
- Multiple speed and torque models available
- Rated voltage – 6V to 48V
Application
- Medical devices
- Industrial automation
- Aerospace
- Robotics
- Consumer electronics
- Military equipment
- High-tech fields
- Civilian products
Technical Data
|
Product Model |
Rated Voltage (V) |
Rated Current (A) |
Rated Speed (r/min) |
Rated Torque (mNm) |
Weight (g) |
|
J14SYK01 |
12 |
≤0.75 |
7400 |
≥7 |
≤30 |
|
J14SYK02 |
12 |
≤0.75 |
22400 |
≥2.5 |
≤30 |
|
J16SYK01 |
24 |
≤0.75 |
11000 |
≥12 |
≤45 |
|
J17SYK01 |
12 |
≤0.25 |
4600 |
≥3.2 |
≤40 |
|
J19SYK01 |
24 |
≤0.75 |
10700 |
≥11 |
≤50 |
|
J20SYK01 |
6 |
≤0.12 |
3000 |
≥10 |
≤55 |
|
J22SYK01 |
12 |
≤0.4 |
5300 |
≥3.9 |
≤65 |
|
J22SYK02 |
24 |
≤0.9 |
11000 |
≥12 |
≤75 |
|
J22SYK03 |
36 |
≤1.9 |
10600 |
≥26.5 |
≤75 |
|
J25SYK01 |
24 |
≤1.8 |
9700 |
≥31 |
≤110 |
|
J30SYK01 |
24 |
≤3.8 |
8100 |
≥85 |
≤245 |
|
J30SYK02 |
48 |
≤1.9 |
7750 |
≥92 |
≤260 |
|
J35SYK01 |
24 |
≤4 |
7000 |
≥105 |
≤350 |
|
J40SYK01 |
24 |
≤7 |
7030 |
≥181 |
≤450 |
FAQ
Q: How do you control quality?
A: We ensure every product meets specifications through incoming quality inspection (IQC) and 100% quality testing before shipment.
Q: How to apply for samples? What is the lead time?
A: You can submit a sample application through our website or email. Samples are free of charge and will be shipped within 3-5 working days. Mass order lead time is generally 2-8 weeks; custom products will be confirmed separately.
Q: What are the voltage and speed ranges of the SYK series coreless cup motor?
A: The series has a rated voltage range of 6V to 48V, a rated speed range of 3000 to 22400 r/min, and a rated torque range of ≥2.5 to ≥181 mNm. Weight range is ≤30g to ≤450g. Multiple models are available to meet different speed and torque requirements.
Q: What is the significance of the coreless cup rotor structure for motor performance?
A: The coreless cup rotor structure completely eliminates power loss caused by iron core eddy currents. Weight and moment of inertia are greatly reduced, and it withstands high and low temperatures while reducing the rotor's own mechanical energy loss. It achieves superior motor performance in a smaller frame, and its fast response makes it suitable for precision control applications.
SHINHOM is dedicated to setting a high bar of excellence for industries that integrate or utilize magnetics technologies in our DC Brushed Coreless Cup Motor products.
